Note!
There are 2 jacks : the lower jack (A) for the Present Sensor, the upper jack (B) for the cutter.
10. Close the cover of the module connection jacks on the bottom of the printer.
11. Turn back the printer into operating position.
Loading Label Roll with the Cutter
1. Open the printer and load the label roll 4.3 on page 15.
910
1051 2

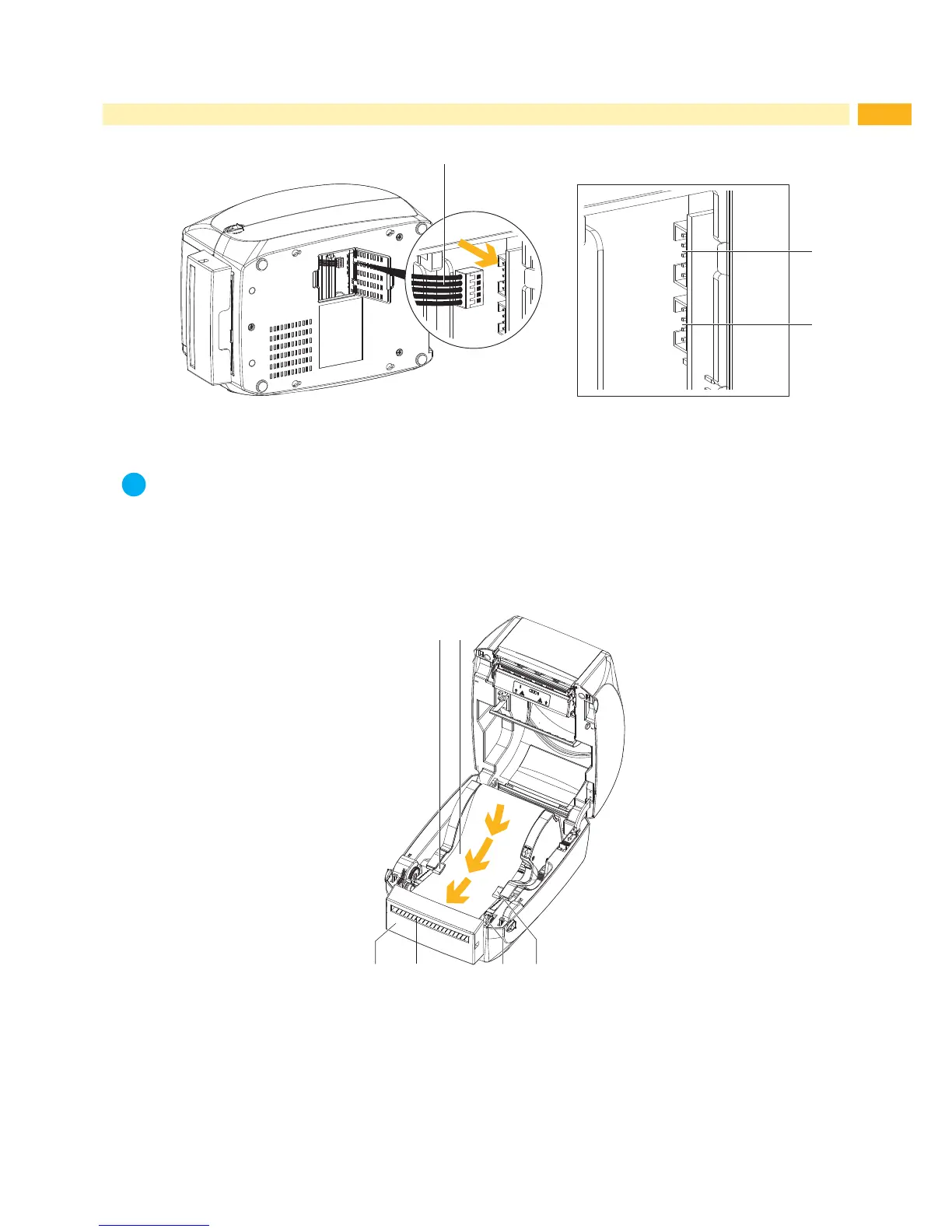

Fig. 41 Loading label roll
2. Feed the label stock (9) on both sides through the label guides (10).
3. Pull the label stock (9) over the platen (5) and through the feed-out (2) slot of the cutter (1).
4. Release catch for closing the printer cover and close the printer.
