CAB MACH4 User Manual

10
11
4.1 Loading Label Rolls
4.1.1 Adapting the Roll Hub
Label rolls are supplied with different diameters. The roll hub can hold label rolls with a core diameter of 38 - 75 mm,
or 76 mm with the detachable adapters tted.
1 2 3

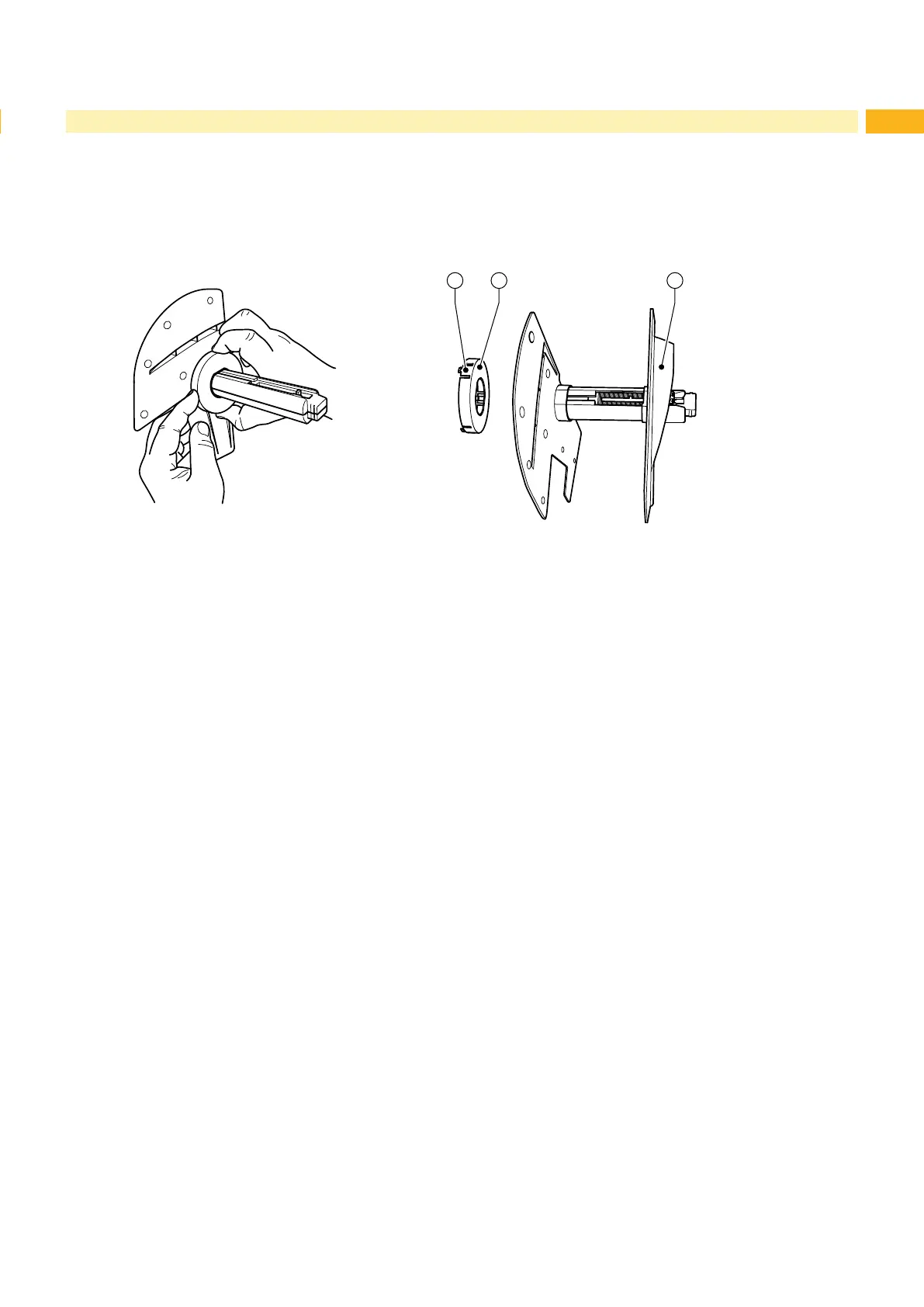

Fig. 3 Roll hub with and without adapter
Dismounting the adapter
 Open the cover and remove the roll hub (10 - g. 1) from the printer.
 Remove the edge stop (3),  4.1.2 on page 12, press the adapter (2) in at the three pressure points (1), as shown
in the gure, and remove it.
Mounting the adapter
Push the adapter (2) on until it slots into place.
4 Loading Material

CAB MACH4 Specifications

General

Print Technology	Thermal transfer
Print Resolution	300 dpi
Max Print Width	104 mm
Power Supply	100 - 240 V AC, 50/60 Hz
Display	LCD with backlight
Interfaces	USB, Ethernet
Label Width Range	25 mm - 116 mm
Supported Barcode Types	Data Matrix, QR Code
Supported Operating Systems	Windows, Linux
