CAB MACH4 User Manual

24 24
8 Media
8.1 Media Dimensions
Labels Endless material

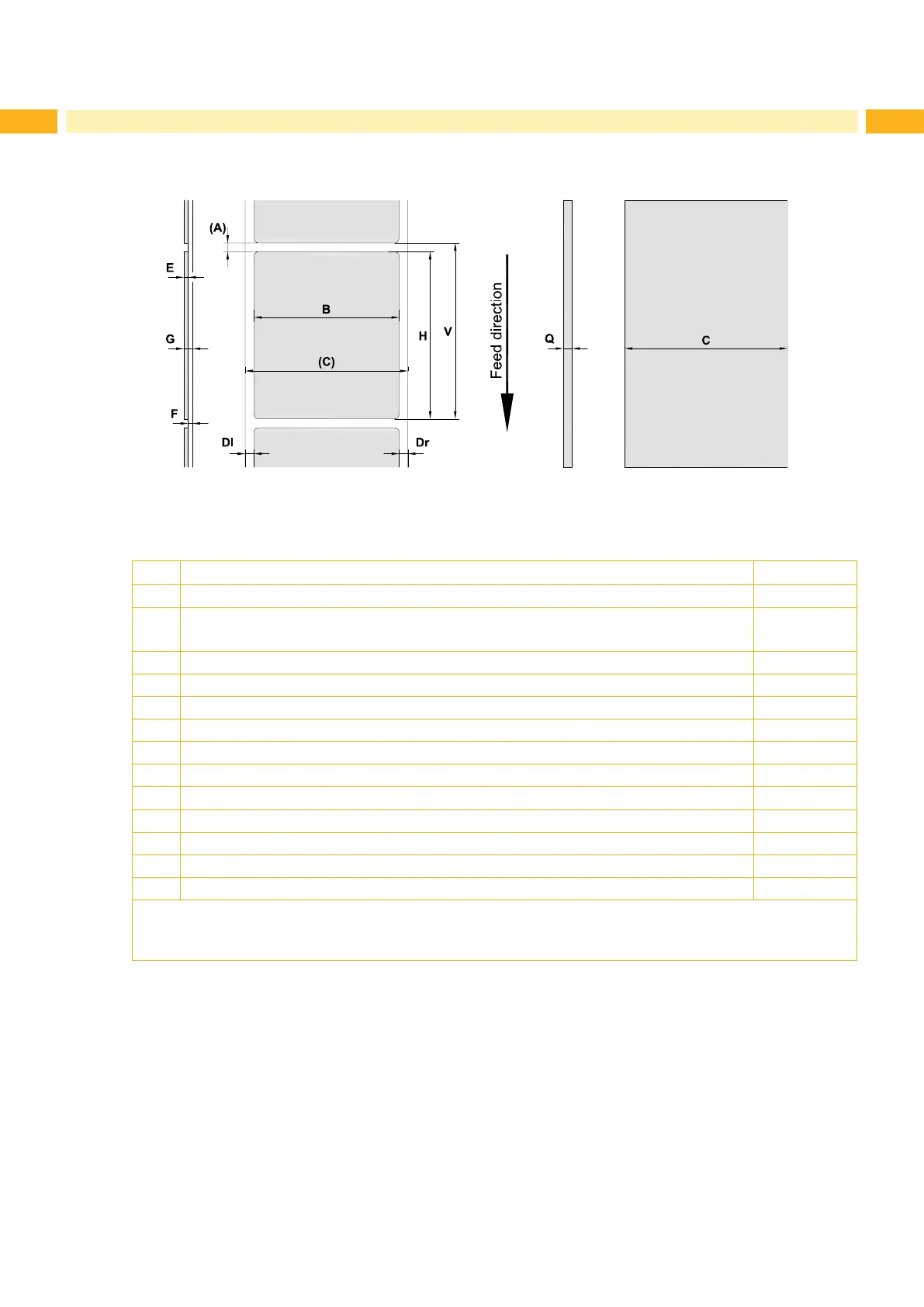

Fig. 11 Label / endless material dimensions
Dim. Designation Dim. in mm
B Label width 6 - 116
H Label height
in peel-off mode
5 - 1000
20 - 200
- Tear-off length > 30
- Cut length > 12
A Label distance > 2
C Width of liner or endless material 25 - 120
Dl Left margin ≥ 0
Dr Right margin ≥ 0
E Label thickness 0,025 - 0,7
F Liner thickness 0,03 - 0,1
G Thickness label with liner 0,055 - 0,8
Q Thickness endless material 0,03 - 0,8
V Label feed > 7
• Small label sizes, thin materials or strong glue can lead to limitations.
Critical applications need to be tested and cleared.
• Note the bending stiffness ! Material must be exible to follow the radius of the print roller !
Table 8 Label / endless material dimensions

CAB MACH4 Specifications

General

Print Technology	Thermal transfer
Print Resolution	300 dpi
Max Print Width	104 mm
Power Supply	100 - 240 V AC, 50/60 Hz
Display	LCD with backlight
Interfaces	USB, Ethernet
Label Width Range	25 mm - 116 mm
Supported Barcode Types	Data Matrix, QR Code
Supported Operating Systems	Windows, Linux
