8 Media
8.4 Cut-out Mark Dimensions
Labels with cut-out marks Endless material with cut-out marks
for marginal cut-out marks
minimum liner thickness 0,06 mm

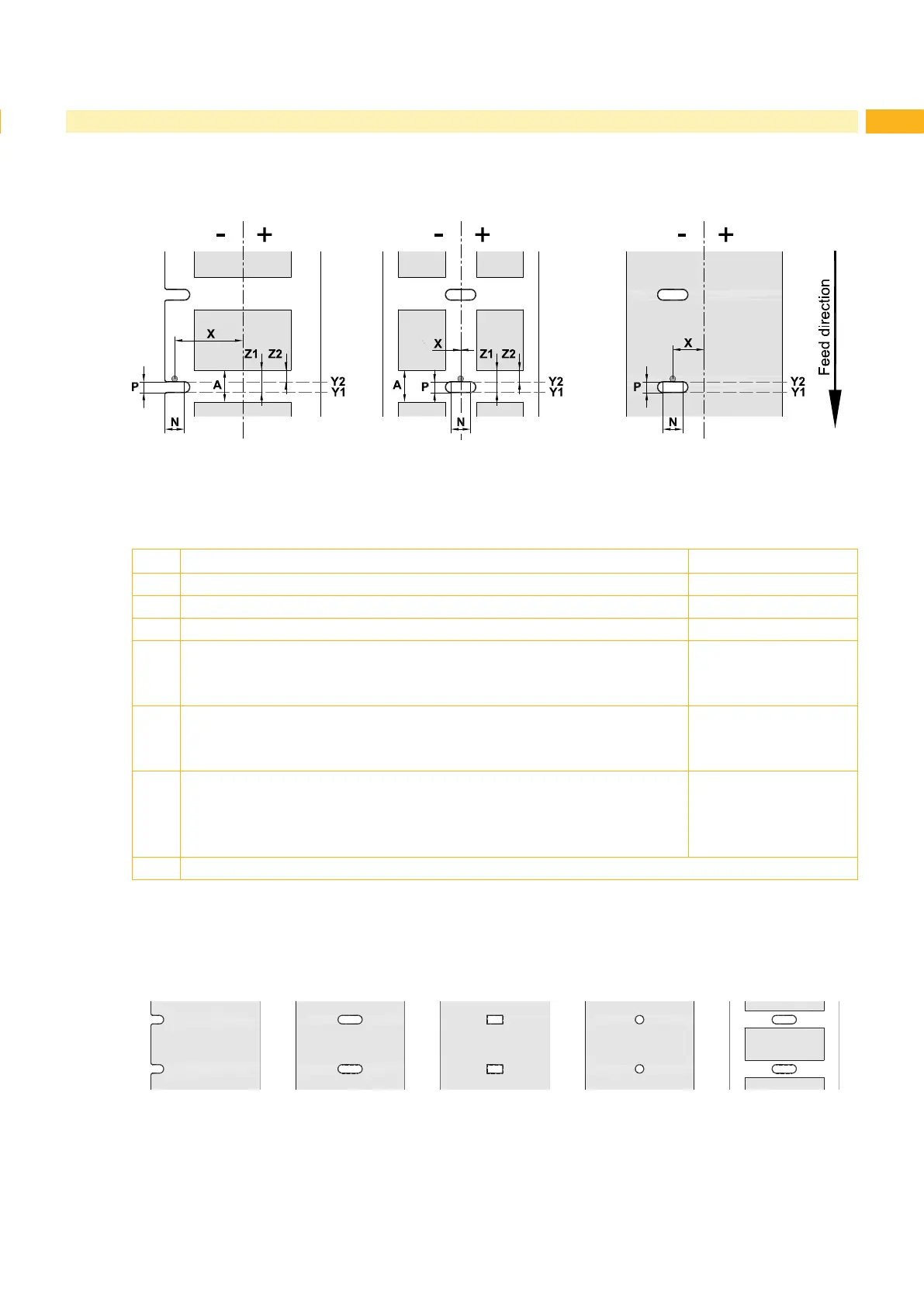

Fig. 14 Cut-out mark dimensions
Dim. Designation Dim. in mm
A Label distance > 2
N Width of cut-out mark > 5
P Height of cut-out mark 2 - 10
X Distance mark - middle of paper track
for gap sensor recognition
for reective sensor recognition
-10 or 0
-56 up to +10
Y1
Y2
Sensor recognized virtual label front edge
with reective sensor recognition
1)
with gap sensor recognition
Front edge cut-out
Rear edge cut-out
Z1
Z2
Distance recognized front edge - actual label front edge
with reective sensor recognition
with gap sensor recognition using transparent labels
 Adjust software settings
P up to A
0 up to A-P
1)
Backside of the material must be sufciently reective.
Table 11 Cut-out mark dimensions
Marginal cut-out Long hole cut-out Rectangular cut-out Circular cut-out
Not recommended !
Cut-out
between the labels
Not recommended !
Fig. 15 Samples for cut-out marks
