8.2 Device Dimensions

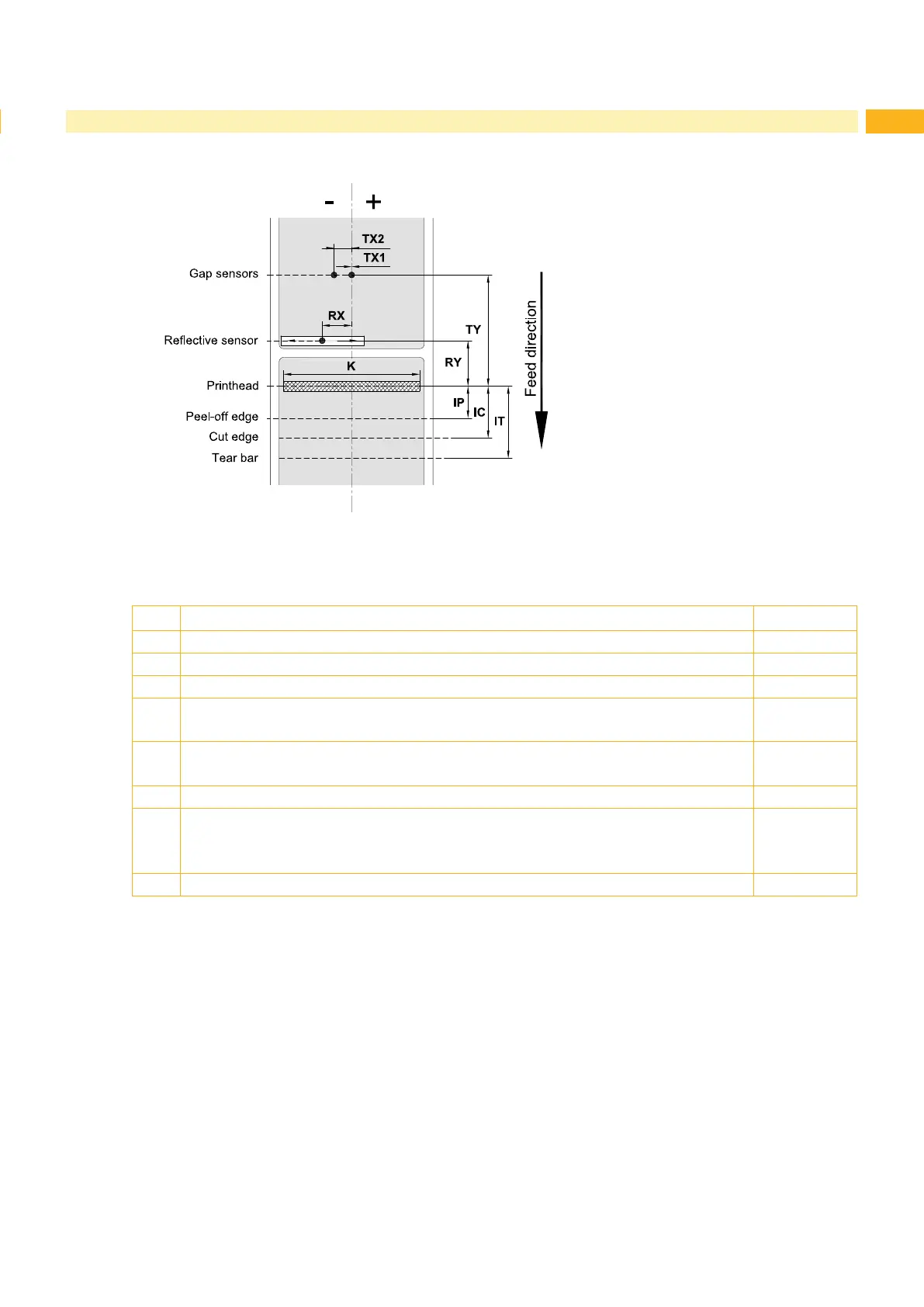

Fig. 12 Device dimensions
Dim. Designation Dim. in mm
IP Distance printhead - peel-off edge 13,2
IC Distance printhead - cut edge 16,0
IT Distance printhead - tear bar 22,7
K Print width with printhead 203 dpi
Print width with printhead 300, 600 dpi
104,0
105,6
RX Distance reective sensor - middle of paper track
i.e. permissible distance of reex or cut-out marks from the middle of the material
-56 - +10
RY Distance reective sensor - printhead 22,1
TX Distance gap sensor - middle of paper track
TX1 : Sensor for single and multi-lane labels with an odd number of lanes.
TX2 : Sensor for multi-lane labels with an even number of lanes.
-10
0
TY Distance gap sensor - printhead 62,6
Table 9 Device dimensions
