CAB MACH4 User Manual

26 26
8 Media
8.3 Reex Mark Dimensions
Labels with reex marks Endless material with reex marks

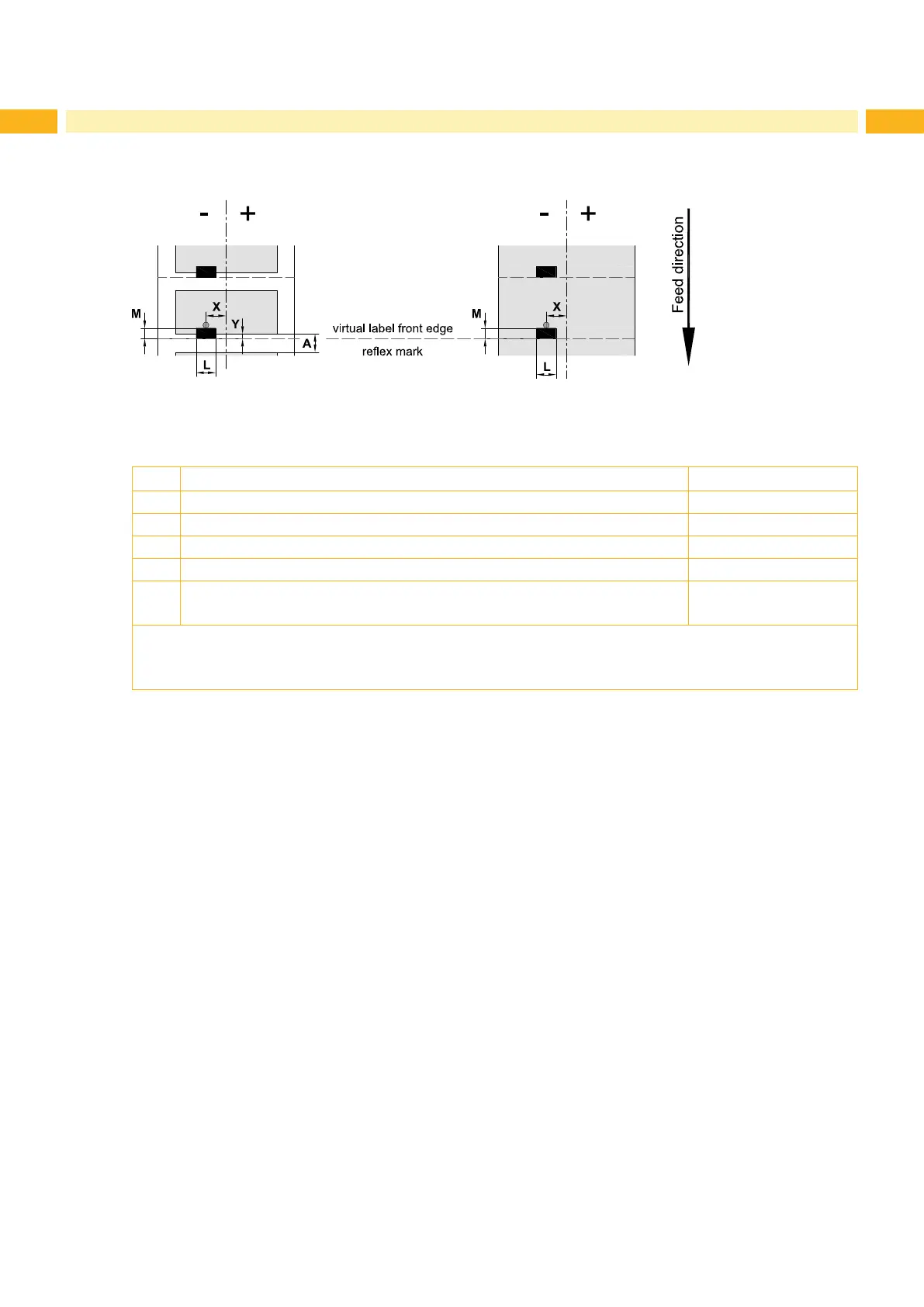

Fig. 13 Reex mark dimensions
Dim. Designation Dim. in mm
A Label distance > 2
L Width of reex mark > 5
M Height of reex mark 3 - 10
X Distance mark - middle of paper track for reective sensor recognition -56 up to +10
Z Distance virtual label front edge - actual label front edge
 Adjust software settings
0 up to A / recomm. : 0
• Reex marks must be on the back side of the material (liner).
• Specication is valid for black marks.
• Recognition of colored marks may fail.  Preliminary tests are needed.
Table 10 Reex mark dimensions

CAB MACH4 Specifications

General

Print Technology	Thermal transfer
Print Resolution	300 dpi
Max Print Width	104 mm
Power Supply	100 - 240 V AC, 50/60 Hz
Display	LCD with backlight
Interfaces	USB, Ethernet
Label Width Range	25 mm - 116 mm
Supported Barcode Types	Data Matrix, QR Code
Supported Operating Systems	Windows, Linux
