2.1 Device Overview

pause

cancel

feed

Bereit

pause

cancel

feed

1917 18

1 2 3 4 5 6 7 8

1213

141516

1011

View A

View B

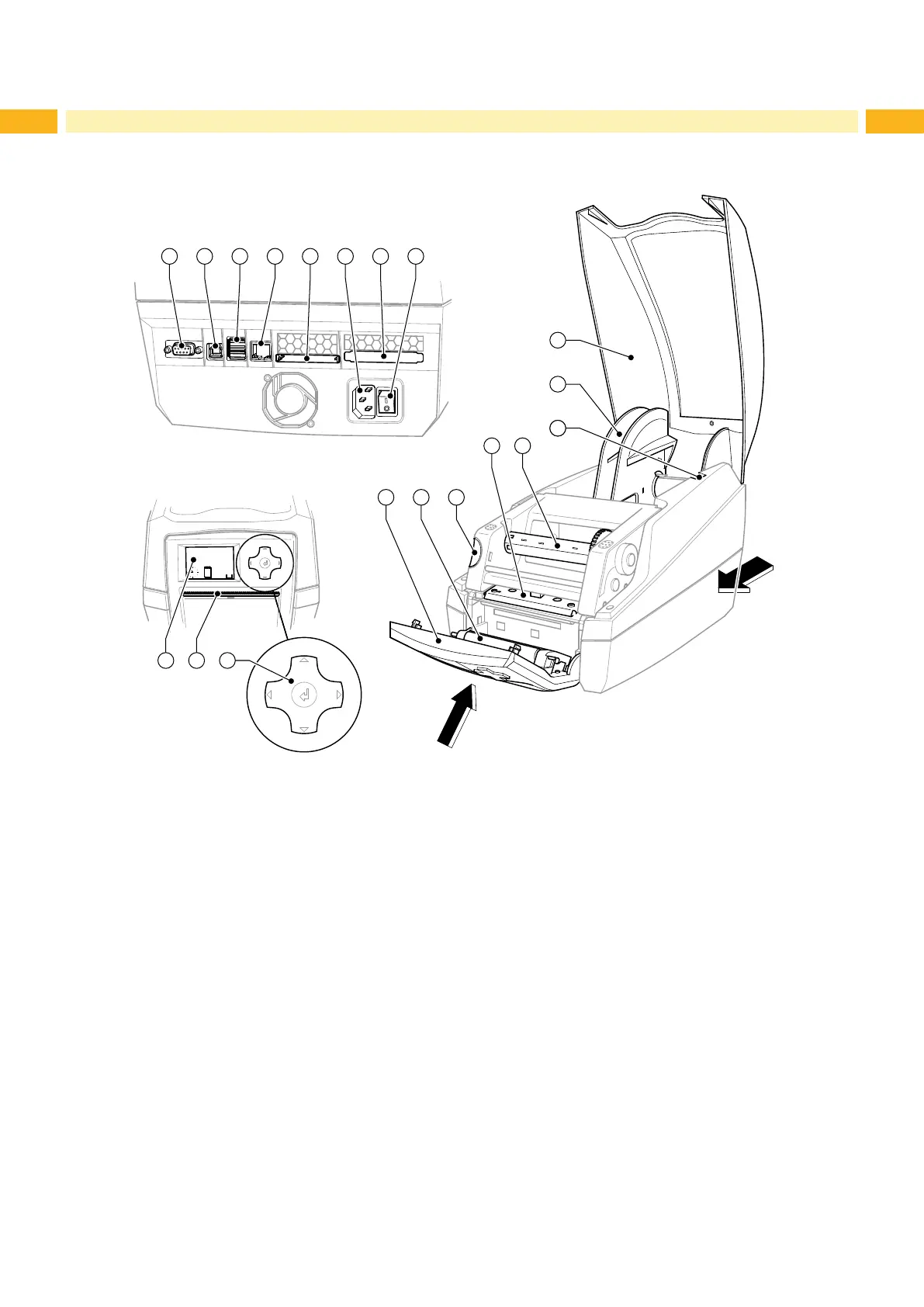

Fig. 1 Overview

1 RS-232 serial interface

2 USB 2.0 High Speed Slave interface

3 Two USB master interfaces for keyboard and

scanner

4 Ethernet 10/100 Base T interface

5 CompactFlash card slot

6 Power supply socket

7 PC card slot, type II

8 Power switch

9 Cover

10 Roll hub

11 Holder slots

12 Ribbon rewind hub

13 Printhead mounting with printhead

14 Release button of the print module

15 Pressure roller

16 Control panel

17 Graphic display

18 Label outlet in the control panel

19 Navigator pad

2 Installation
