3.1 Structure of the Control Panel
The user can control the operation of the printer with the control panel, for example:
• Issuing, interrupting, continuing and canceling print jobs,
• Setting printing parameters, e.g. heat level of the printhead, print speed, interface conguration, language and
time of day ( Conguration Manual),
• Start the test functions ( Conguration Manual and  Service Manual),
• Control stand-alone operation with a memory module ( Conguration Manual),
• Update the rmware ( Conguration Manual).
Many functions and settings can also be controlled by software applications or by direct programming with a
computer using the printer’s own commands.  Programming Manual for details.
Settings made on the control panel make the basic settings of the label printer.
i
Notice!
It is advantageous, whenever possible, to make adaptations to various print jobs in the software.
pause
menu
cancel
feed
Bereit
6
1 2

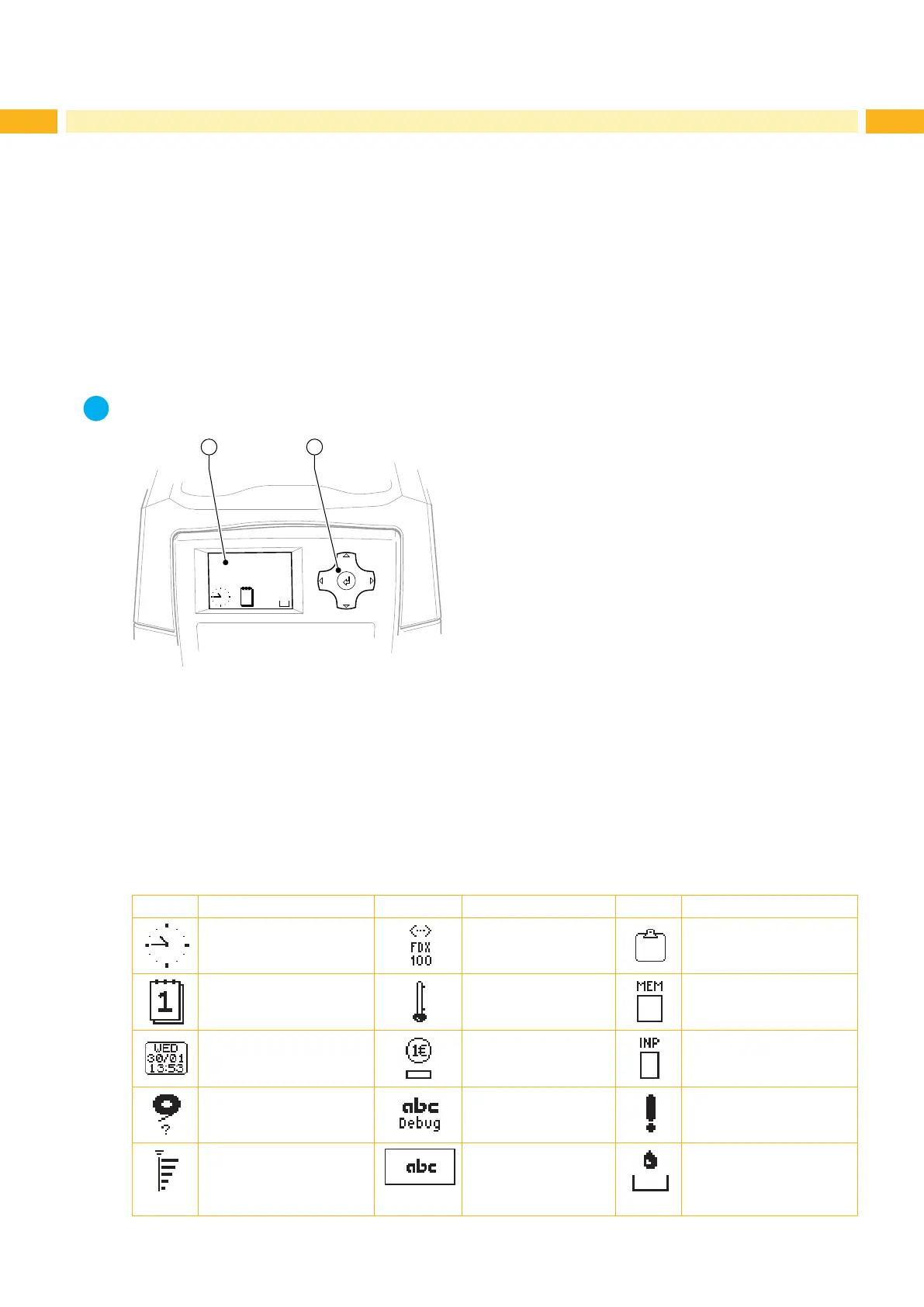

Fig. 2 Control Panel
The control panel consists of a graphic display (1) and the navigator pad (2) with ve integrated keys.
The graphic display indicates the current status of the printer and the print job, indicates faults and shows the printer
settings in the menu.
3.2 Symbol Displays
The symbols shown in the following table may appear in the status line of the display, depending on the printer
conguration. They enable the current printer status to be seen quickly.
For the conguration of the status line  Conguration Manual.
Symbol Description Symbol Description Symbol Description
Clock Ethernet link status User memory in the clock
circuit
Date sheet Temperature of the
printhead
Used memory
Date/time digital PPP funds Input buffer
Ribbon supply Debug window for abc
programs
Access to memory card
Wi-Fi signal strength Control of the lower
display line is handed
over to an abc
program
Printer is receiving data
Table 1 Symbol displays
