5.8 MOUNTING THE PRETTY AIRTIGHT SIDE PANELS
METAL
• Place the coloured panel on a surface (see Fig. 44) and with the help of clamps, lift all tabs (see Fig. 45).
• Hook the panel into the appropriate seats (see Fig. 46).
• NB: the 2 opposite tabs are used to lock the panel.

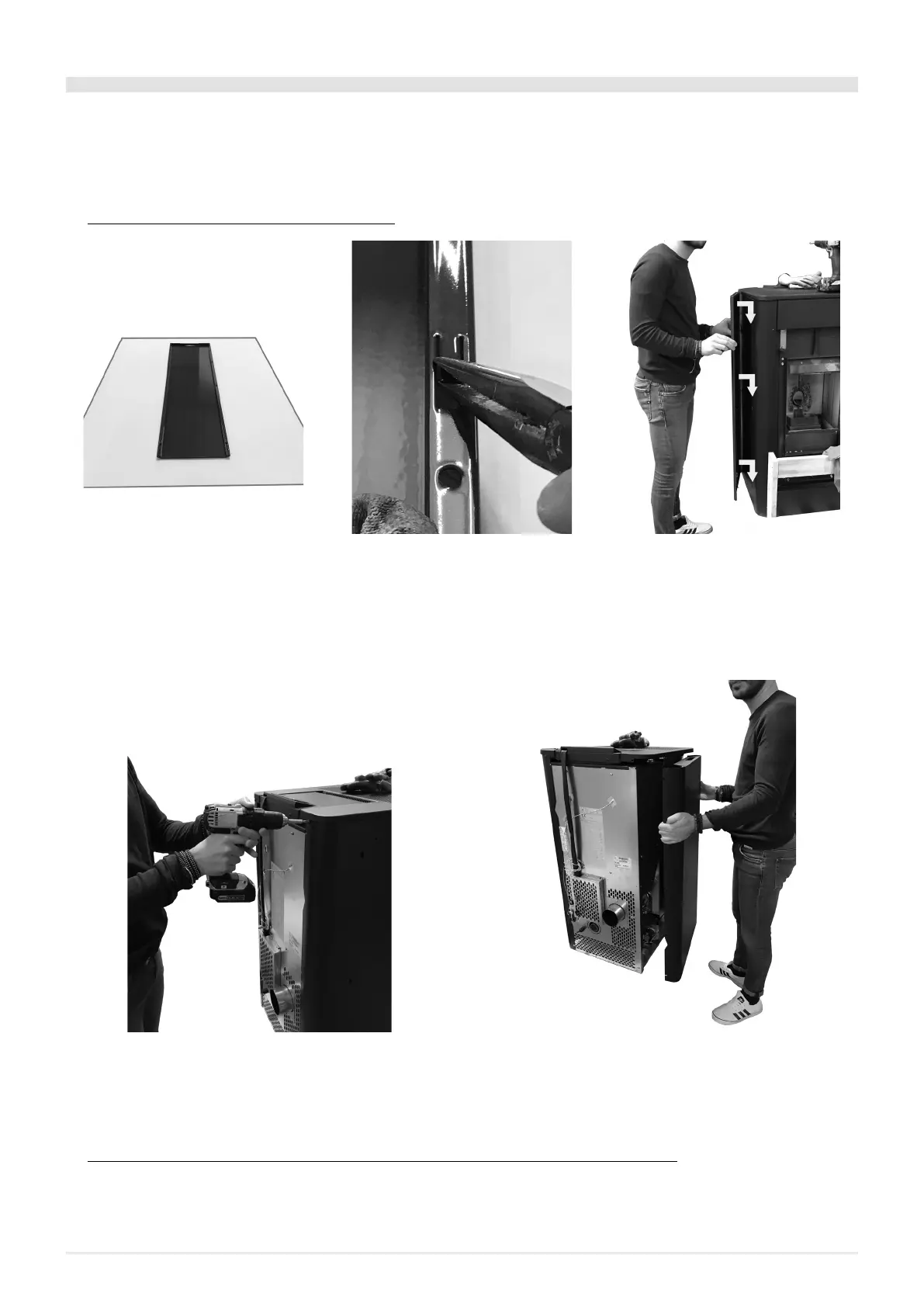

Fig. 44 - Coloured panel Fig. 45 - Fold tabs Fig. 46 - Slide the panel on
MAJOLICA AND STONE
• Remove the door (see STOVE DOOR REMOVAL/INSTALLATION a pag. 22).
• Loosen the rear and front screws of the side panel (see Fig. 47) and remove it (see Fig. 48).
Fig. 47 - Remove the screws Fig. 48 - Removing the side panel
• Place the tiles or the stone facedown on a surface (see Fig. 49).
• Position the previously removed panel over the finish at the fixing holes and tighten the screws (see Fig. 50).
• Reposition the panel with the finish to the stove.
• Reposition the door.
• NB: the help of a second person when installing the majolica and stone panels is recommended.
