Cadel KRISS3 - 5.12 Verve Airtight Side Panel Disassembly; Shell 3 up Coating Removal

KRISS
3
- TECNA
3
- EVO
3
- ELISE
3
- SHELL
3
- CRISTAL
3
- GLASS - VERVE AT - PRETTY AT - TITANIA AT - VENERE AT - BREEZE AT
28

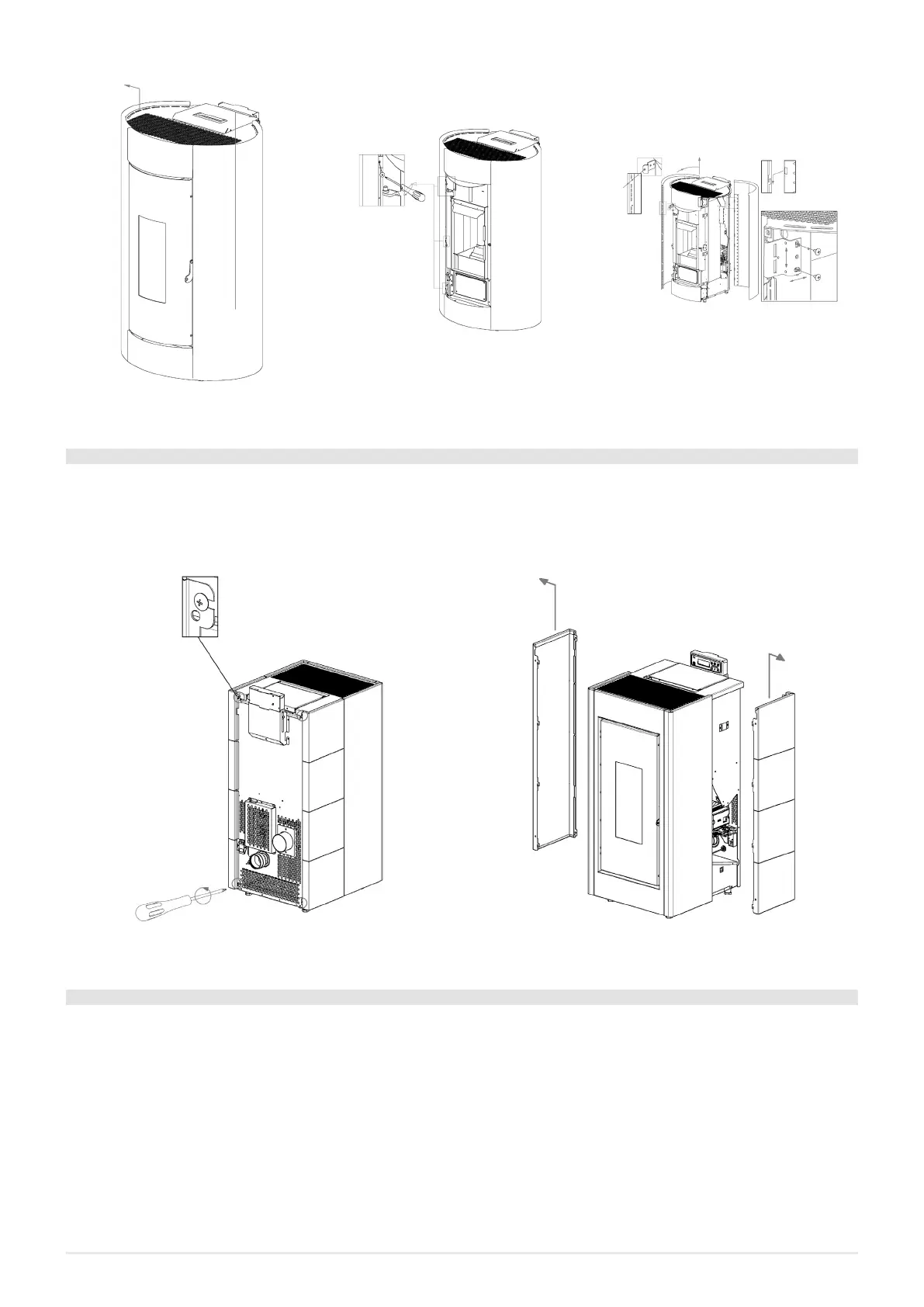

Fig. 58 - Remove side panels Fig. 59 - Locking teeth Fig. 60 - Adjustments
5.12 VERVE AIRTIGHT SIDE PANEL DISASSEMBLY
To access the internal stove parts, disassemble the side panels as indicated below:
• Loosen the 4 back screws (see Fig. 69).
• Remove the side panels (see Fig. 70).
• To assemble proceed in reverse order.
Fig. 61 - Loosen screws Fig. 62 - Remove side panels
5.13 SHELL
3
/ SHELL
3
PS / SHELL
3
UP COATING REMOVAL
To access the internal stove parts, disassemble the side panels as indicated below:
• Remove the door and the rh and lh front profiles (see Fig. 63 and Fig. 64).
• Remove the rear screws locking the coques. Remove the upper shell from above and the lower one by pulling it towards you.
(see Fig. 65, Fig. 66, Fig. 67 and Fig. 68).
• For assembly, proceed in reverse order.
