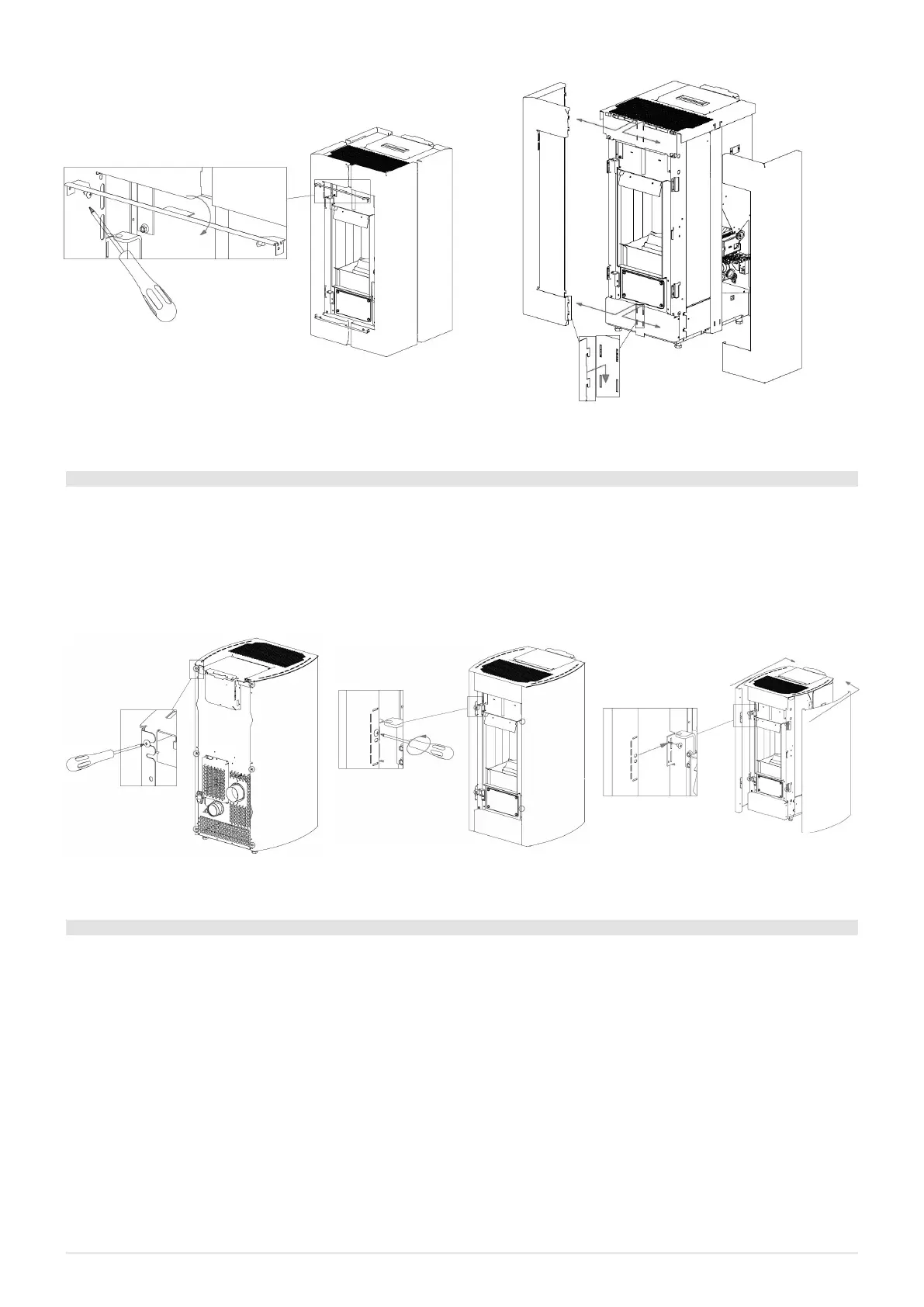

Fig. 53 - Remove proles Fig. 54 - Unhook the side panels
5.10 KRISS
3
 CRISTAL
3
SIDE PANEL DISASSEMBLY
To access the internal stove parts, disassemble the side panels as indicated below:
• Remove the door (see STOVE DOOR REMOVAL/INSTALLATION a pag. 22). (NB: You do not have to dissemble the door to
remove the right side panel).
• Loosen the 6 back screws (see Fig. 55).
• Loosen the 4 front screws and remove the side panels (see Fig. 56 and Fig. 57).
• To assemble proceed in reverse order.
Fig. 55 - Loosen screws Fig. 56 - Remove screws Fig. 57 - Remove side panels
5.11 ELISE
3
/SHELL
3
SIDE PANEL DISASSEMBLY
To access the internal stove parts, disassemble the side panels as indicated below:
• Unhook the side panels from low to high (see Fig. 58).
• For assembly, proceed in reverse order, adjusting the front faceplates both vertically and horizontally to bring them level with
the side panels (see Fig. 59 and Fig. 60).
