3.7 CHIMNEY COMPONENTS

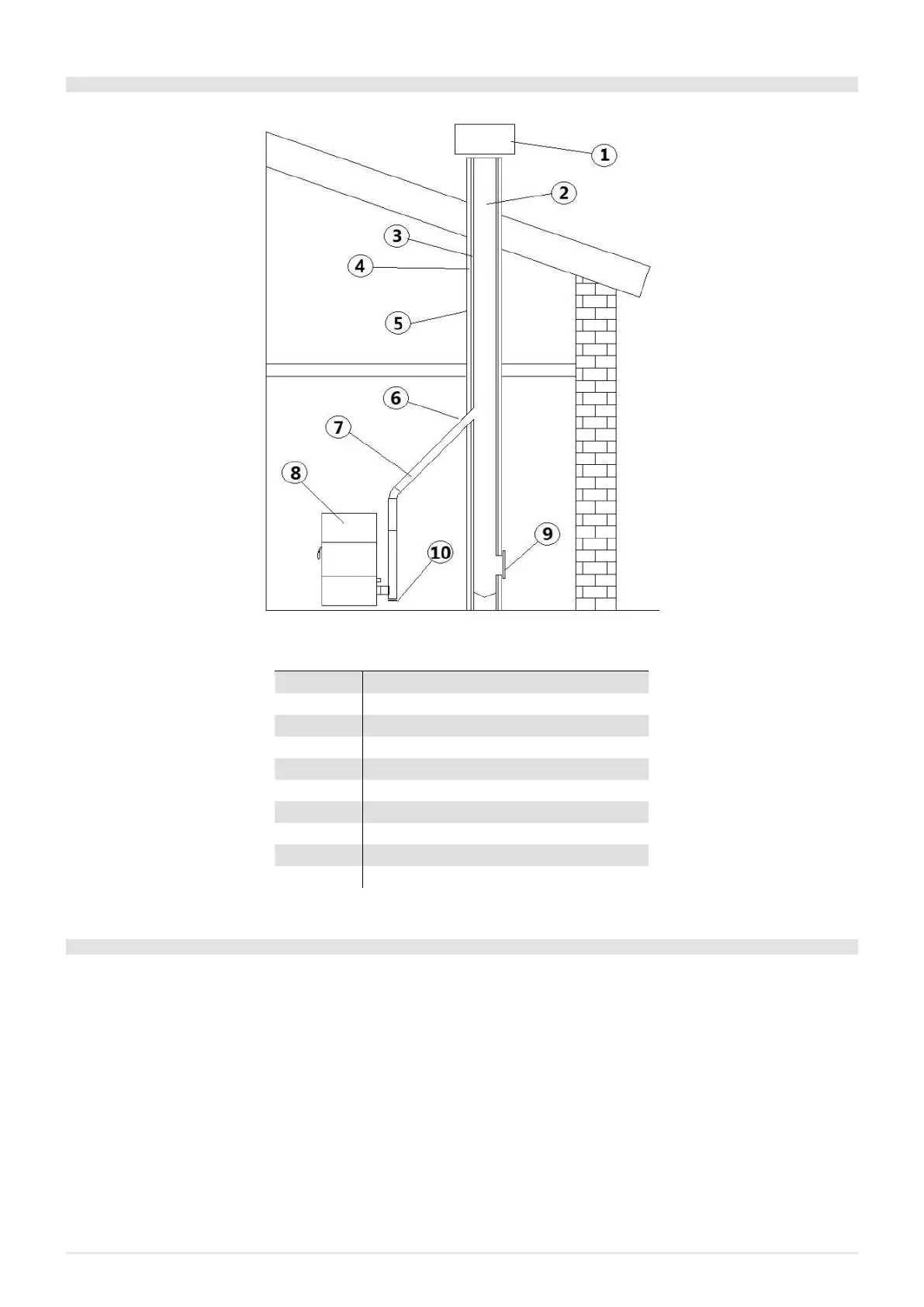

Fig. 6 - Chimney components
LEGEND Fig. 6
1 Chimney pot
2 Fume outlet
3 Chimney flue
4 Termal insulation
5 External wall
6 Chimney union
7 Fume pipe
8 Heat generator
9 Inspection door
10 T-union with inspection plug
3.8 CHIMNEY FLUE CONNECTION
Your pellet stove works through a fume draught forced by a fan. It is obligatory to check that all pipes are realized in compliance
with the following regulation on material selection: EN 1856-1, EN 1856-2 e UNI/TS 11278. All must be effected by specialized
personnel or companies as provided by UNI 10683:2012.
• The connection between the appliance and the chimney flue should be short in order to favor the draught and to avoid con-
densation in the pipes.
• The fume conduit should be equivalent or longer than the outlet joint ones (Ø 80 mm).
• Some stove models are endowed with a lateral and/or back exhaust. Check that the unused exhaust is sealed with the plug
given with standard equipment.
