Fig. 49 - Finish positioning Fig. 50 - Tighten the nish to the side
5.9 TECNA
3
SIDE PANEL DISASSEMBLY
To access the internal stove parts, disassemble the back side panels as indicated below:
• Loosen the 4 back screws (see Fig. 51).
• Unhook the back side panels (see Fig. 52).
• To assemble proceed in reverse order.

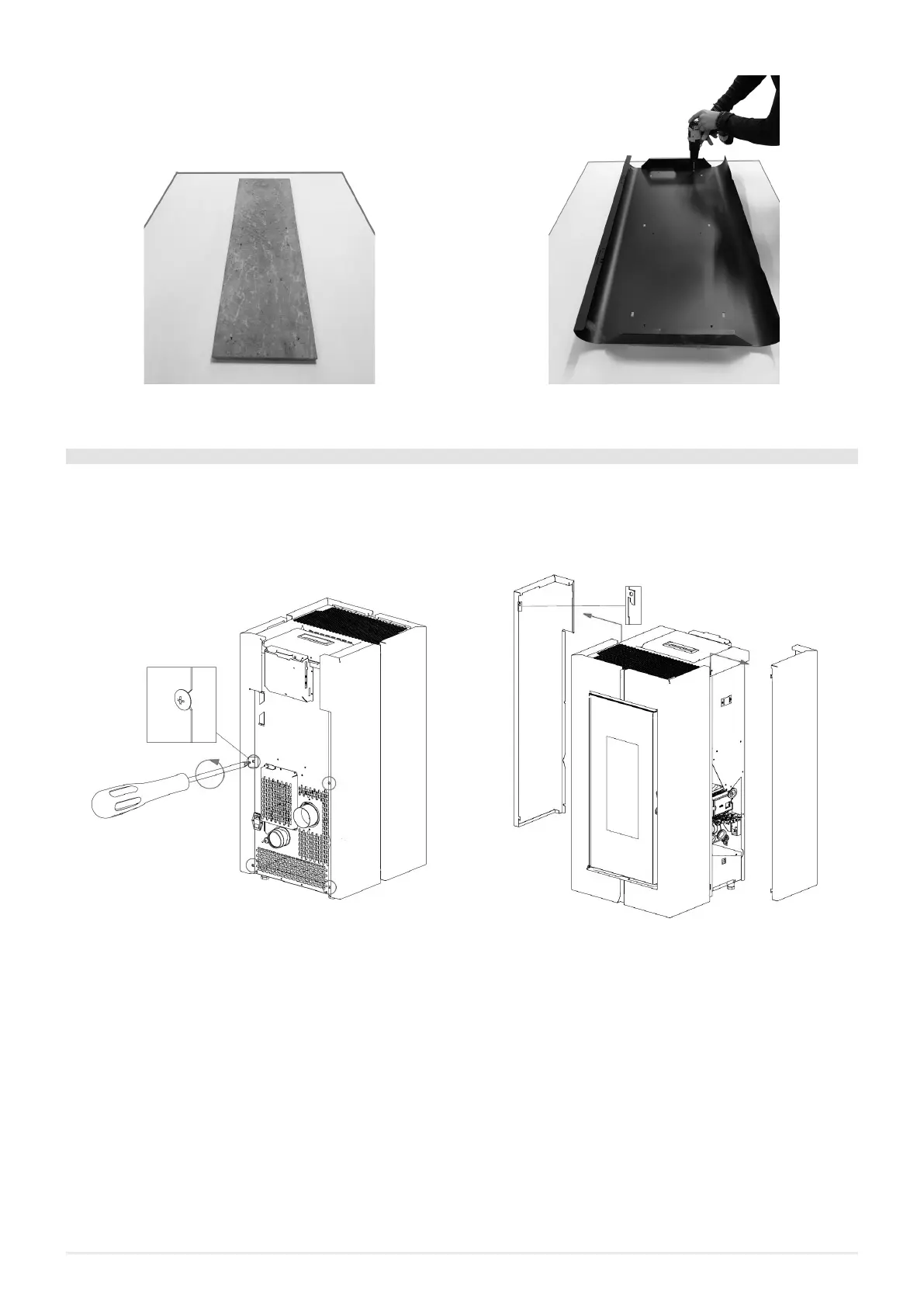

Fig. 51 - Remove screws Fig. 52 - Unhook the side panels
To disassemble the front side panels proceed as indicated below:
• Remove the door (see STOVE DOOR REMOVAL/INSTALLATION a pag. 22).
• Loosen the 4 screws and remove the black panels above and below the door (see Fig. 53).
• Unhook the side panels (see Fig. 54).
• To assemble proceed in reverse order.
