Cadel KRISS3 - 5.14 Glass Side Panel Disassembly

29
KRISS
3
- TECNA
3
- EVO
3
- ELISE
3
- SHELL
3
- CRISTAL
3
- GLASS - VERVE AT - PRETTY AT - TITANIA AT - VENERE AT - BREEZE AT

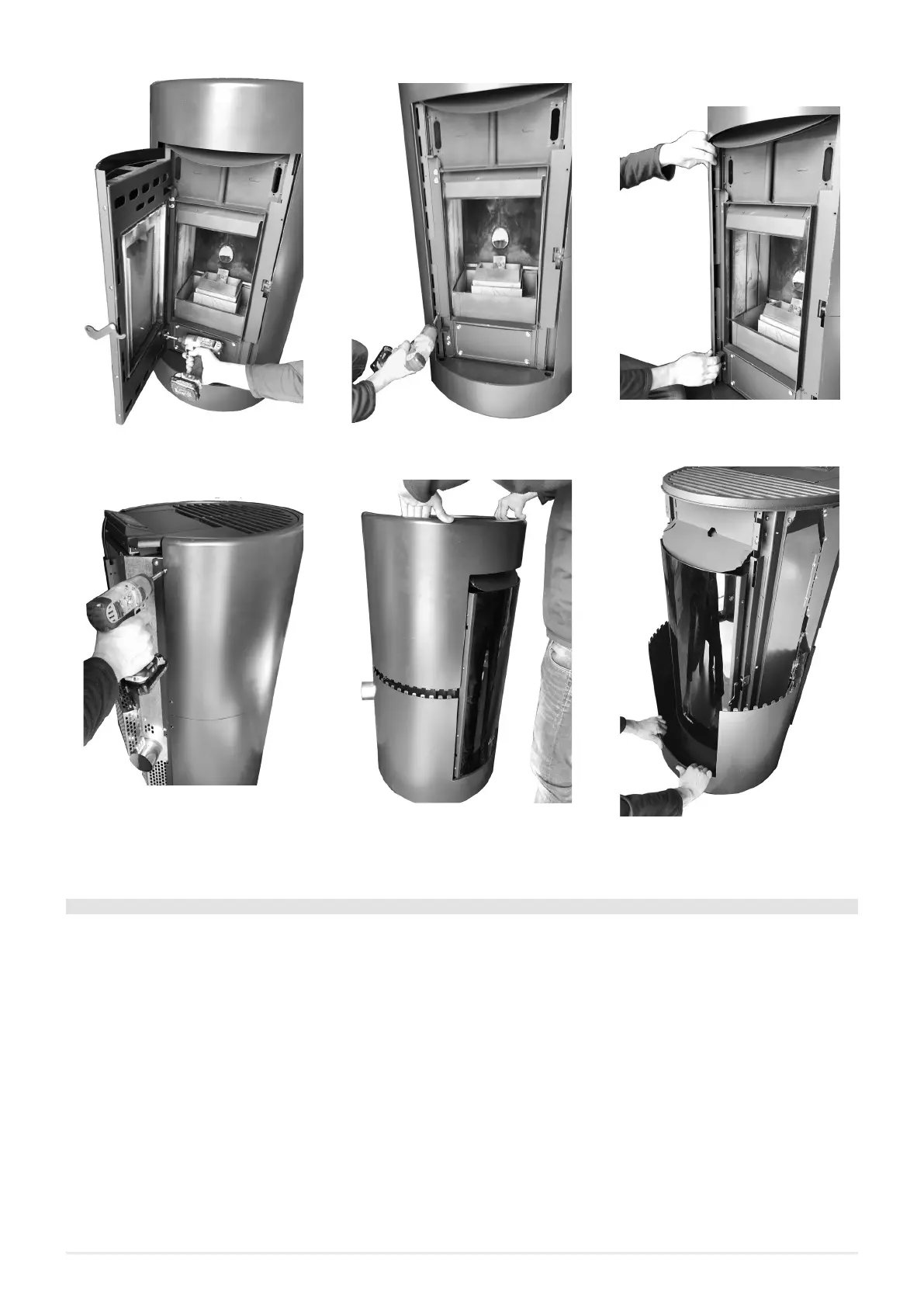

Fig. 63 - Door removal Fig. 64 - Prole screws removal (rh and lh). Fig. 65 - Front prole removal (rh and lh).
Fig. 66 - Rear screws removal Fig. 67 - Remove the upper coque from above. Fig. 68 - Remove the lower coque by pulling it
towards you.
5.14 GLASS SIDE PANEL DISASSEMBLY
To access the internal stove parts, disassemble the side panels as indicated below:
• Loosen the 6 back screws (see Fig. 69).
• Remove the side panels (see Fig. 70).
• To assemble proceed in reverse order.
