Setup
6. Connect the EtCO
2
sample line to the T-connector.
7. Connect the mask or the endotracheal tube to the T-connector (at the open end).

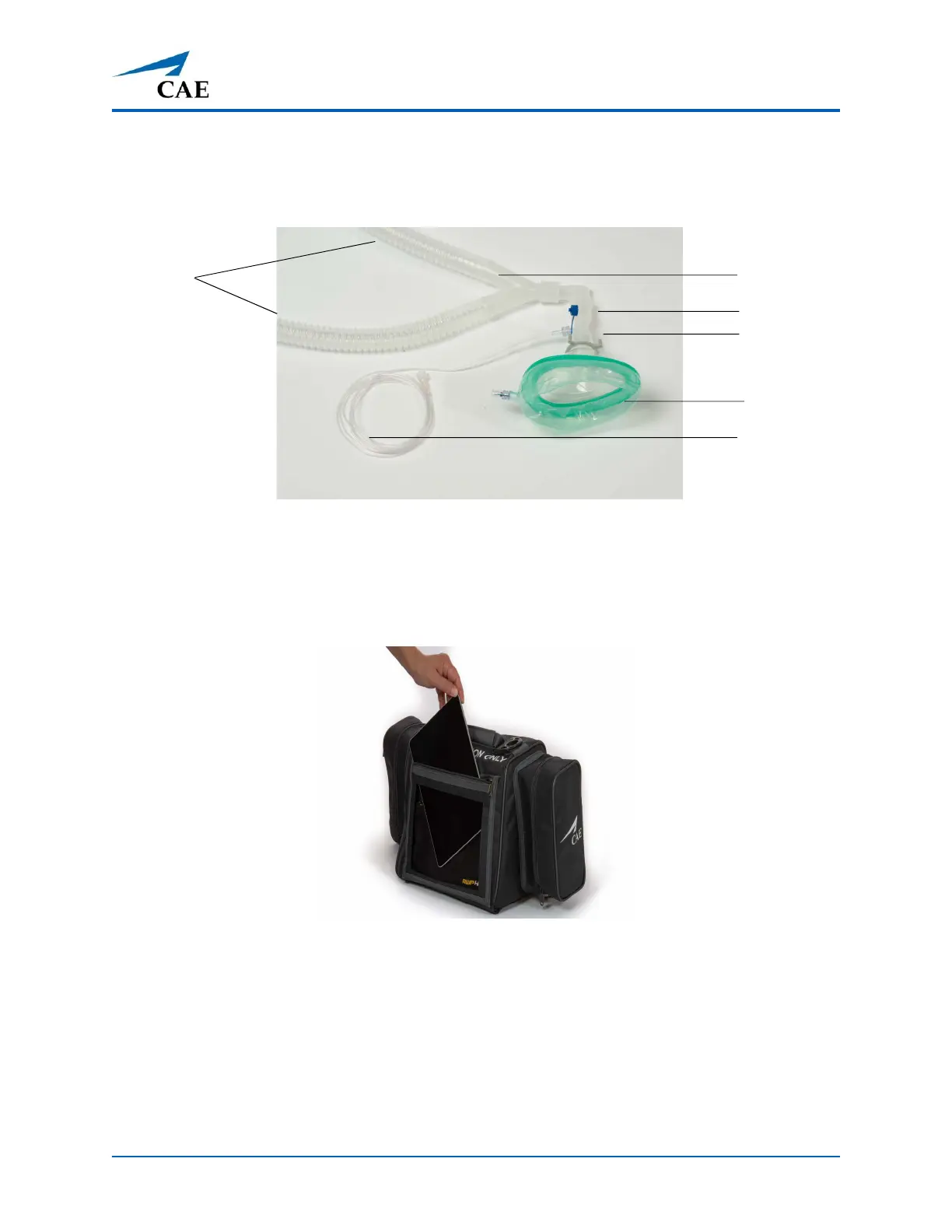

Breathing Circuit Assembled with Non-Invasive Mask
To assemble the Transport Ventilator:
1. Unzip the front pocket on the Transport Bag and slide the SimEquip Surface Go 2 tablet
out of the pocket.
Slide Out SimEquip Tablet
2. Plug the power cord into the tablet. Slide the tablet back into the pocket and zip the
pocket closed, leaving the power cord exposed.
3. Place the opposite end of the power cord into the battery pack. Place the battery pack
inside the middle section of the Transport Bag. Zip the middle compartment closed.
4. When facing the front sleeve side of the Transport Bag, open the left compartment on the
bag. Two ports will be visible, labeled: EXP and INSP.
Limbs
Wye
Elbow
T
EtCO
2
Sample
Line
Mask
