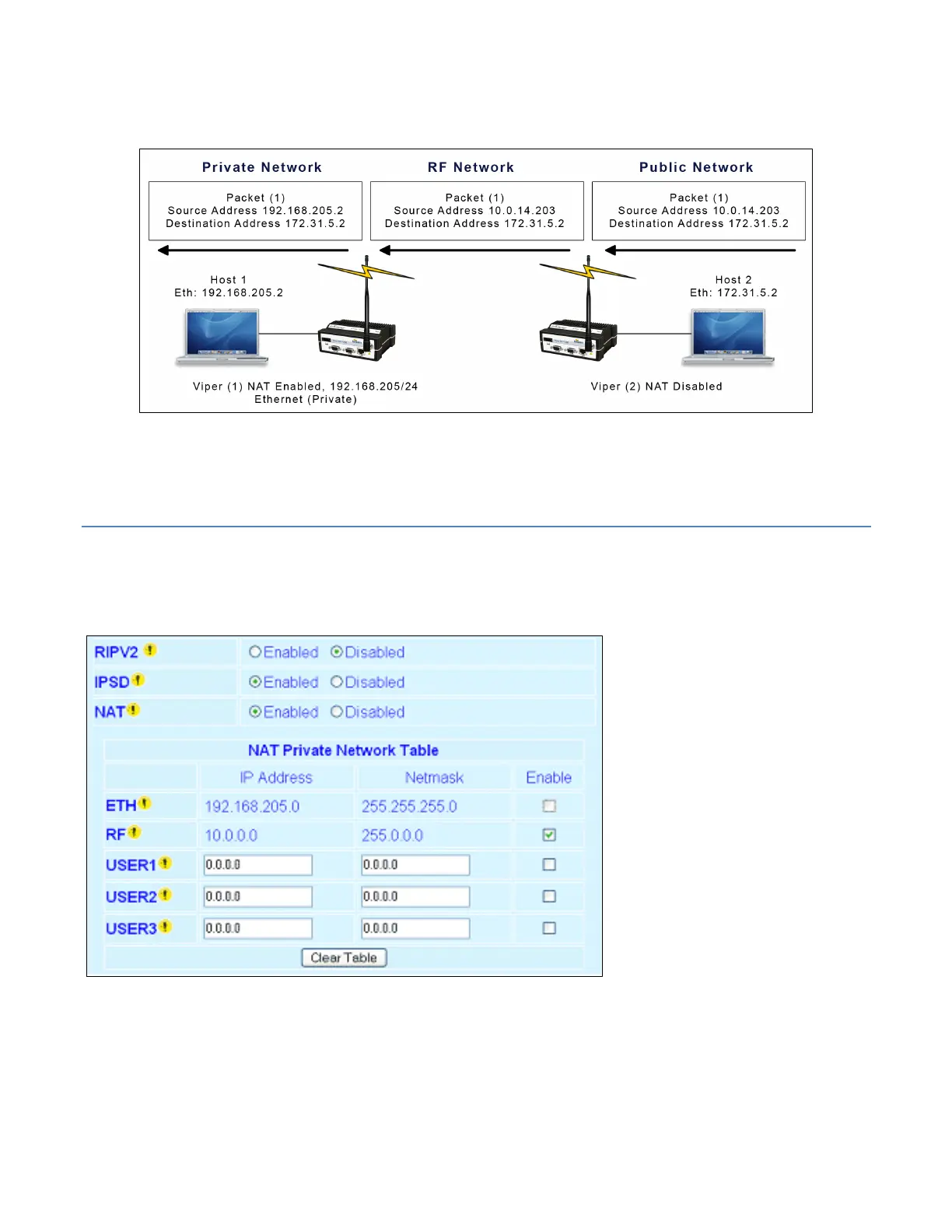

Figure 33 – Private to Public Packet Flow
Host 1 will be able to ping Host 2, however Host 2 will not be able to ping or originate a message to Host 1 when NAT Eth
enabled.
4.4.2.2.1.2 RF INTERFACE PRIVATE
Figure 34 shows the NAT enabled for the RF interface.
Figure 34 – NAT Enabled, RF (Private)
Figure 35 shows a Viper SC configuration protecting Viper SC (2) RF interface and Viper SC (1) Ethernet interface from hosts
located on a public network.
