CalAmp Viper 100

#9 Viper_SC_Manual_001-5008-000_Rev12e.docx | Page 52

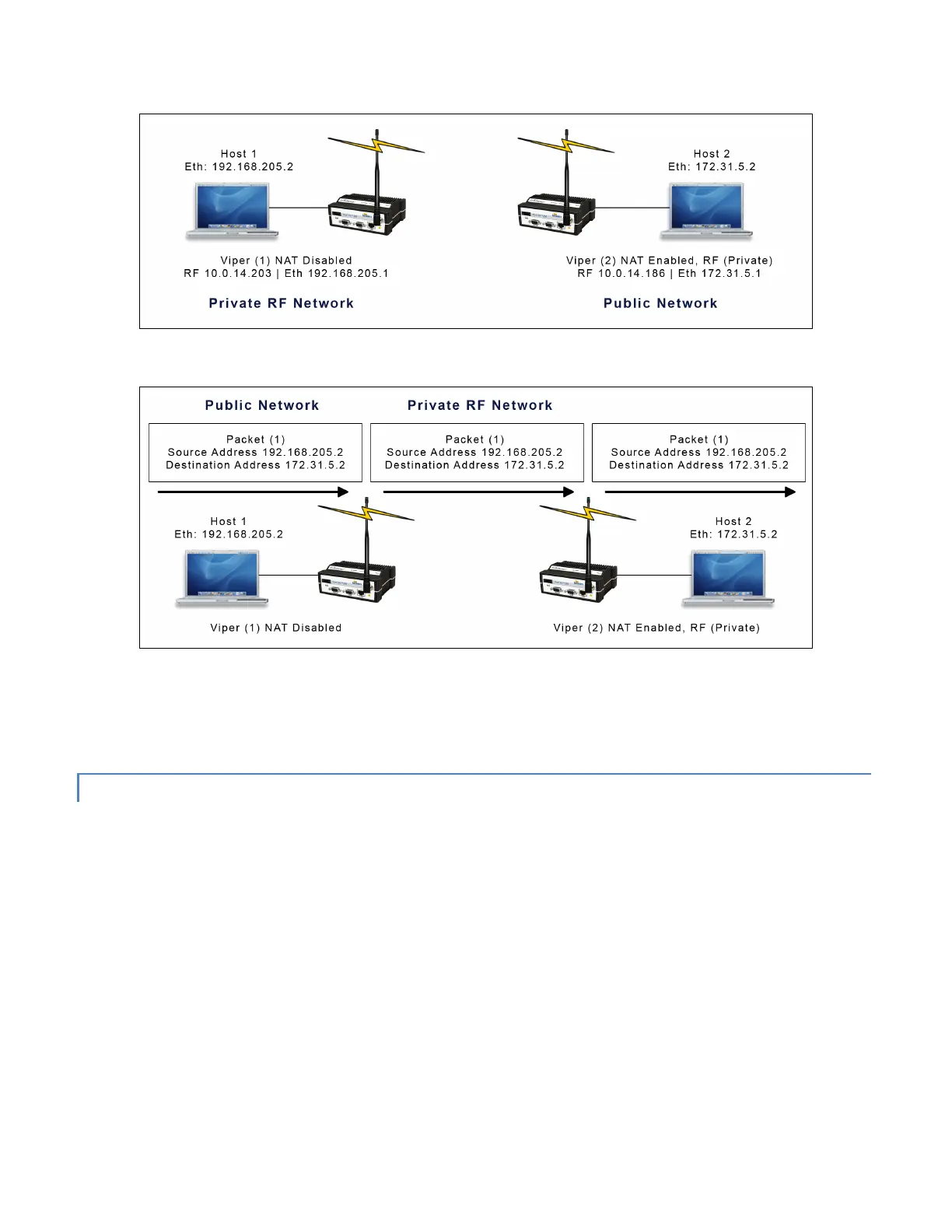

Figure 38 – Packet Flow, RF Interface (Private)
Figure 38 shows when Host 1 sends a packet, the source IP address is not changed by Viper (2) because the source does not
originate from the private RF network.
4.4.2.3 USER NAT ENTRIES
The user can add three USER IP addresses that will be considered private.
Figure 39 shows USER1 192.168.205.125 and USER2 192.168.205 will be considered private. If USER3 192.168.205.87 is
connected to the Viper SC, but not added to the table, USER3 192.168.205.87 would not be considered private.
Figure 39 – USER1 and USER2 (Private)
