Calrec M3 - DIL SWITCH SETTINGS - MV4656 TWIN MONO VU METER

M3
...............................................................................................................................................................................
101

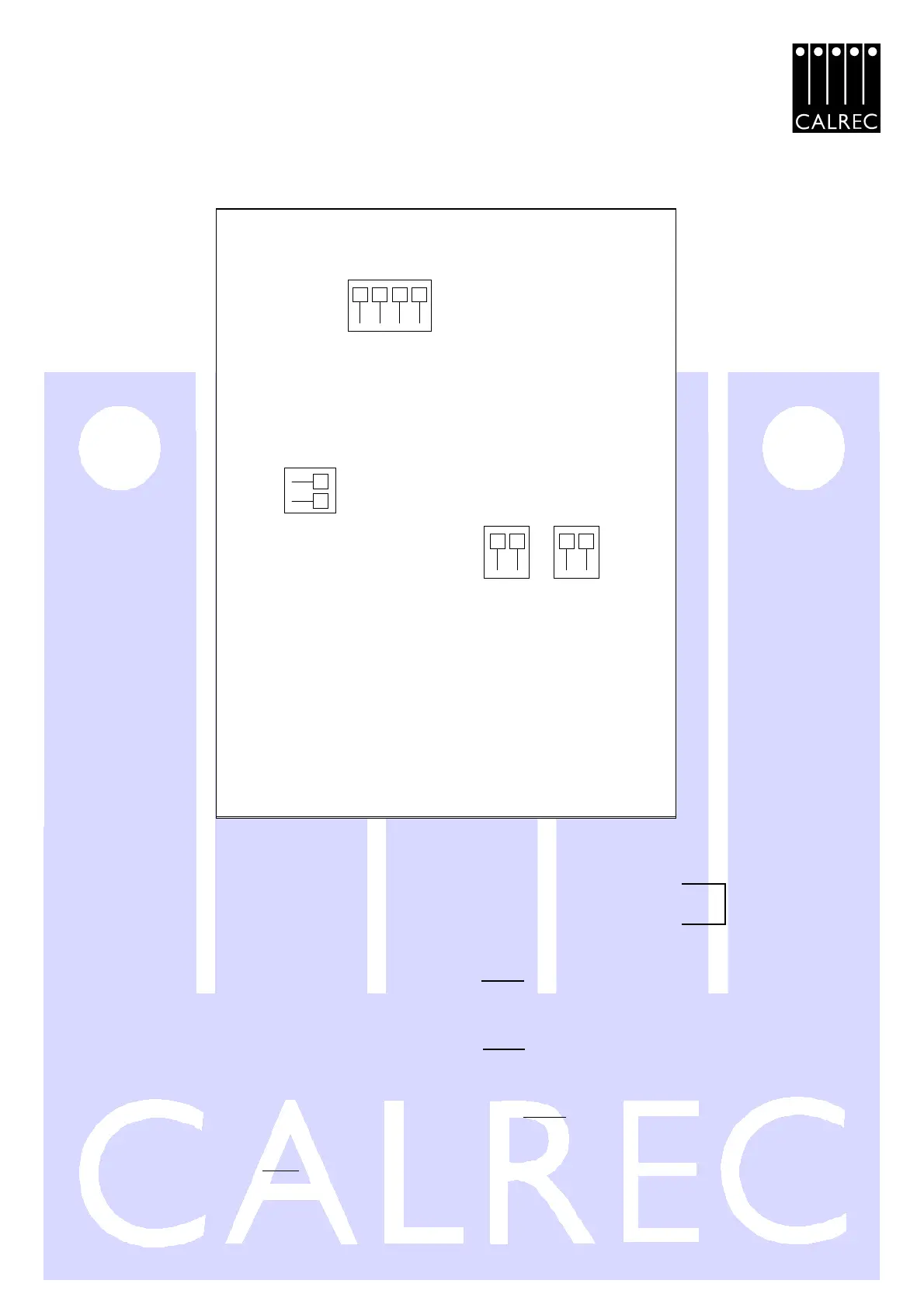

DIL SWITCH SETTINGS - MV4656 TWIN MONO VU METER
MN812-355
1
24
3
SW3
SW4
1
2
1
2
1
2
SW2
SW1
ODD=R EVEN=L
NO
OFF= +4dB PPM
ODD=PPM EVEN=VU
2 Cards fitted per unit - 1 for each meter.
SW 3 Section 1 & 3 - ON - Select RIGHT meter feed to be source.
Section 2 & 4 - ON - Select LEFT meter feed to be source.
SW 1 Section 1 - ON - PPM Characteristic.
Section 2 - ON - VU Characteristic.
SW 2 Section 1 - ON - PPM Characteristic.
Section 2 - ON - VU Characteristic.
SW 4 Section 1 - ON - Reduces gain to Unity.
Section 1 - OFF - Increases gain by 4dB.
Switches 1 & 2 must both be switched to either VU or PPM.
Standard
default setting
for L/R
Standard default setting
Standard default setting
Standard default setting
