Calrec M3 - PQ5123 STEREO MIC INPUT CHANNEL

M3
...................................................................................................................................................................................
50

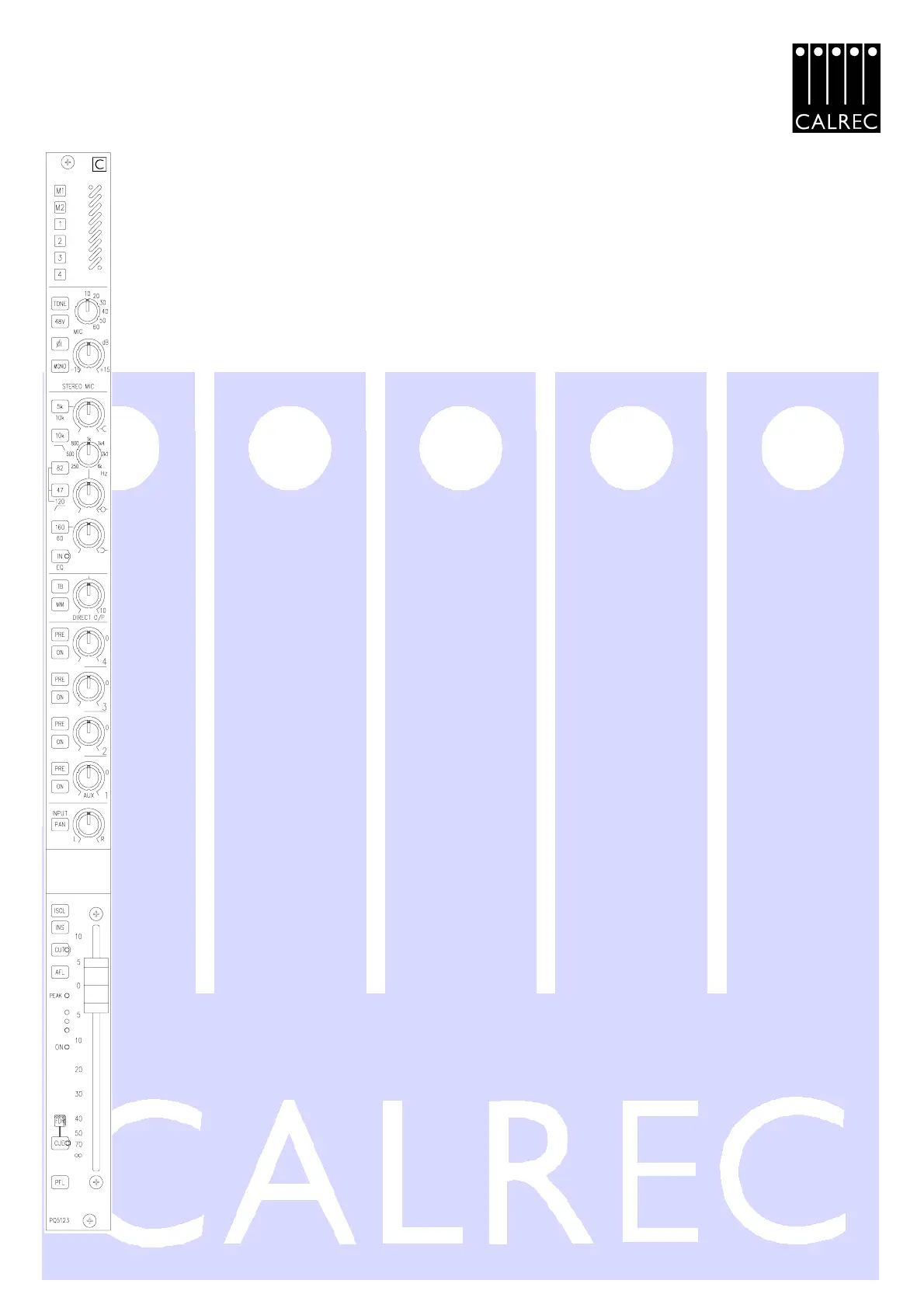

PQ5123 STEREO MIC INPUT CHANNEL
Routing to : 2 main Stereo outputs up to 4 Mono or Stereo groups. Optional routing to
mono groups - left to odds, right to evens.
Tone : Red button switches alignment tone to the channel post mic gain control but pre the
trim - Inhibited on air.
48V : Microphone phantom power.
ØL : Phase reverse left leg.
Mono : Switches both inputs to both outputs.
Gain : Rotary Switch +10 to +60dB in 10dB steps.
Trim : ± 15dB.
HF Filter : 1 button : 10kHz.
LF Filter : 2 buttons : 47Hz, 82Hz, both 120Hz.
3-band equaliser :
HF shelf : ± 15dB at 10kHz or 5kHz (button pressed).
MID bell : ± 15dB frequency variable from 250Hz to 4kHz.
LF shelf : ± 15dB at 60Hz or 160Hz (button pressed).
EQ in/out button (includes filters) Red LED.
Direct output gain control 10dB in hand.
TB : Talkback button to direct output.
MM : Pushbutton selects Mix-Minus buss to either a channel direct output or as a
channel contribution to common mix-minus buss (both the direct output and the
MM contribution can be internally selected to be pre or post fader)
Aux 4 : Stereo output to aux 4 buss, selectable pre or post fader and on/off. Follows
channel pan.
Aux 1-3 : Mono outputs to aux 1 to 3 busses with individual level, pre/post and on/off
controls.
L/R : Input signal left/right pan selected by INPUT PAN button.
Scribble strip
ISOL : Isolates external VCA control.
INS : Selects insert circuit (pre or post fader or bypassed are internal options).
CUT : Latching button (yellow LED) cuts all pre and post signals except insert send
(if selected pre) and PFL.
AFL : Latching button routes channel left/right signal in stereo to the AFL mix which is
fed to the monitor loudspeakers, automatically overriding the normal feed.
Peak : Red LED illuminates when the signal anywhere in the module is within 3dB of
clipping.
3 LEDs : Displays pre EQ signal level relative to 0dBu.
ON : Green LED illuminates to show channel fader open.
FDR : Fires remote start/cue when fader is open.
CUE : Fires remote start/cue when pressed, Green LED.
PFL : Latching button routes pre-fader channel signal to the small PFL loudspeaker
(with internal option to inject into the main monitor chain).
Fader : 10dB in hand.
