Calrec M3 - BARGRAPH OPTIONS

M3
...................................................................................................................................................................................
72
Twin LED bargraphs - 40 LEDs each for good resolution.
Bars brighten at 0dB representing +6 or +8 dBu for PPM or +4dBu
(SCALE 0) for VU (set internally).
MU4710
MONO
BARGRAPH
(Green)
MU3804-2
LARGE STEREO
BARGRAPH
(Red/Green)
MU4333-2
LARGE STEREO
BARGRAPH
(Green/Red)

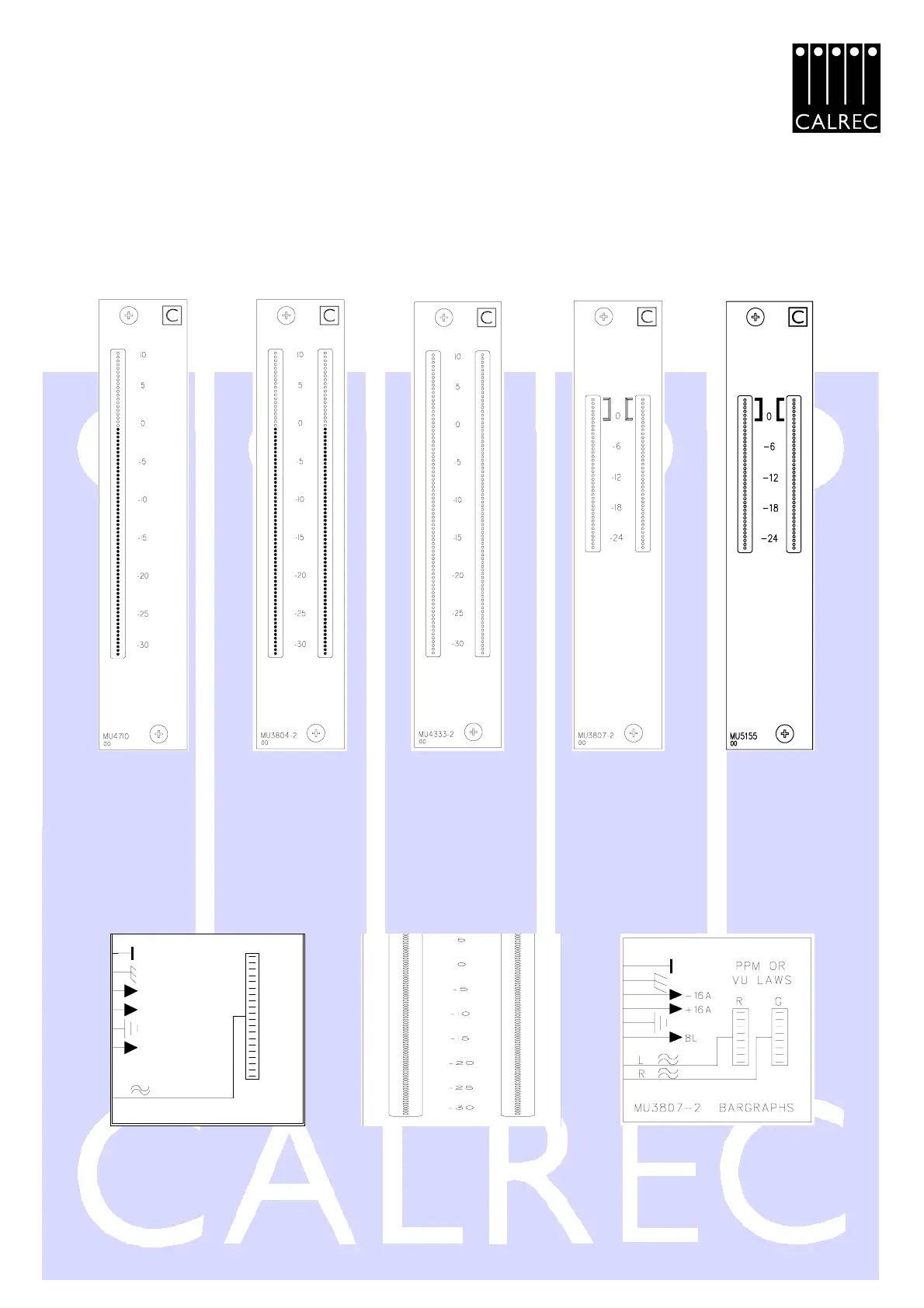

BARGRAPH OPTIONS
MU3807-2
SMALL STEREO
BARGRAPH
(Red/Green)
MU5155
SMALL STEREO
BARGRAPH
(Green/Red)
MU4333-2 (G/R Version)
MU5155 (G/R Version)
G
MONO BARGRAPHMU4710
8L
M
+12A
-12A
LAWS
OR
VU
PPM
