Calrec M3 - DIL SWITCH SETTINGS - BARGRAPH OPTIONS

M3
...................................................................................................................................................................................
102
PLEASE NOTE
The following switches should be set to all VU or all PPM to achieve proper performance.
It is remotely possible to have different characteristics on left and right bars of the bargraph
when used for anything other than stereo metering

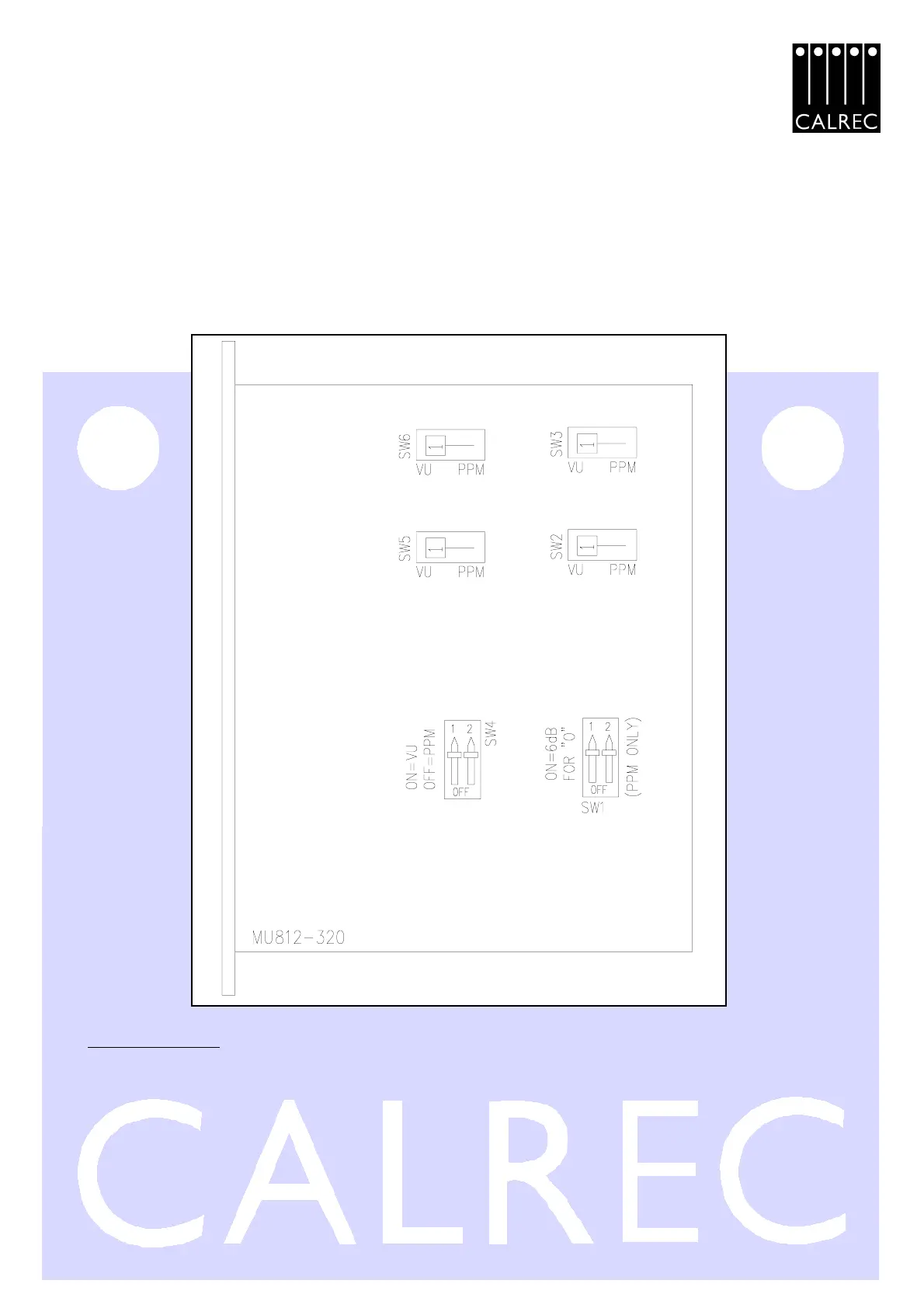

! MU3804-2 LARGE STEREO BARGRAPH
! MU4333-2 LARGE STEREO BARGRAPH - REVERSED COLOURS
! MU3807-2 STEREO BARGRAPH
! MU5155 STEREO BARGRAPH - REVERSED COLOURS
! MU4710 MONO BARGRAPH (SWITCHES 4, 5 AND 6 DO NOT FUNCTION)
DIL SWITCH SETTINGS - BARGRAPH OPTIONS
