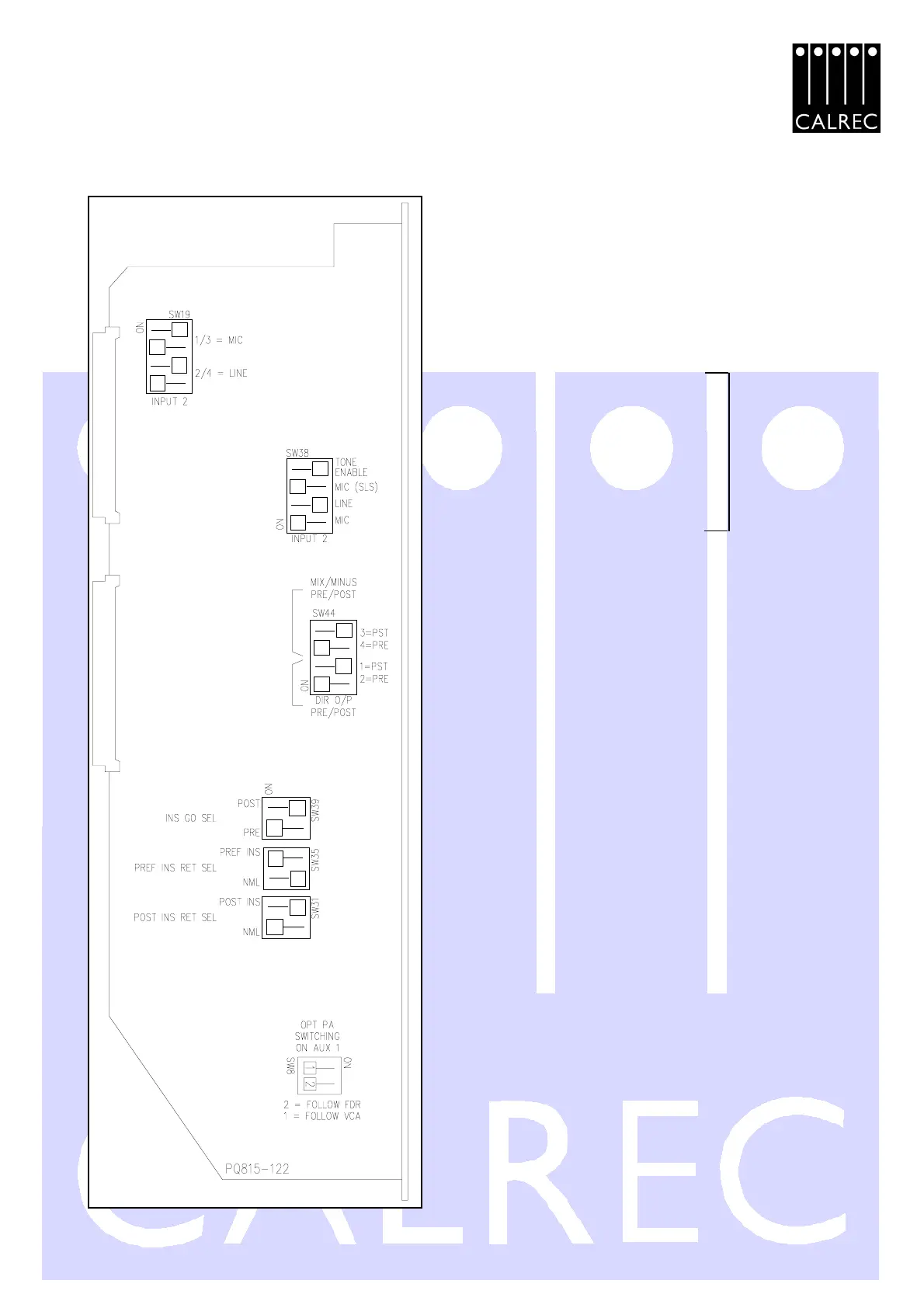

DIL SWITCH SETTINGS - PQ5122 MONO MIC/LINE DUAL INPUT CHANNEL
1
2
1
2
1
2
1
2
3
4
1
2
3
4
1
2
3
4
Standard default
settings
Mono channel 2nd Input can be internally set to
either Mic or Line. (Selection of either Input 1 or 2 is
done via a switch on the front panel).
MIC SW 19 1 - ON
2 - OFF
3 - ON
4 - OFF
SW 38 1 - ON
2 - OFF
3 - ON
LINE SW 19 1 - OFF
2 - ON
3 - OFF
4 - ON
SW 38 1 - OFF
2 - ON
3 - OFF
Each channel can have the alignment Tone to the
mic gain control internally set to be either
continuously enabled or to follow the Transmission /
Rehearsal logic
Tone - Permanently enabled SW 38 4 - ON
Tone - Follows Tx / Reh logic SW 38 4 - OFF
(default)
Standard default
settings
