Calrec M3 - DIL SWITCH SETTINGS - BQ5124 STEREO LINE INPUT CHANNEL

M3
...................................................................................................................................................................................
82

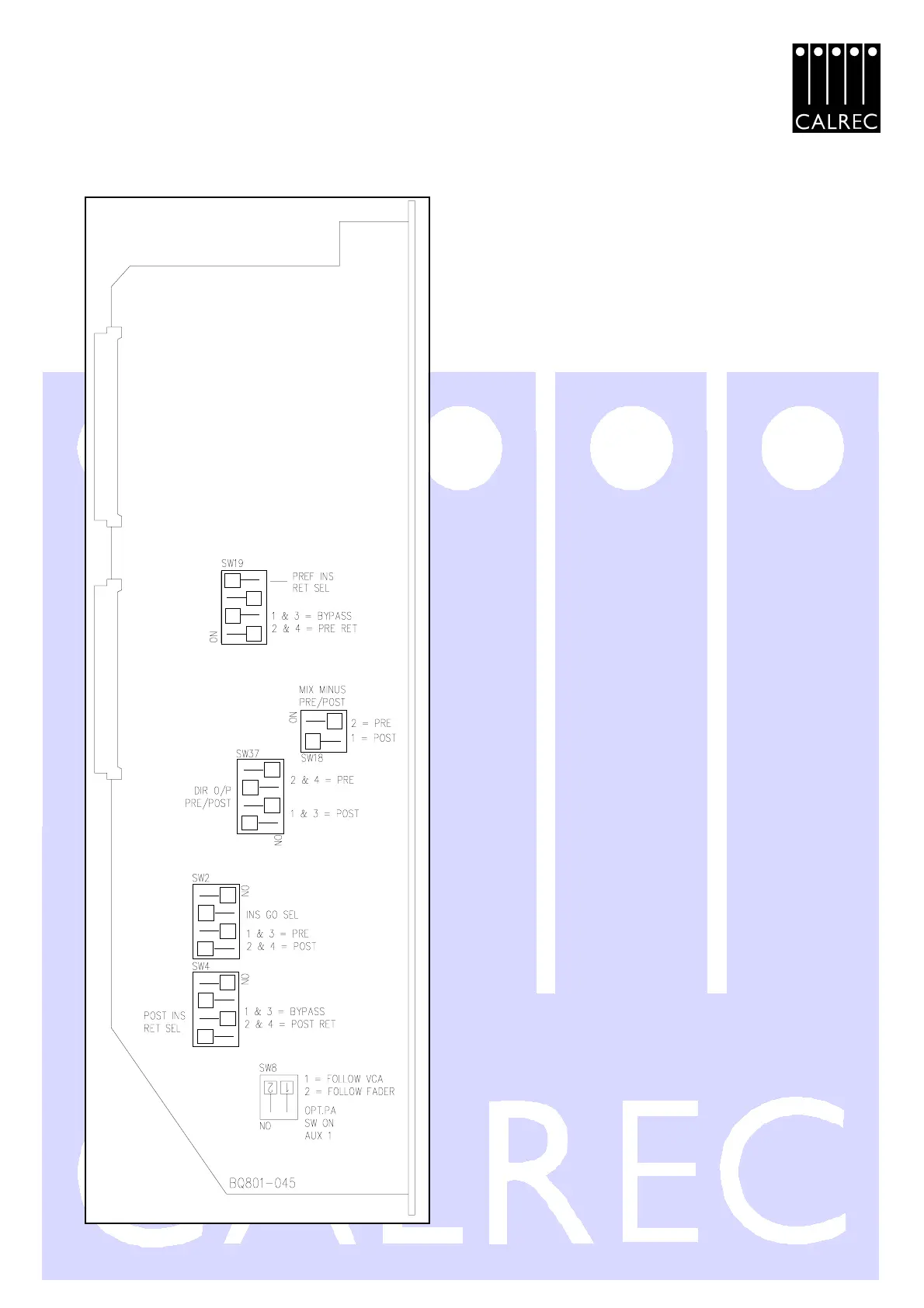

DIL SWITCH SETTINGS - BQ5124 STEREO LINE INPUT CHANNEL
Channel Insert Go signal can be taken either Pre
or Post fader, or bypassed altogether if not required
for use. The signal is always present at the Insert
Go connector in all conditions.
Insert - Pre fader SW 2 1 - ON
2 - OFF
Default 3 - ON
4 - OFF
SW 19 1 - OFF
2 - ON
3 - OFF
4 - ON
SW 4 1 - ON
2 - OFF
3 - ON
4 - OFF
Insert - Post fader SW 2 1 - OFF
2 - ON
3 - OFF
4 - ON
SW 19 1 - ON
2 - OFF
3 - ON
4 - OFF
SW 4 1 - OFF
2 - ON
3 - OFF
4 - ON
Insert - Bypassed SW 19 1 - ON
2 - OFF
3 - ON
4 - OFF
SW 4 1 - ON
2 - OFF
3 - ON
4 - OFF
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
Standard default
settings
