M3
...................................................................................................................................................................................
30

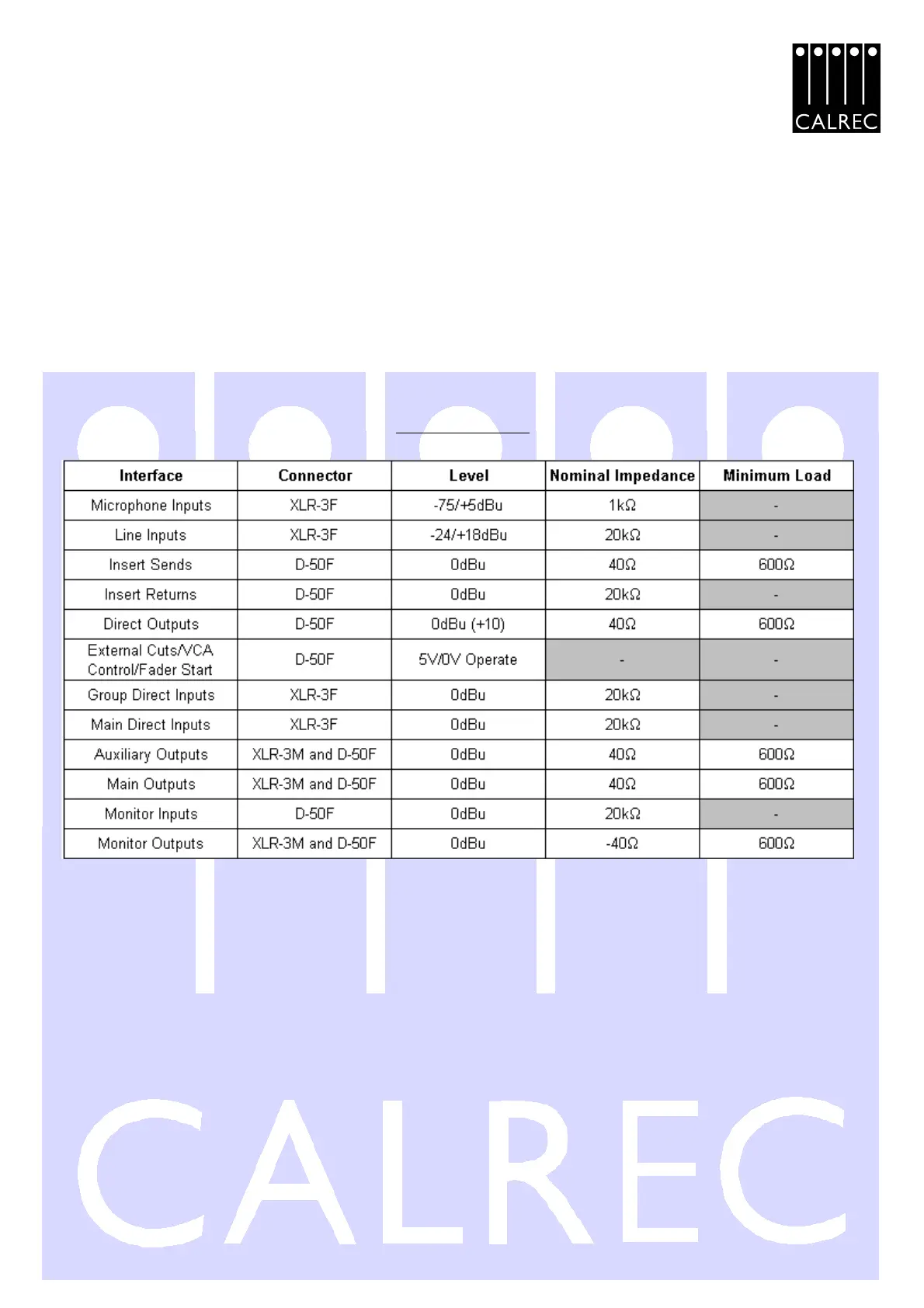

CONNECTIONS
The M3 uses XLR-3 fixed (panel mounted) female (socket) connectors for Channel Mic
and Line level inputs and direct inputs to groups and mains.
Main, monitor and Aux outputs are on XLR-3 fixed (panel mounted) male (plug)
connectors
50 way D-type fixed panel mounted) female (sockets) connectors are used for all other
audio and control connections.
Recommended
WEIGHTS
Small chassis (with internal PSU) = 19.5kg (43lb) approx
Medium chassis = 36kg (70.5lb) approx
Large Chassis (no stand) = 62Kg (136lb) approx
Large Chassis (with stand) = 79Kg (173lb) approx
