Calrec M3 - DIL SWITCH SETTINGS - MY4994; MY4994-2 METER SELECTOR

M3
...................................................................................................................................................................................
98

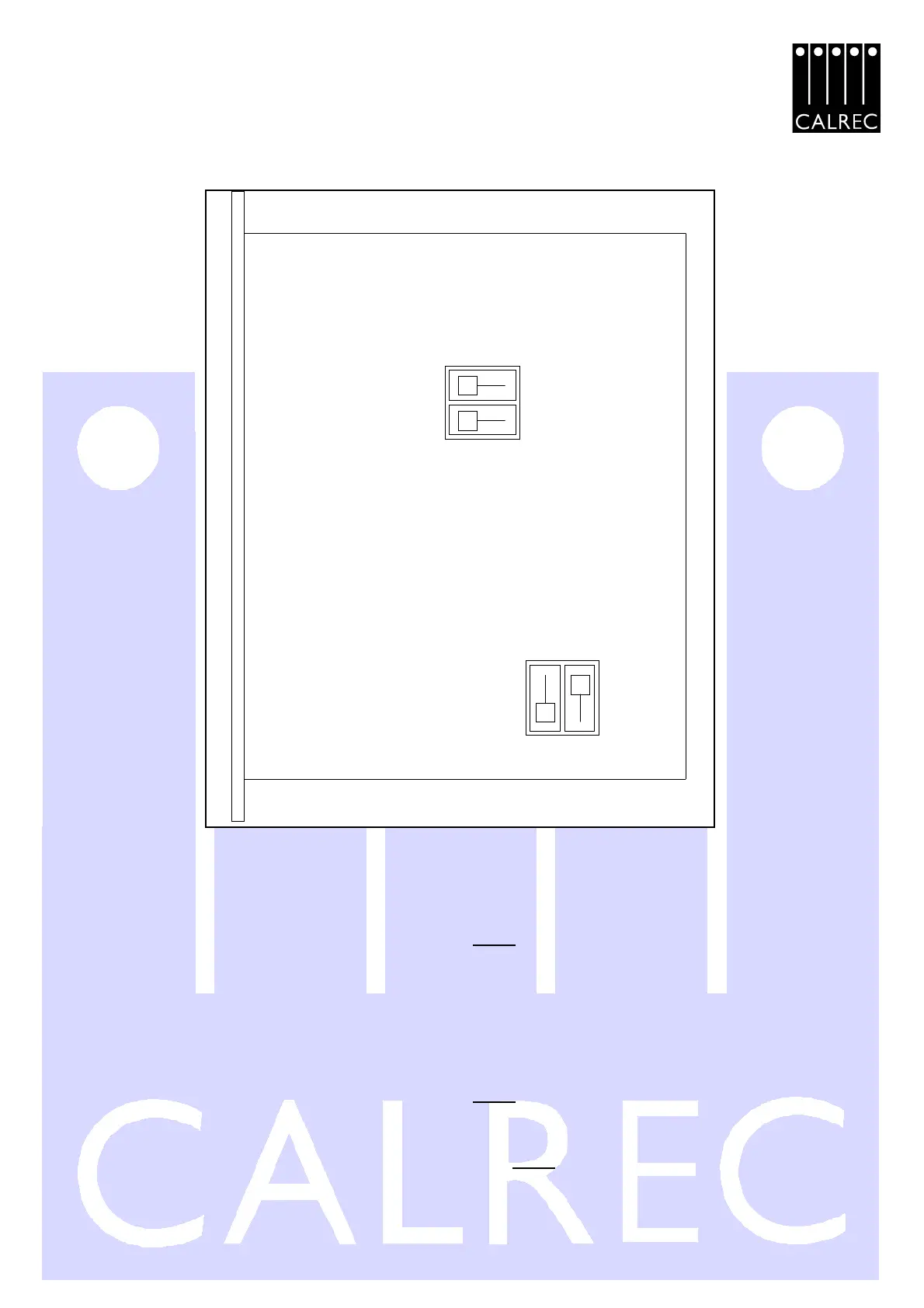

DIL SWITCH SETTINGS - MY4994 / MY4994-2 METER SELECTOR
MY812-324
SW16
ON
AUTO M-3
ON MONO SELS
AUTO M/S
ON MONO SELS
12
OFF
1
SW15
OFF= M-3 ON= M-6
2
ON
OFF
Standard default
settings
The meter selector can be set to automatically switch the metering to M/S when a mono
source is selected. (The M/S switch LED will also illuminate on the front panel)
M/S switching AUTO SW 16 1 - ON
M/S switching OFF SW 16 1 - OFF
The meter selector can be set to automatically reduce the metering of the mono signal by -
3dB when a mono source is selected. This will bring the mono and stereo signals in line
with each other at 0dB.
-3dB automatic reduction SW 16 2 - ON
Mono signal unchanged SW 16 2 - OFF
SW 15 OFF = M - 3
ON = M - 6
Mono M & S can be either set for -3dB mix or -6dB
Standard default setting
Standard default setting
Standard default setting
