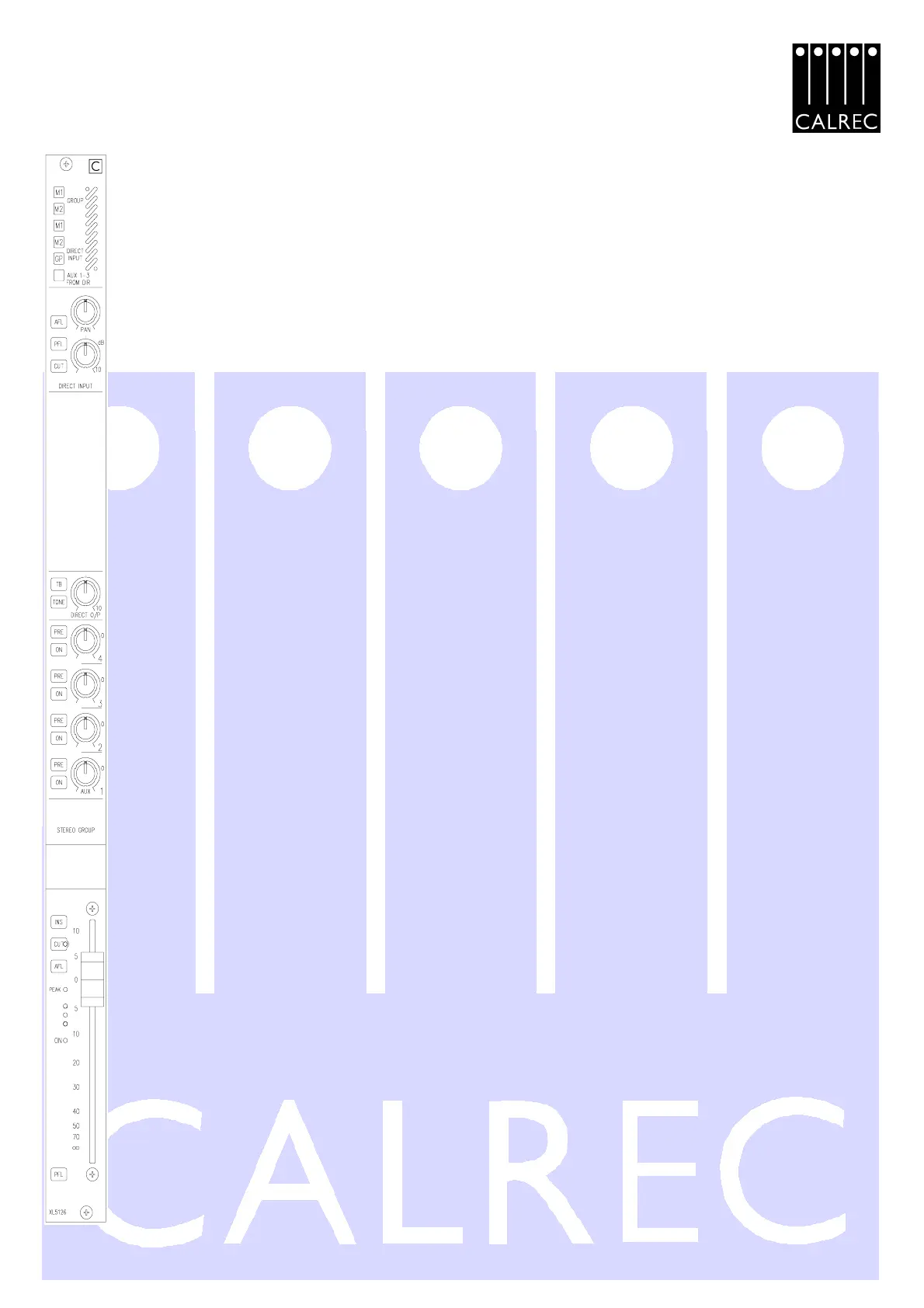

XL5126 STEREO GROUP
Group routing to 2 main Stereo outputs.
Group direct input routing to 2 main Stereo outputs to group mixer.
Aux 1-3 from direct button switches aux 1-3 to group direct input.
Direct AFL : Latching button routes direct input after fader signal exclusively to monitor
loudspeaker.
Direct PFL : Latching button routes direct input pre fader signal to small PFL loudspeaker.
Direct CUT : Latching button cuts direct input signal.
Direct PAN : Pans Stereo direct input signal between left & right outputs.
Direct Gain : Sets direct input signal level, 10dB in hand.
Direct output gain control 10dB in hand (direct output can be internally selected pre or post fader).
TB : Talkback button to direct output.
TONE : To direct output, inhibited ON AIR.
Aux 4 : Stereo output to aux 4 buss, selectable pre or post fader and on/off. Follows
channel pan.
Aux 1-3 : Mono outputs to aux 1 to 3 busses with individual level, pre/post and on/off
controls.
Scribble strip
INS : Selects insert circuit (pre fader).
CUT : Latching button (yellow LED) cuts all pre and post signals except insert send and
PFL.
AFL : Latching button routes channel left/right signal in Stereo to the AFL mix which is fed
to the monitor loudspeakers, automatically overriding the normal feed.
Peak : Red LED illuminates when the signal anywhere in the module is within 3dB of
clipping.
3 LEDs : Displays pre EQ signal level relative to 0dBu.
ON : Green LED illuminates to show channel fader open.
PFL : Latching button routes pre-fader channel signal to the small PFL loudspeaker
(with internal option to inject into the main monitor chain).
Fader : 10dB in hand.
