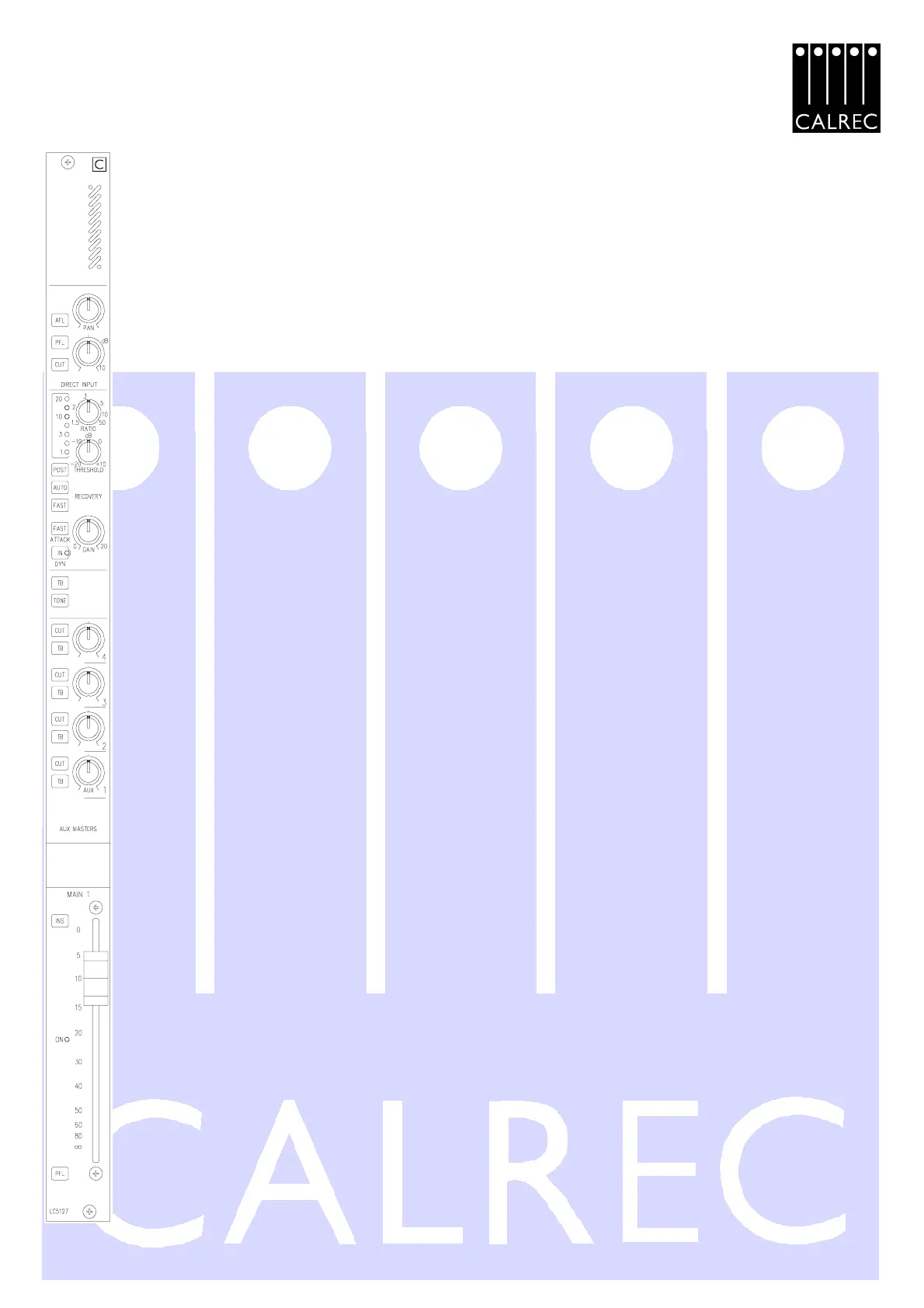

LC5127 MAIN OUTPUT 1 AND AUX MASTERS
Direct AFL : Latching button routes direct input after fader signal exclusively to monitor
loudspeaker.
Direct PFL : Latching button routes direct input pre fader signal to small PFL loudspeaker.
Direct CUT : Latching button cuts direct input signal.
Direct PAN : Control pans Stereo direct input signal
Direct level : Control sets direct input signal level, 10dB in hand.
Main output Compressor, may be used as a Limiter (50:1 ratio) 20dB Gain reduction, Yellow LEDs.
Normally pre fader can be set POST fader (with button pressed).
RECOVERY AUTO : Sets recovery to between 0.1 to 1.5 secs, programme dependant.
RECOVERY FAST : Changes recovery time from 1 secs to 75ms (overridden by AUTO
button)
ATTACK : Normal 4ms @ 5:1 ratio or FAST 0.2ms @ 5:1 ratio
Dynamics IN button : Red LED.
RATIO : 1.5 to 50:1 variable control.
THRESHOLD : -20 to +10dBu, variable control.
GAIN make-up : 0 to +20dB variable control.
TB : Talkback momentary button, inoperative ON AIR.
TONE latching button : Inoperative ON AIR.
Aux 1-4 : Output level controls +10dB in hand.
CUT : Output CUT buttons.
TB : TB Talkback buttons (momentary).
Scribble Strip
INS : Insert button - Selects main output insert (pre fader).
ON : Green LED Illuminates when fader is open.
PFL : Latching button routes main output pre fader signal to small PFL loudspeaker.
FADER : With 0dB in hand.
