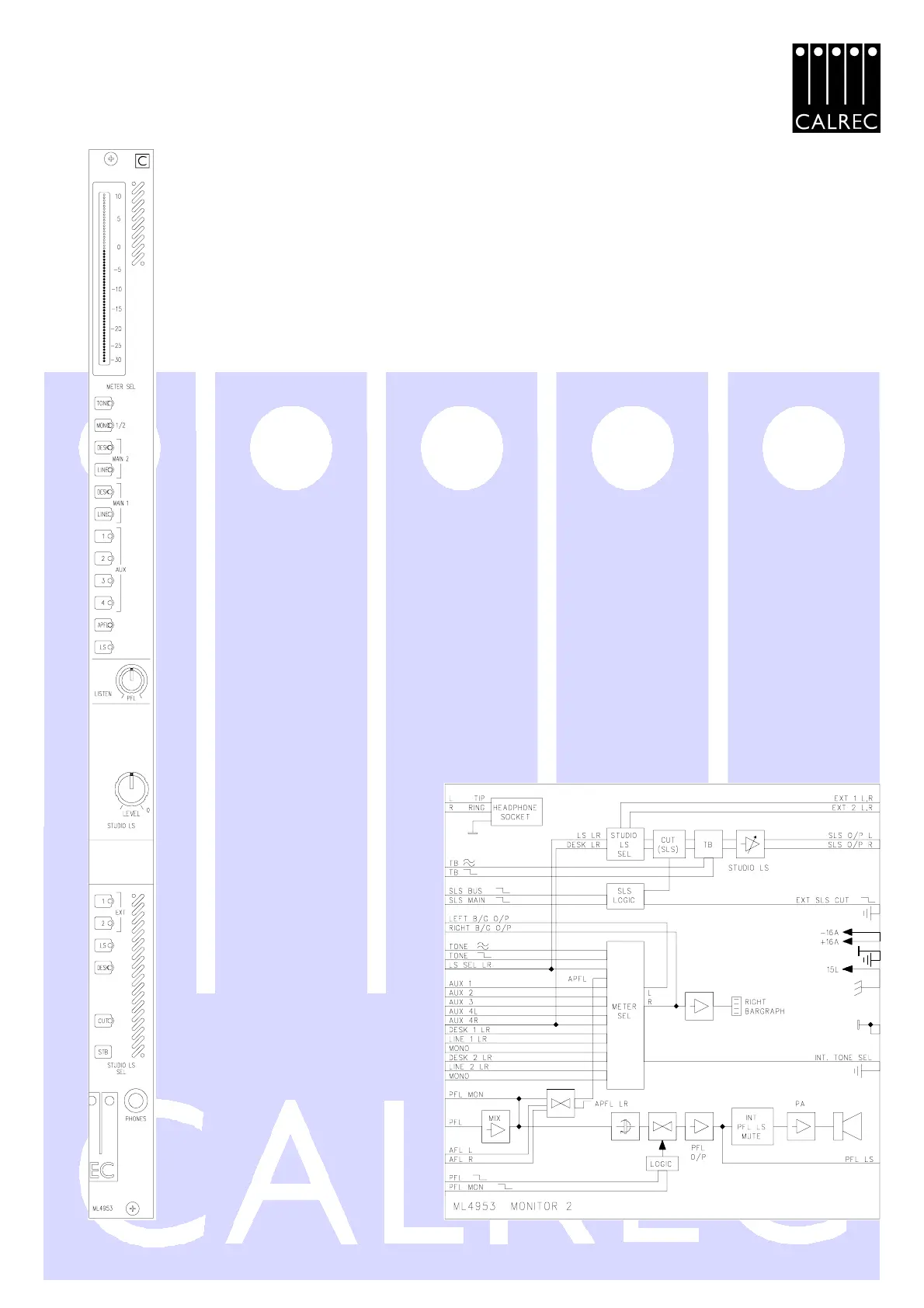

ML4953 MONITOR 2
LEVEL BARGRAPH : Displays level of right channel of meter select output (internally
selectable for PPM/VU and 0dB reference level).
METER SELECTOR - 12 way selector with the following sources:
TONE : Sends line up tone to meters, Red LED.
LS : Follows control room monitor selector, Green LED.
AUX 1 : Mono aux 1 to left meter, Green LED.
AUX 2 : Mono aux 2 to left meter, Green LED.
AUX 3 : Mono aux 3 to left meter, Green LED.
AUX 4 : Stereo aux 4 to both meters, Green LED.
APFL : AFL plus PFL, Green LED.
MONO 1/2 : Main outputs 1 & 2 to meters, Green LED (main 1 to left meter,
main 2 to right meter).
MAIN 1 DESK : Green LED.
MAIN 1 LINE : Green LED.
MAIN 2 DESK : Green LED.
MAIN 2 LINE : Green LED.
PFL : Pre Fade Listen level control to PFL loudspeaker.
STUDIO LS LEVEL : Sets studio loudspeaker level.
STUDIO LS MONITOR SELECTOR, 4 way selector with the following sources:
2 External sources : EXT 1 and EXT 2, Red LEDs.
LS : Follows control room monitor selector, Red LED.
DESK : Main 1 desk output, Red LED.
CUT button : Cuts studio loudpeaker, Yellow LED (may also be cut by the SLS
logic system).
STB button : Studio Talkback - Momentary, selects desk Talkback to studio
loudspeaker.
HEADPHONE socket for headphone
monitoring.
