CS3000 User’s Guide
14 Calsense
Device Compatibility
2-Wire Decoders
Calsense 2-Wire technology provides easy and cost-effective installation and built-in robust lightning
and surge protection, making it durable and reliable. Decoders not only receive commands from the
controller but also send real-time information back. Diagnostic information is gathered automatically
from each decoder on a continual, real-time basis and recorded and transmitted back to the controller
as well as the Command Center Online cloud application.
2-Station 2-Wire Decoder
The Calsense 2-Station 2-Wire decoder (model CS-2W-2ST) operates up to 2-solenoids using uniquely
colored wires for each station (Figure 6). A single controller can operate up to 128 2-Wire stations,
spread across a maximum of 70 physical 2-Station decoders.

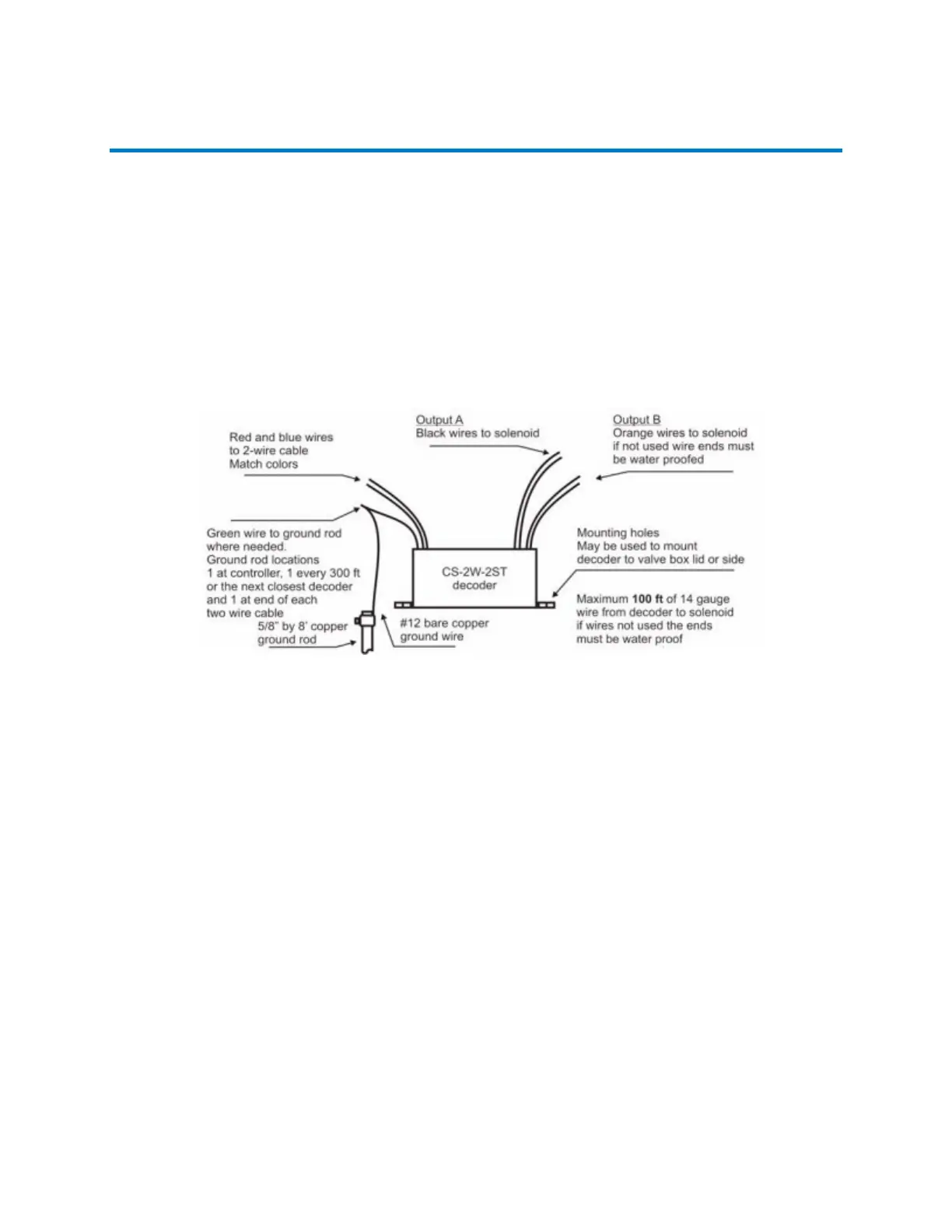

Figure 6: 2 Station 2-Wire Decoders
