CS3000 User’s Guide
32 Calsense
Assigning POCs to 2-Wire Decoders
POC decoders, like station decoders, need to be assigned to a POC. On systems with a bypass manifold,
this is also where the decoders are assigned to that bypass.
To edit the 2-wire POC Assignment Screen (Figure 22):
1. From Main Menu, navigate to Setup and select 2-Wire. The 2-Wire dialog displays.
2. Navigate to and select POC Assignment. POC Assignment menu displays.
3. Navigate to the desired POC Decoder by Serial Number and press SELECT.
4. Navigate to Is this POC Decoder in use? and use +/- to select Yes.
5. If this decoder is part of a Bypass Manifold, navigate to the setting and use +/- to select Yes.
Note: A minimum of two and a maximum of three decoders can be used to build a bypass
manifold.
6. When finished, press BACK to save changes, and return to Main Menu.

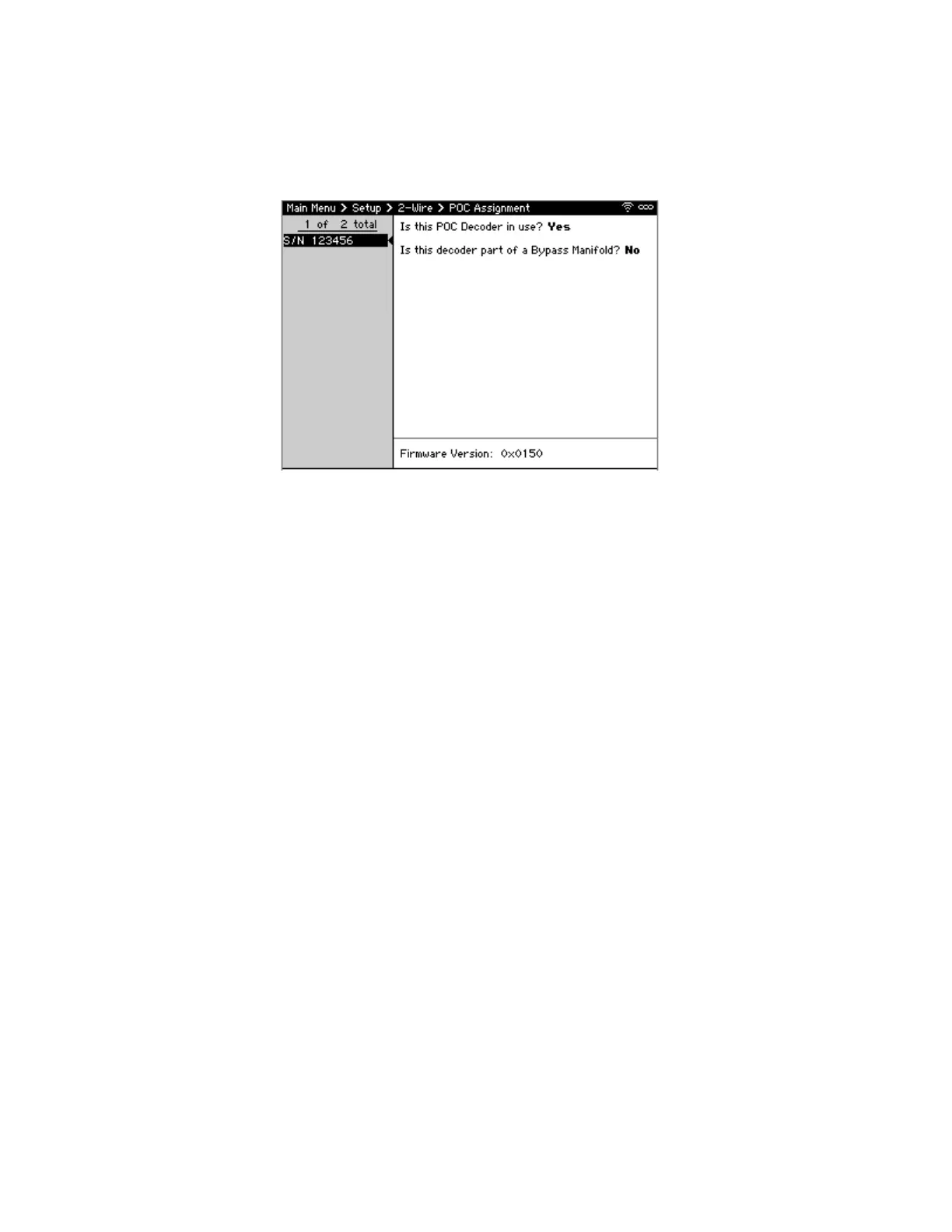

Figure 22: 2-Wire POC Assignment Screen
