CAME FROG series Installation Instructions

3.4 - Automatic Close & Activating Safety Photocells
FULLY ANTI-CLOCKWISE WILL APPROX. AUTOMATICALLY CLOSE THE GATE
AFTER 10 SECONDS AND FULLY CLOCKWISE WILL APPROX. CLOSE THE
GATE AFTER 80 SECONDS. A SENSIBLE SETTING IS ABOUT HALFWAY
(I.E 6 O’CLOCK POSITION) WHICH WILL AUTOMATICALLY CLOSE THE
GATES AFTER APPROX. 30 SECONDS.
6 O’CLOCK
TRIMMER
TCA

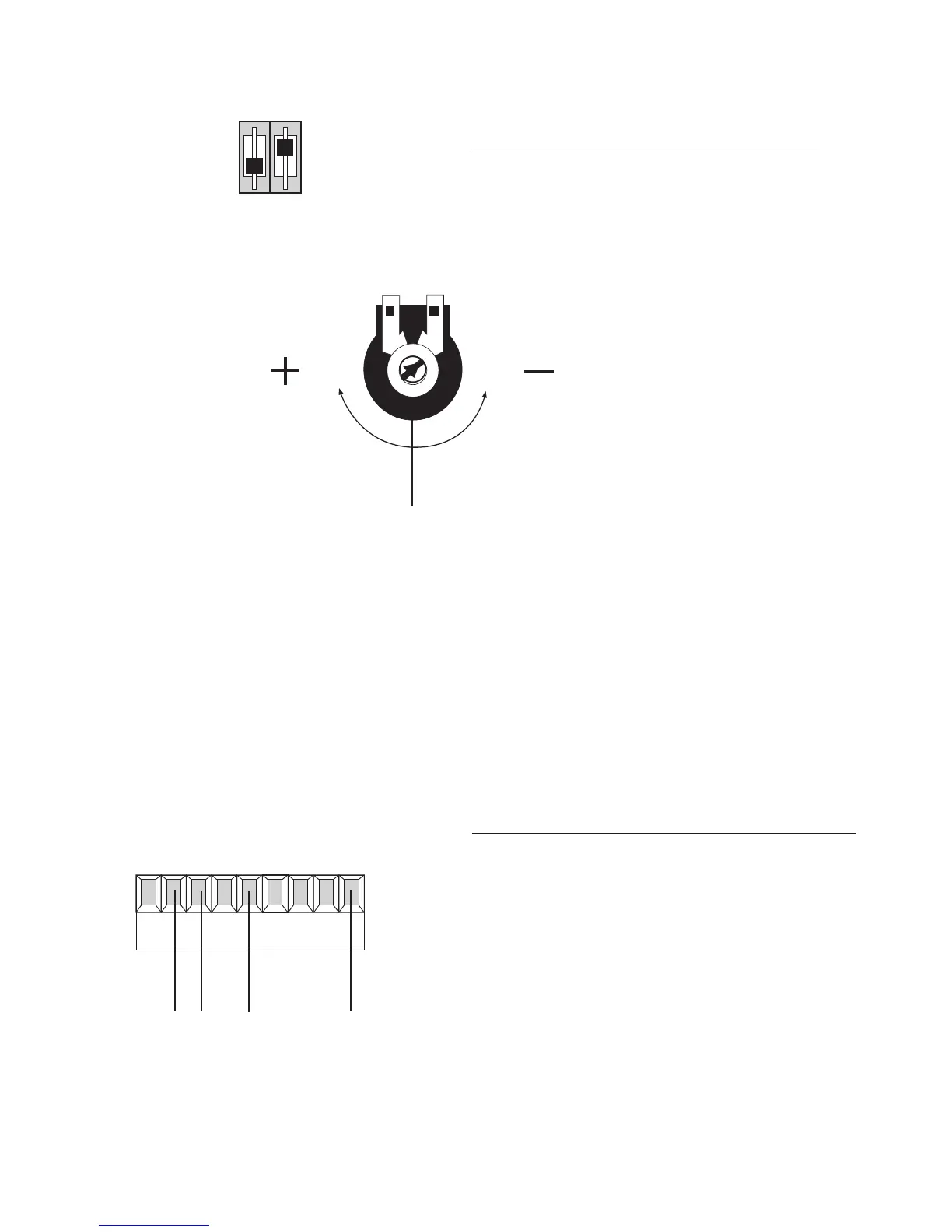

1. TO SELECT AUTOMATIC CLOSING,
SELECT DIPSWITCH 2 ON.
SET THE AUTOMATIC CLOSING TIME BY ADJUSTING POTENTIOMETER TCA
Fig 21
Fig 22
Fig 23
ON
OFF
1
1
2. FOR RE-OPENING DURING CLOSING.
REMOVE HARD WIRE LINK BETWEEN
2 & C1 AND INSERT SAFETY BEAM
WIRES AS SHOWN.
16
ES 10 11 1 2 3 5 7 C1
10 11 C NC

CAME FROG series Specifications

General

Motor Voltage	24 V DC
Max Gate Weight	800 kg
Duty Cycle	30%
Limit Switch	Yes
Power Supply	230 V AC
Safety Features	Obstacle detection
Type	Electromechanical underground gate opener
