CAME FROG series Installation Instructions

6
1.6 - Fitting the Gate Lock

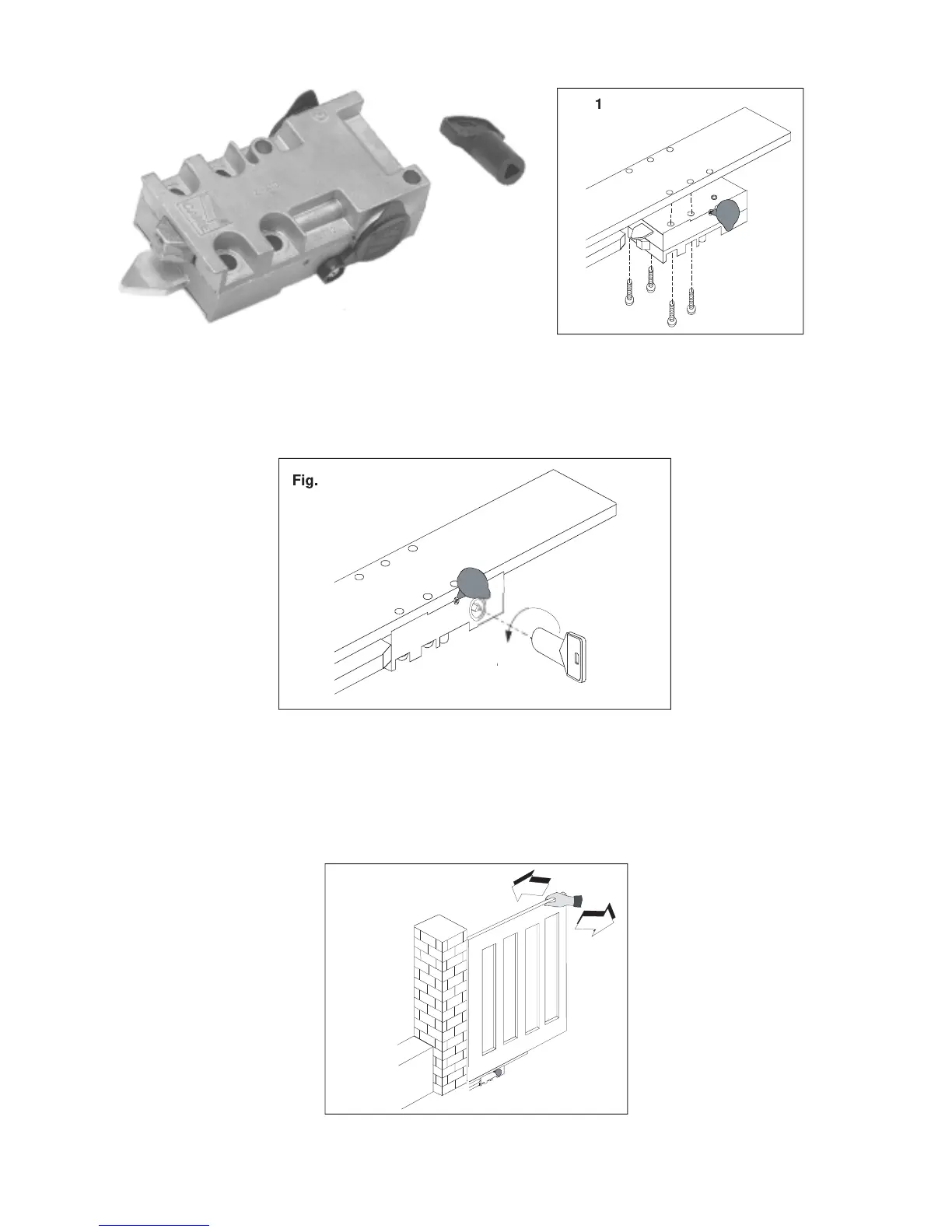

Secure the unlocking device to the FROG shoe with the 4 allen bolts provided.
To release the gate, raise the protective cap, insert the three sided key and turn it to activate the
mechanism. Simultaneously push and/or pull the gate. Remove the key and replace the protective cap.
To re-engage the gate, reposition the gate and the mechanism will automatically engage it.
Fig.
1
Fig.
2
Unloc
king
c
king
c
Fig.
3

CAME FROG series Specifications

General

Motor Voltage	24 V DC
Max Gate Weight	800 kg
Duty Cycle	30%
Limit Switch	Yes
Power Supply	230 V AC
Safety Features	Obstacle detection
Type	Electromechanical underground gate opener
