CAME FROG series Installation Instructions

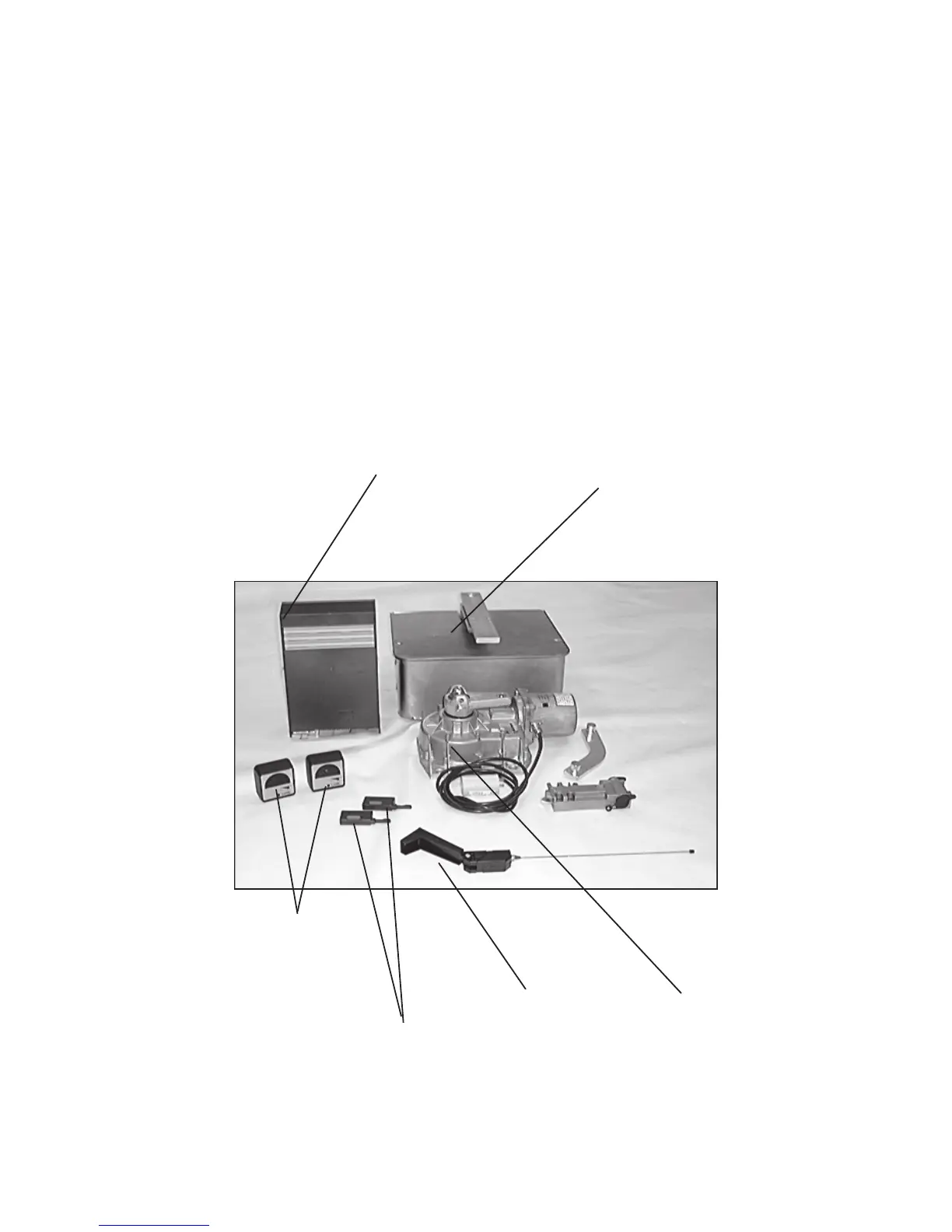

UNDERGROUND
GATE MOTOR
UNDERGROUND FOUNDATION
CASING WITH PIVOT ARM.
TUNED ANTENNA
Fig 26
1 CONTROL PANEL
1 FREQUENCY CARD
1 PAIR SAFETY
BEAMS
2 REMOTE CONTROL
TRANSMITTERS
Other functions available:
Automatic closing : The automatic closing timer is automatically activated at the
end of the opening cycle. The pre-set, adjustable automatic
closing time is automatically interrupted by the activation of
any safety system, and is deactivated after a STOP
command or in case of power failure.
“Operator present” function:
Gate operates only when the pushbutton is held down (the
radio control system is deactivated)
24

CAME FROG series Specifications

General

Motor Voltage	24 V DC
Max Gate Weight	800 kg
Duty Cycle	30%
Limit Switch	Yes
Power Supply	230 V AC
Safety Features	Obstacle detection
Type	Electromechanical underground gate opener
