CAME ZF1N110 User Manual

2
1
TS 5 C1 7 2 1 11 10 ES ES
TS 5 C1 7 2 1 11 10 ES ES
TS 5 C1 7 2 1 11 10 ES ES
U V W X Y E
CAME
p. 7 - Manual FA 0 0 679- E N v. 1- 12/2017 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice.

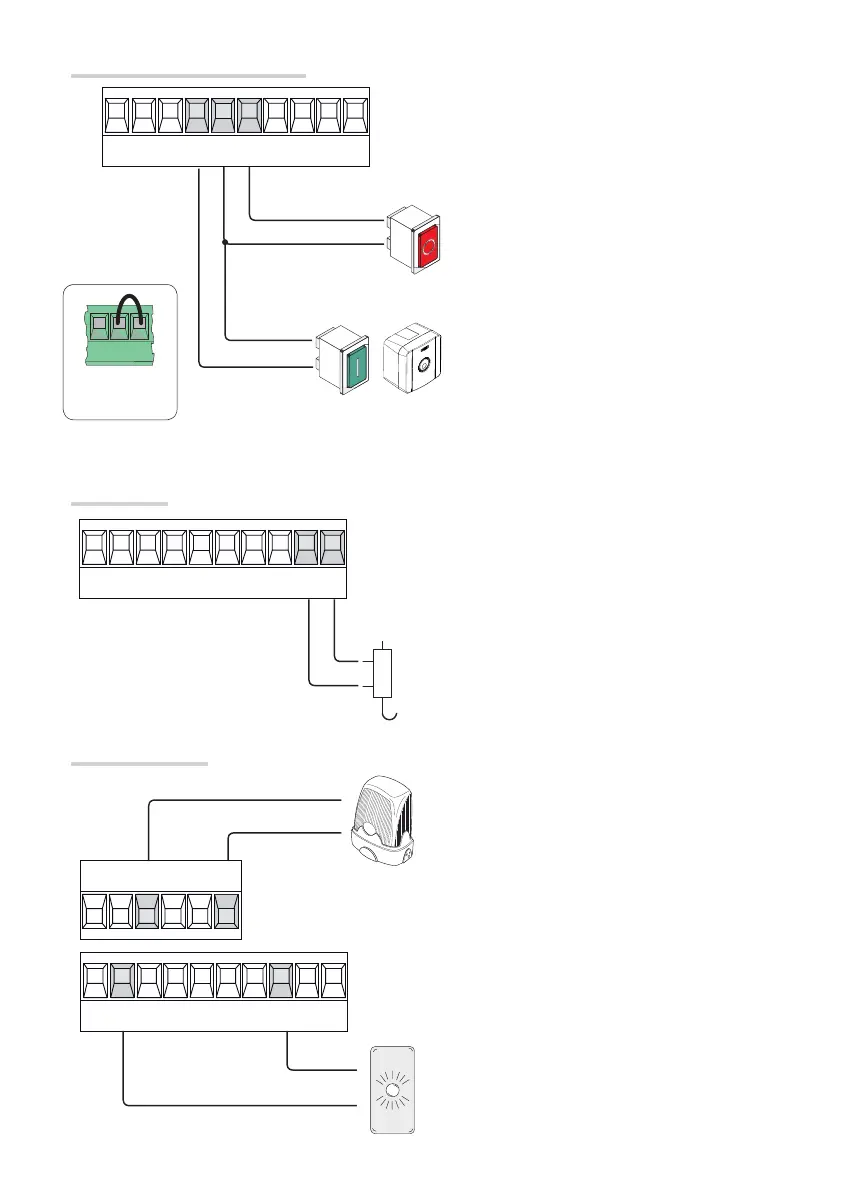

Terminal 1,
if unused
Gate-open signal output (contact rated for: 24 V AC
- 3 W max).
To signal that the gate is open.
It switches o when the gate is closed.
Output for connecting the fl ashing signal light.
(Contact rated for: 120 V or 230 V AC - 25 W max.).
Signaling devices
Electrolock connection at 12 V - Maximum power: 15
W
Electric lock
OPEN-CLOSE-INVERT function (step-step) from
control device (NO contact). Alternatively, by
setting DIP-switch 2 to ON, you can activate
the OPEN-STOP-CLOSE-STOP sequential
command.
STOP button (NC contact). For stopping the gate
while excluding automatic closing. To resume
movement press the control button or use
another control device.
If unused, short-circuit the contact.
Command and control devices
