2 06/2013 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

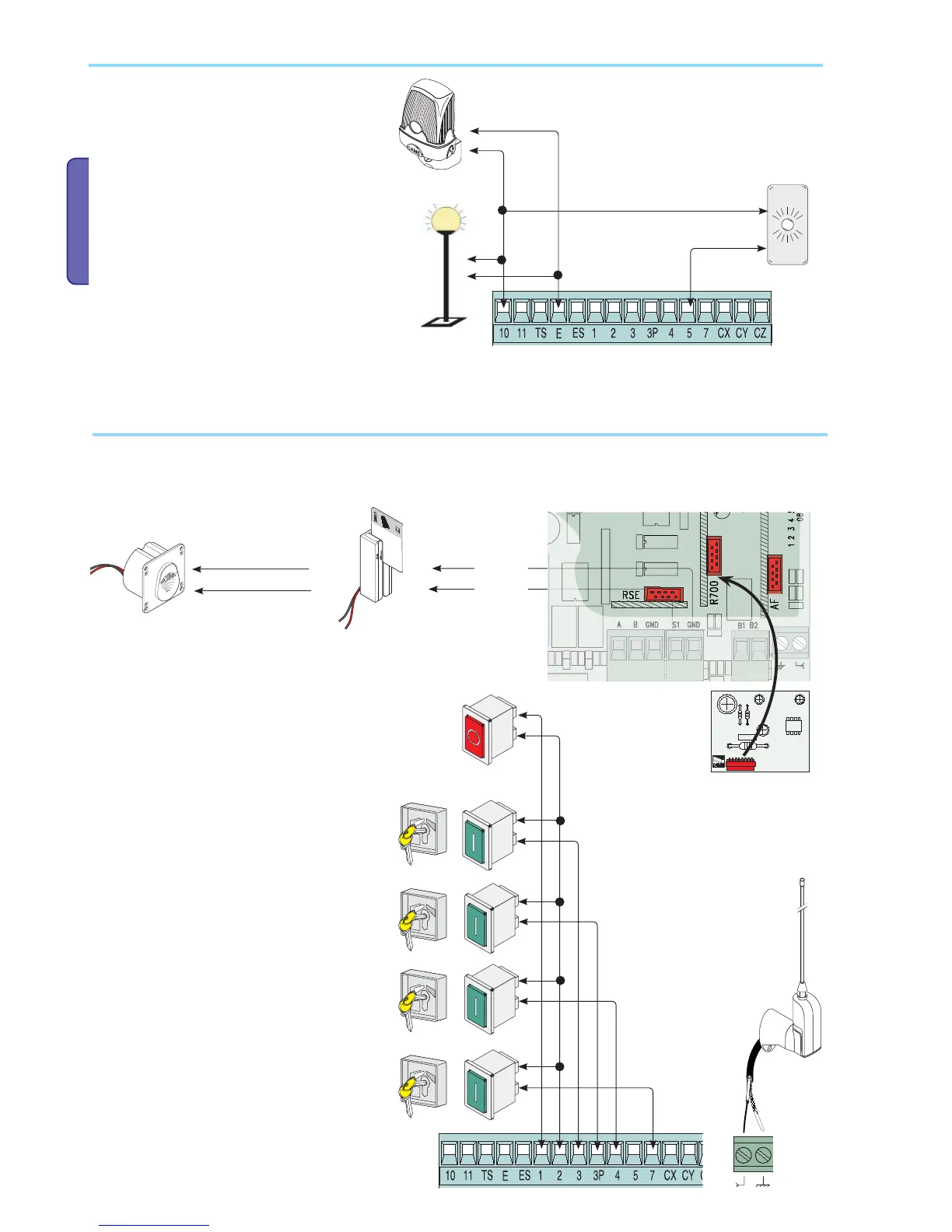

Signalling devices
Command devices
Stop button (N.C. contact) - Button to stop gate while
excluding the automatic closing cycle. For movement to
resume you must press the command button or transmitter
button.
N.B.: if contact is unused, select Disabled on the
“FUNCTIONS” menu.
Key selector and/or opening button (N.O. contact) -
Gate opening command.
Key selector and/or commands button (N.O.
contact) - Commands for opening and closing the
gate – pressing the button or turning the key-
switch, inverts the gate’s movement or stops it
depending on how it is set on the 2-7 command in
the “FUNCTIONS” menu.
Key selector and/or partial opening button (N.O.
contact) - Partial gate opening for pedestrian
access.
Key selector and/or closing button (N.O. contact) -
Gate closing command.
001TSP00 - Transponder sensor
N.B. : insert the (R700) coding board to have
the (TSP00) sensor or (LT001) card reader
recognised.
001LT001 - Magnetic card reader
Black
Red
Antenna with RG58
cable for the remote
control.
Indicator light when gate is open
(contact output: 24 V – 3 W max.).
Indicates that gate leaf is open, and
turns off when the gate is closed.
Courtesy lamp (Contact output: 24 V - 25 W max.) –
Auxiliary connection for suitably positioned external
lamp to increase lighting of the steering area. It remain lit
for a fi xed time of 5 minutes.
Cycle lamp (contact rating: 24 V – 25 W max.)
- Auxiliary connection of an outdoor lamp that can be freely
positioned, for additional lighting of the driveway.
It stays on from the moment the gate begins opening until
it is fully closed (including the automatic closing time).
If automatic closing is not activated, the lamp stays on
only during movement.
Movement flashing light (Contact output: 24
V. - 25 W max.)
Flashes during the gate’s opening and
closing phases.
