Campbell CR1000X User Manual

2. Wiring panel and terminal
functions

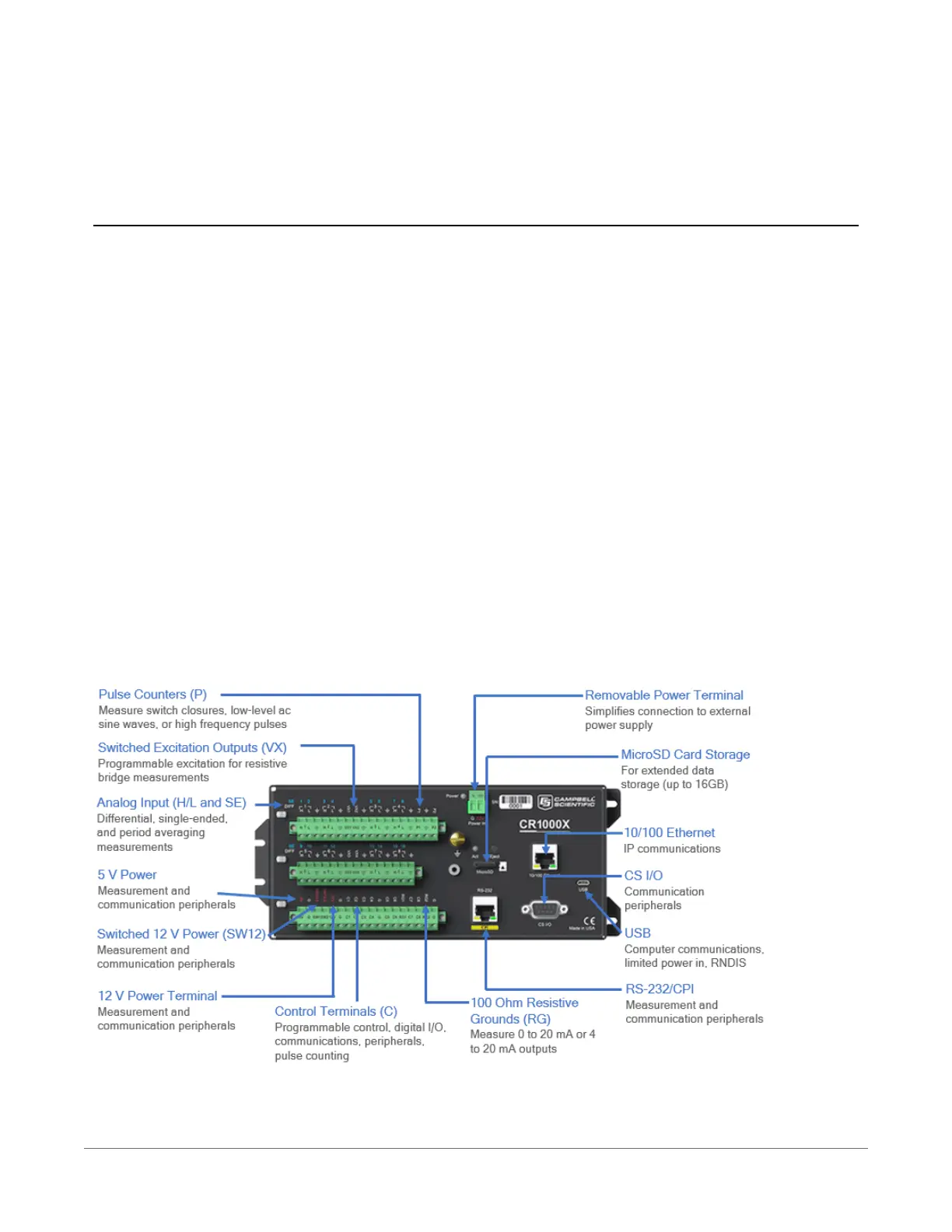

The CR1000X wiring panel provides ports and removable terminals for connecting sensors, power,
and communications devices. It is protected against surge, over-voltage, over-current, and
reverse power. The wiring panel is the interface to most datalogger functions so studying it is a
good way to get acquainted with the datalogger. Functions of the terminals are broken down
into the following categories:
l Analogue input
l Pulse counting
l Analogue output
l Communications
l Digital I/O
l Power input
l Power output
l Power ground
l Signal ground
2. Wiring panel and terminal functions 5
