Canon Canovision8 E50E - Gear Train

2.Operation in Each Section

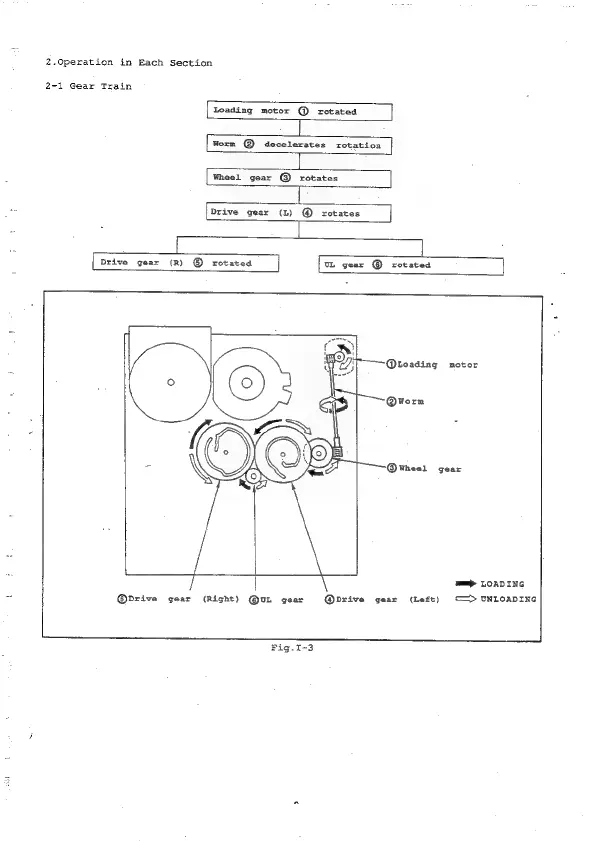

2-1 Gear Train
Leading motor @ rotated
Worm @ decelerates rotation
Wheel gear @ rotates
Drive gear (L) @ rotates
Drive gear (R) © rotated i [ou gear © rotated
/ | \
ee @Prive gear (Right) ©uL gear @Dzrive gear (Left) > UNLOADING
@toading motor
@wWorm
@ Wheel gear
mp LOADING
Fig.I-3
