Canon Canovision8 E50E - T Brake, S Brake

2-4 T Brake; S Brake
Drive gear (R) @ rotated
Brake releasing arm @) moves
along cam
t brake @ moves for
releasing T reel breaking
$ brake © moved for
releasing S reel breaking
@bDrive gear
(Right)
@Brake
releasing arm
r reel}
@ brake
@s brake
mmp> Releasing
=> Braking
S reel

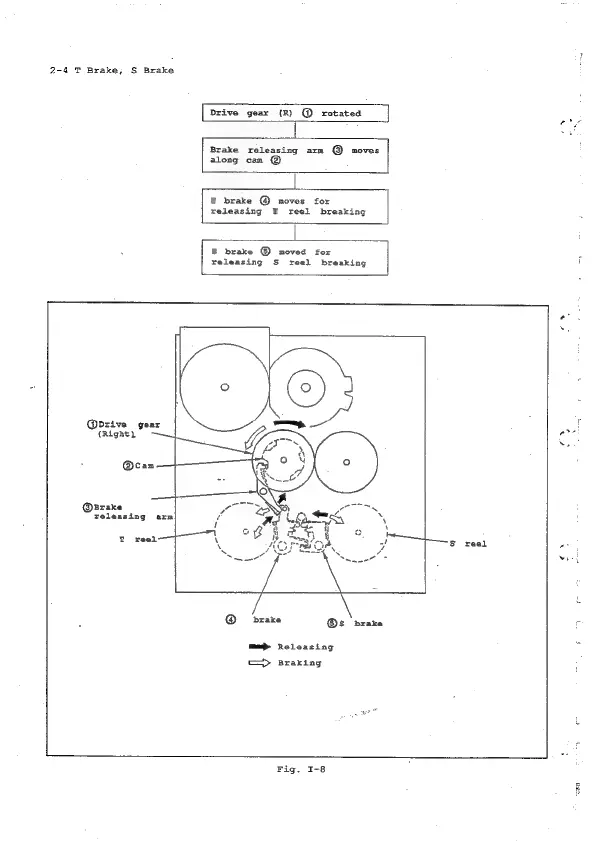

Fig. I-8
