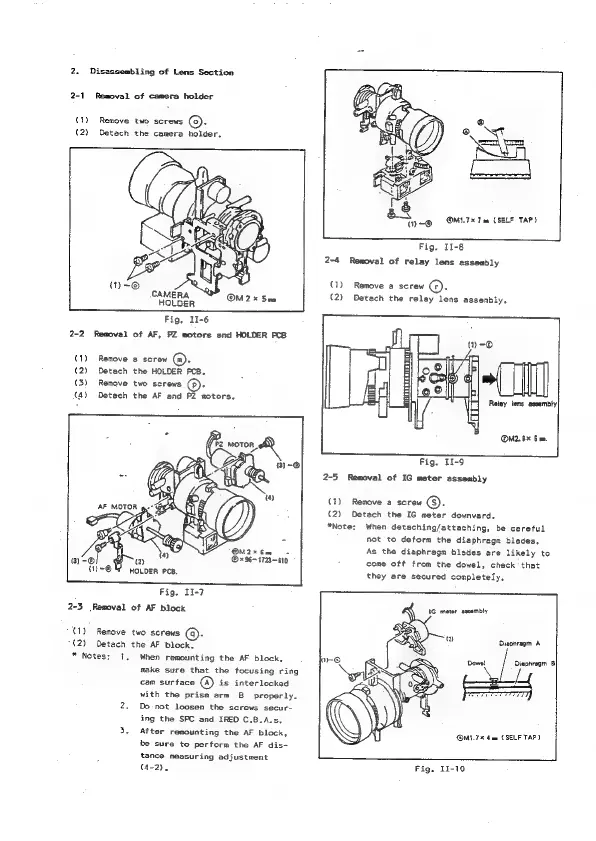

Canon Canovision8 E50E - Disassembling of Lens Section; Removal of 1 G Meter Assembly; Removal of AF Block; Removal of AF C.B.A, and Camera Holder

2. Disassembling of Lens Section
2-1 Removal of camera holder
(1) Remove two screws ().
(2) Detach the camera holder.
HOLDER
Fig, 11-6
2-2 Removal of AF, PZ motors and HOLDER PCB
(1) Remove a screw (@).
(2) Detach the HOLOER PCB.
(3) Remove two screws .
(4) Detach the AF and PZ motors.
@x 96-1723~610
{~6\ Hover Pcs.
Fig. 11-7
2-3 Removal of AF block
(1) Remove two screus
“(2) Detach the AF block:
* Notes: 1, When remounting the AF block,
make sure that the focusing ring
cam surface (A) is interlocked
with the prism arm B properly.
2. Do-not loosen the screws secur-
ing the SPC and IRED C.8.A.s.
3. After remounting the AF block,
be sure to perform the AF dis-
tance measuring adjustment
(4-2),
a&
TAP) ty—-@ OMTT* Tm (SELF
Fig. II-8
2-4 Rewoval of relay lens assembly
(1) Remove a screw ().
(2) Detach the reley lens assembly.
ONZ.6% 6m.
Fig. LI-9
2-5 Removal of IG meter assembly
(2) Remove a screw G).
(2) Detech the IG meter downward,
*Note: When detaching/attaching, be careful
not to deform the diaphragm blades,
As the diaphragm blades are likely to
come off from the dowel, check that
they are secured completely,
1S moter essembly
(2) Diephragm A
ue@ 4 LSS Dows! ea c)
PSN
@M1.7x 4mn (SELF TAP)
Fig. 11-10
