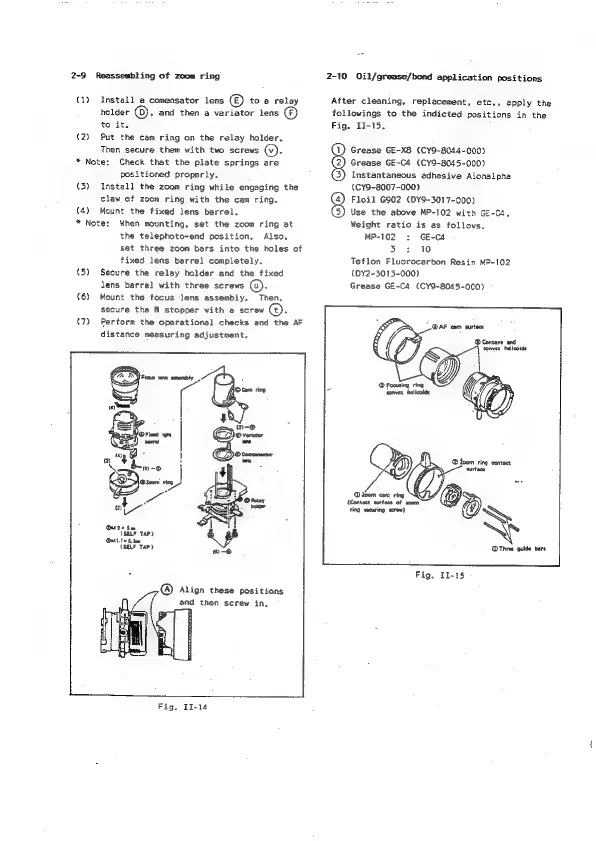

Canon Canovision8 E50E - Oil;Grease;Bond Application Positions; Reassembling of Zoom Ring

2-9 Reassembling of zoom ring
(1) Install 2 comensator lens (E) to a relay
holder ()
to it.
(2) Put the cam ring on the relay holder.
Then secure them with two screws (v).
* Note: Check that the plate springs ere
positioned properly.
(3) Install the zoom ring while engaging the
claw of zoom ring with the cam ring.
(4) Mount the fixed lens barrel.
* Note: When mounting, set the zoom ring at
the telephoto-end position. Also,
set three zoom bers into the holes of
fixed lens barrel completely.
(5) Secure the relay holder and the fixed
lens barrel with three screws @).
(6) Mount the focus lens assembly. Then,
secure the N stopper with a screw (¢).
(7) Perform the operational checks and the AF
distance measuring adjustment.
» and then a variator lens
@® Align these positions
and then screw in.
Fig. [I-14
2-10 Oil/grease/bond application positions
After cleaning, replacement, etc., apply the
followings to the indicted positions in the
Fig. II-15.
Grease GE-X8 (CY9-8044-000)
Grease GE-C4 (CY9-8045-000)
Instantaneous adhesive Alonaipha
«CY9-8007-000)
Floil 6902 (DY9-3017-000)
Use the above MP-102 with GE-C4.
Weight ratio is as follows.
MP-102 : GE-C4
3: 10
Teflon Fluorocarbon Resin MP-102
(DY2-3015-000)
Grease GE-C4 (CY9-8045-000)
© G8O
® Focusing ring
convex. belicoids
Three guide bere
