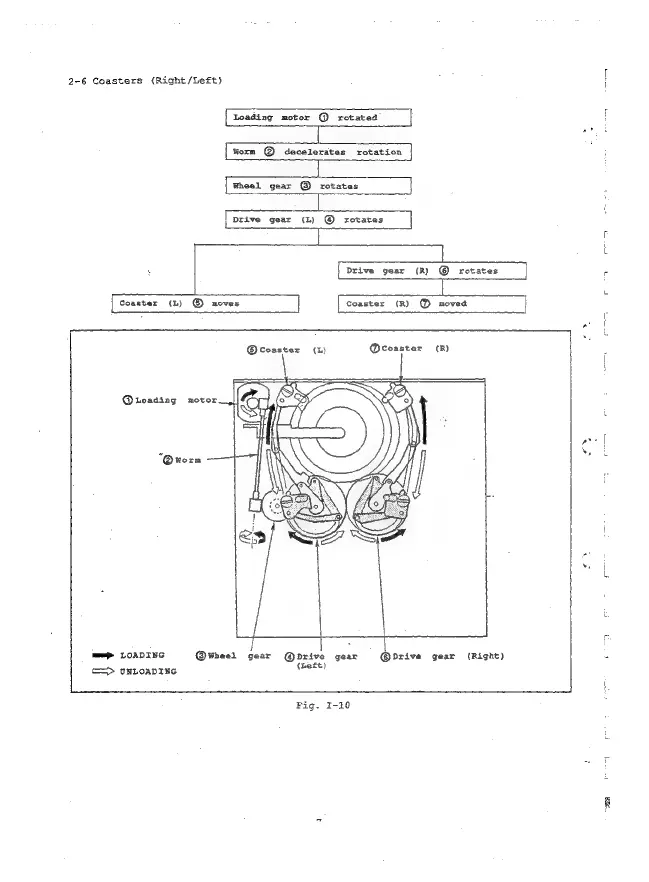

2-6 Coasters (Right/Left)
Loading moter @ rotated
[
worm @ decelerates rotation
;
Wheel gear @ rotates
Drive gear (L) @ xetates
Drive gear (x) ©
rotates
Coaster (L) © moves | Coaster (R) @ moved
@toading motor
“@worm
@®coaster (1) @coaster (R)
A
me LOADING @Wheel gear @obrive gear @Prive gear (Right)
Left
=> UNLOADING 7 :
Fig. I-10
