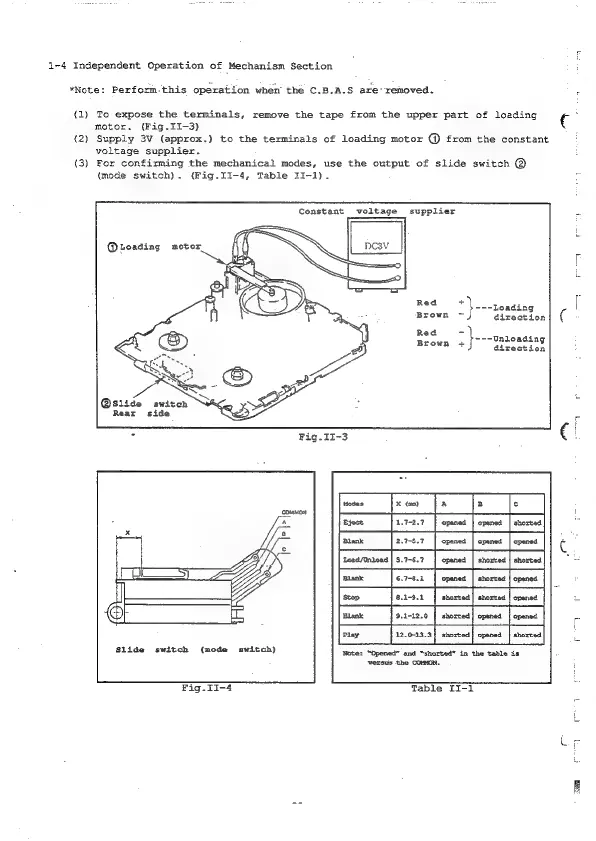

1-4 Independent Operation of Mechanism Section
*Note: Perform-this operation when’ the C.B.A.S are-removed.
(1)
{2)
(3)
To expose the terminals, remove the tape from the upper part of loading
motor. (Fig.II-3)
Supply 3V (approx.) to the terminals of loading motor @ from the constant
voltage supplier.
For confirming the mechanical modes, use the output of slide switch @
(mode switch). (Fig.II-4, Table II-1).
Constant voltage supplier
@toading motor
Pe
Rex } ---teacing
Brown ~ direction
Red 7}
---Unloading
BEORE! direction
@slide switch
Rear side
© Fig.II-3
Slide switch (mode switch)
Nete: “Opened” and “shorted” in the table is
versus the COMMON.
Pig.II-4 Table II-1
