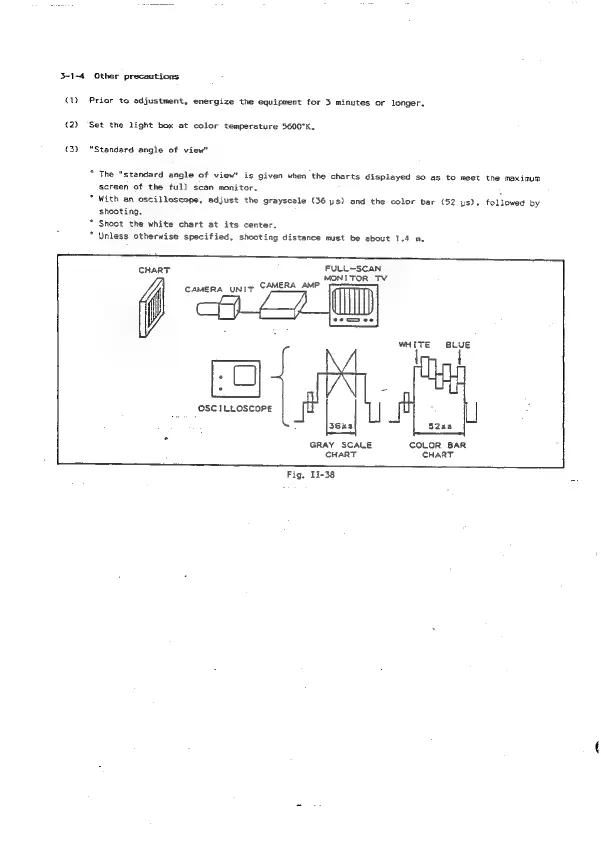

3-1-4 Other precautions
(1) Prior to adjustment, energize the equipment for 3 minutes or longer.
(2) ‘Set the light box at color temperature 5600°K.
(3) “Standard angle of view"
The
“standard
angle
of
view"
is
given
when
the
charts
displayed
so as
to
meet
the
maximum
screen
of
the
full
scan
monitor.
With an oscilloscope, adjust the grayscale (36 us) end the color bar (52 ys), followed by
shooting.
Shoot the white chart at its center.
Unless otherwise specified, shooting distance must be about 1.4 m.
CHART FULL—-SCAN
Ap MONITOR TV
OSCILLOSCOPE
3Sus S2as
GRAY SCALE COLOR BAR
CHART CHART
Fig, 1i-38
