Canon iR2020 Series Service Manual

Chapter 4
4-11
F-4-19

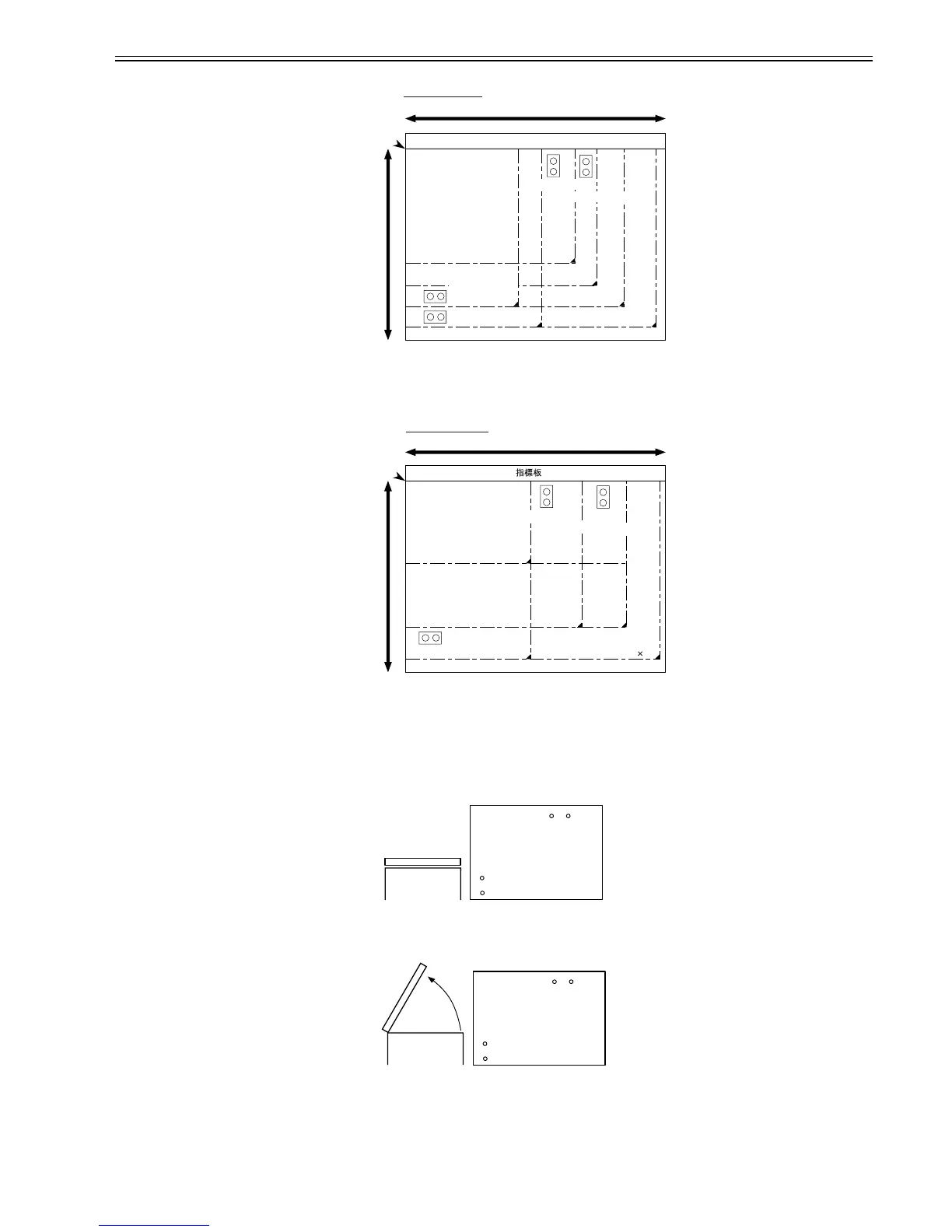

4.3.4.2 Outline of Original Size Detection
0010-4256
iR2020 / / iR2020i
- In the BOOK mode
One sheet of original (A4R) is set and the copyboard cover (or ADF ) is closed.
1) Standby state
Original sensor: Turns off.
F-4-20
2) The copyboard cover opens (at an angle of more than 30o).
Original sensor: Turns off.
F-4-21
3) The copyboard cover is closed (at an angle of 30 deg).
Original sensor: Turns on and original size identification process 1 is performed.
B5
A4R
A4
STMT-R
LTR-R
LTR 11"
17"
LGL
B5R
Index plate
Original sensor 3
B4
A3
AB-Configration
Inch-Configration
Original sensor 5
Upper left corner
of original
Upper left corner
of original
Vertical scan direction Vertical scan direction
Horizontal scan direction
Horizontal scan direction
Original sensor 1
Original sensor 2
Original sensor 4
Original sensor 3
Original sensor 1
Reader unit
Copyboard cover
Original sensor 3
Copyboard glass
Original sensor 4
Original sensor 2
Original sensor 1
Original sensor 3
Original sensor 4
Original sensor 2
Original sensor 1
