Canon iR2020 Series Service Manual

Chapter 8
8-21

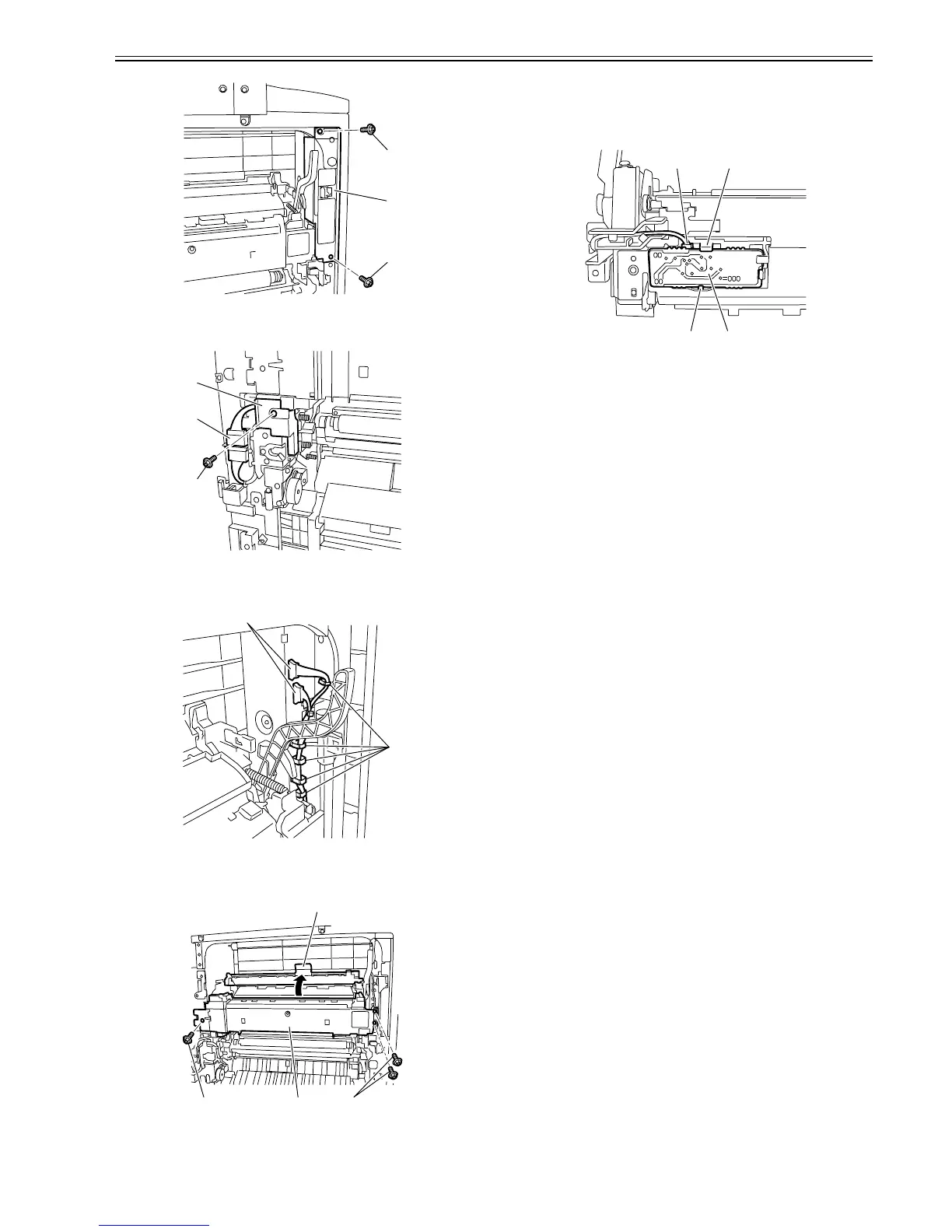

F-8-95
2) Remove the screw [1], and then detach the heater harness cover [2].
Disconnect the connector [3].
F-8-96
3) Disconnect the two connectors [1], and then release the fixing unit harness
from the wire saddle [2].
F-8-97
4) Raise the delivery upper guide [1]. Remove the three screws [2], and then
remove the fixing unit [3].
F-8-98
8.4.5.6 Removing the Fixing Film Sensor
0010-9922
iR2016J / iR2016 / iR2020 / / iR2016i / iR2020i
1) Disconnect the connector [1], release the two hooks [2], and then remove
the film sensor [3].
F-8-99
[2]
[1]
[1]
[3]
[2]
[1]
[2]
[1]
[2] [3] [2]
[1]
[2] [3]
[1] [2]
