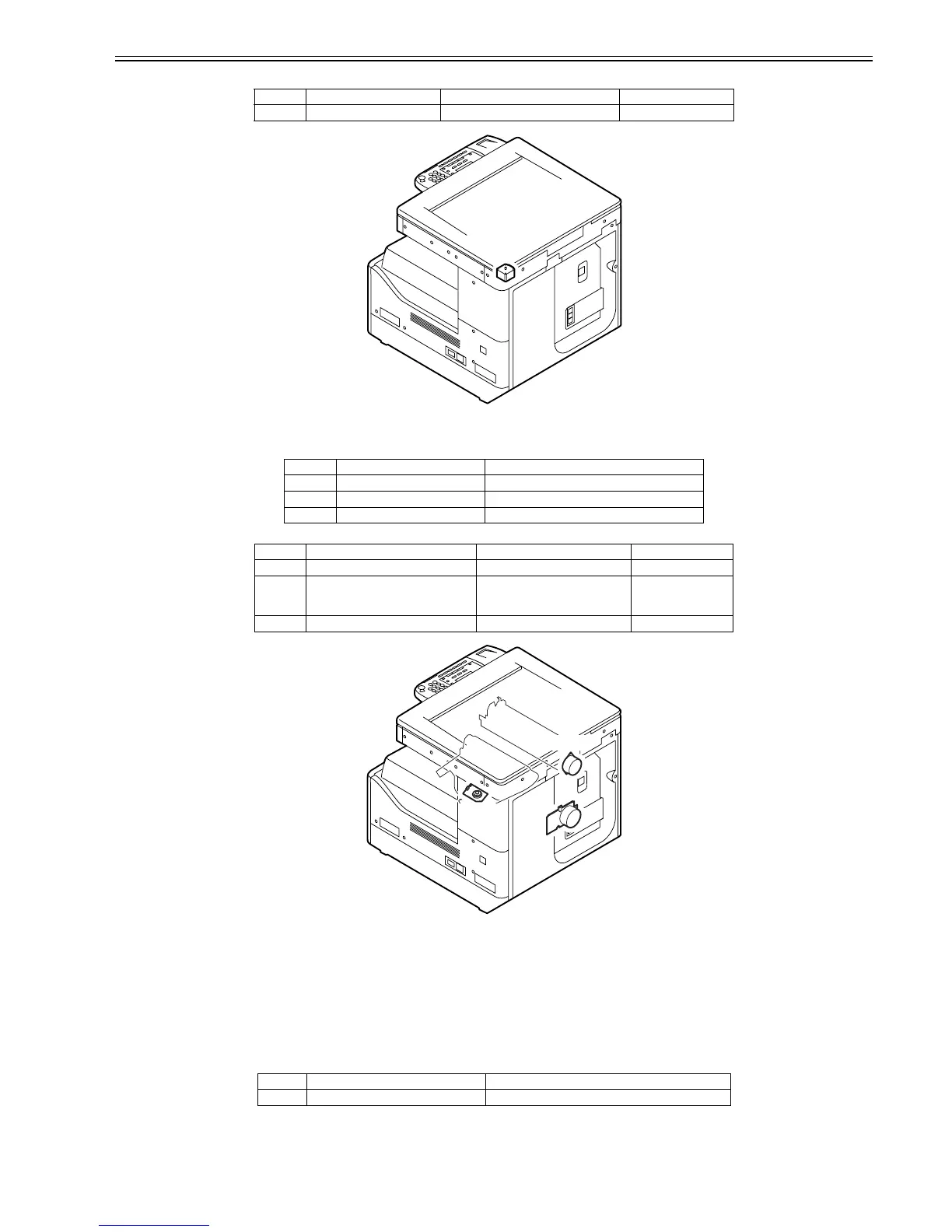

Canon iR2020 Series Service Manual

Chapter 12
12-3
T-12-4
F-12-2
<Printer Unit>
T-12-5
T-12-6
F-12-3
12.2.3 Fan
12.2.3.1 List of Fans
0011-2722
iR2016J / iR2016 / iR2020 / / iR2016i / iR2020i
<Reader Unit>
The reader unit has no fan.
<Printer Unit>
T-12-7
Symbol Part No. Reader controller PCB Error
M401 FK2-1066 J409
Symbol Name Function
M201 Fixing motor Drives the fixing unit.
M203 Polygon motor Drives the laser scanner.
M204 Main motor Drives the main parts of the printer.
Symbol Part No. DC controller PCB Error
M201 FK2-1067 J202 E007, E808
M203 Scanner unit
FM2-3383(iR2016J/2020J)
FM2-3384(iR2016/2016i/2020/2020i)
J205
M204 FK2-1080 J208 E010
Symbol Name Function
FM1 Heat discharge fan Cools fixing unit.
M401
M204
M201
M203
