Canon iR2020 Series Service Manual

Chapter 7
7-1
7.1 Construction
7.1.1 Specifications/Configuration/Operation Methods
0010-4855
iR2016J / iR2016 / iR2020 / / iR2016i / iR2020i
Functions and operation methods of the pickup/feeding system are as follows:
T-7-1
7.1.2 Locations of Main Units
0011-0878
iR2016J / iR2016 / iR2020 / / iR2016i / iR2020i
Locations of main units of the pickup/feeding system are shown blow.

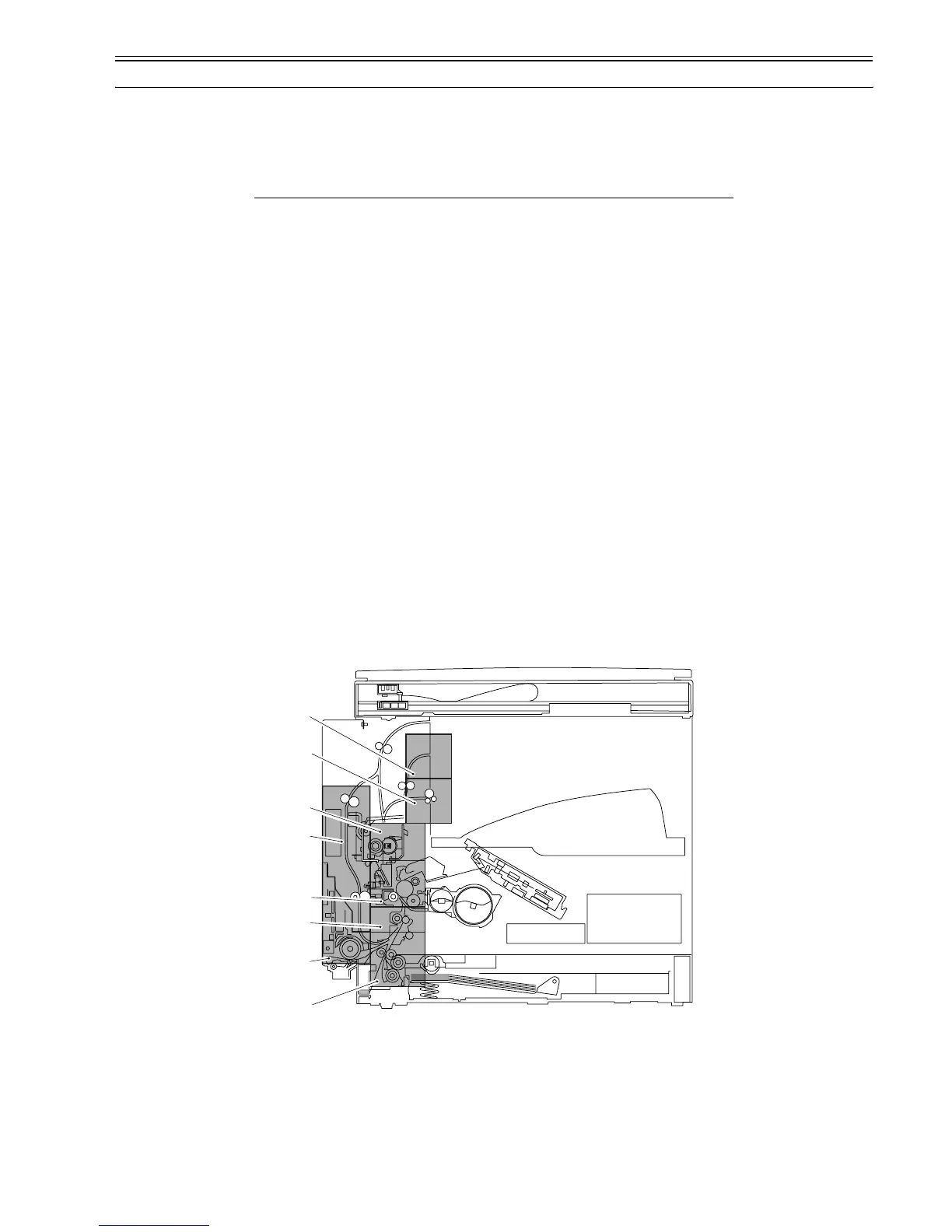

F-7-1
[1] Pickup assembly
[2] Manual feed pickup assembly
[3] Registration roller
[4] Transfer assembly
[5] Duplex print paper feed assembly(option)*1
[6] Fixing assembly
[7] First delivery assembly
[8] Second delivery assembly(option)
*1 This comes standard with the iR2020i/iR2016i (for USA).
Item Function/Operation method
Pickup method Cassette Clow retard
Multi manual feed tray Duplo separation
Paper stack Cassette Plain Paper 300Sheets(64g/m2)
260Sheets(75g/m2)
250Sheets(80g/m2)
125Sheets(90g/m2)
Multi manual feed tray Plain paper
Large 50Sheets(64g/m2)*1
Small 100Sheets(64g/m2)
Large 50Sheets(75g/m2)
Small 80Sheets(75g/m2)
Large 50Sheets(80g/m2)
Small 80Sheets(80g/m2)
Large 50Sheets(90g/m2)
Small 50Sheets(90g/m2)
Thick Paper 50Sheets(105g/m2)
50Sheets(128g/m2)
Label sheet 1Sheets
OHP 50Sheets
Envelope 10Sheets
Postcard 40Sheets
Paper size Setting Cassette Set by user
Multi manual feed tray Set by user
Delivery option Finisher-U1
Inner 2Way Tray-E1
Pickup option Cassette Feeding Module-J1 *2
Cassette Feeding Module-K1
*1 Large:more than B4/LGL,Small:less than B4/LGL
*2 Option only for the iR2016 series
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
