Canon iR2020 Series Service Manual

Chapter 8
8-15

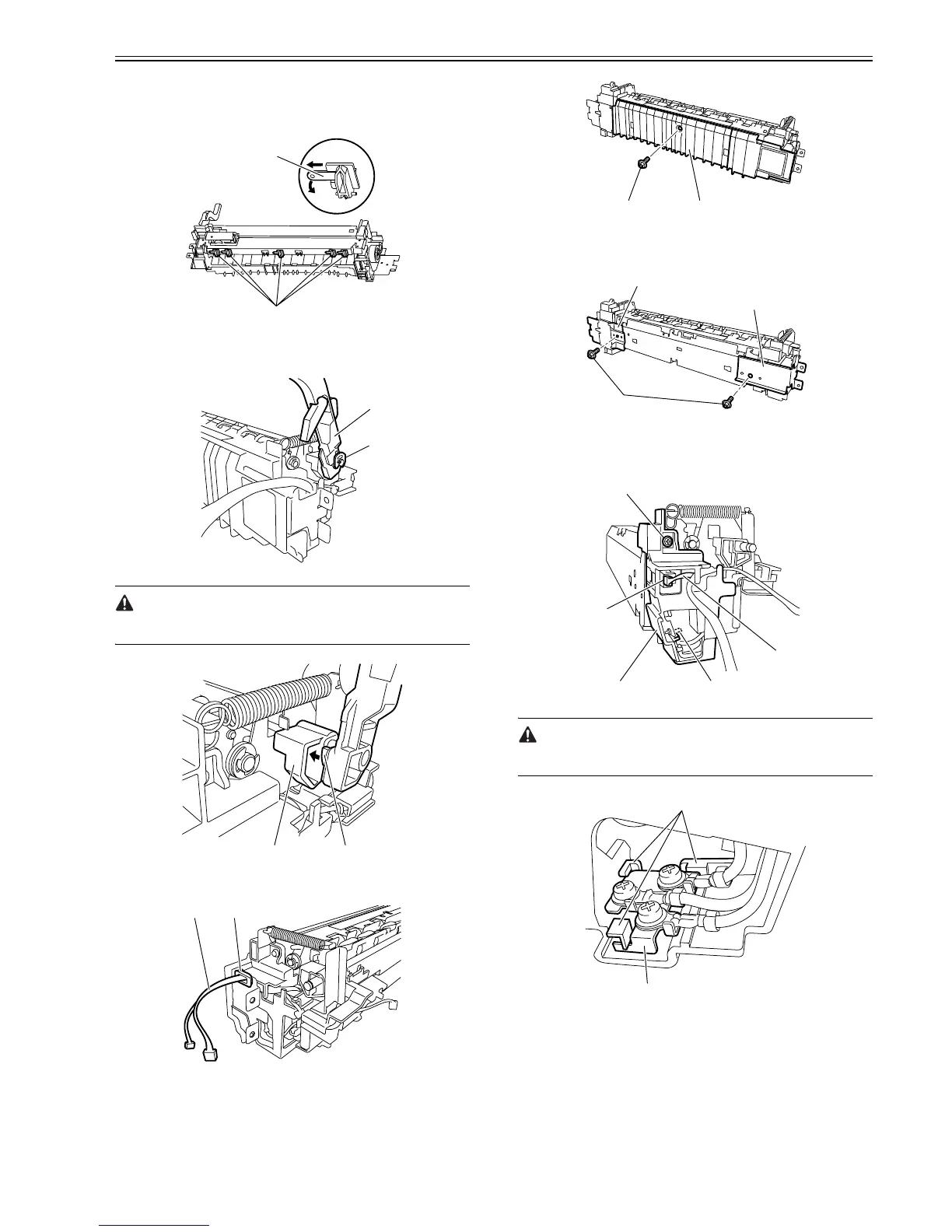

8.4.3.6 Removing the Fixing Film Unit
0010-9928
iR2016J / iR2016 / iR2020 / / iR2016i / iR2020i
1) Release the hooks [1], and then remove the spur unit [2] by sliding it.
F-8-55
2) Remove the resin ring [1], and then remove the fixing pressure release
lever [2].
F-8-56
When installing the fixing pressure release lever, check that the rib [1] of the
lever is inside the pressure block [2].
F-8-57
3) Release the fixing unit harness [2] from the wire saddle [1].
F-8-58
4) Remove the screw [1], and then remove the fixing paper guide [2].
F-8-59
5) Remove the two screws [1], and then remove the right side stay [1] and
left side stay [2].
F-8-60
6) Disconnect the connector [1], and then disconnect the sensor harness [2].
Remove the screw [3], release the hook [4], and then remove the sensor
holder [5].
F-8-61
When installing the electrode plate [1], place it under the three claws [2] as
shown below.
F-8-62
7) Remove the ground cable [1] from the holder, and then free the fixing unit
AC harness.
[1]
[2]
[2]
[1]
[1][2]
[1][2]
[1] [2]
[1]
[3]
[2]
[5]
[1]
[3]
[4]
[2]
[2]
[1]
