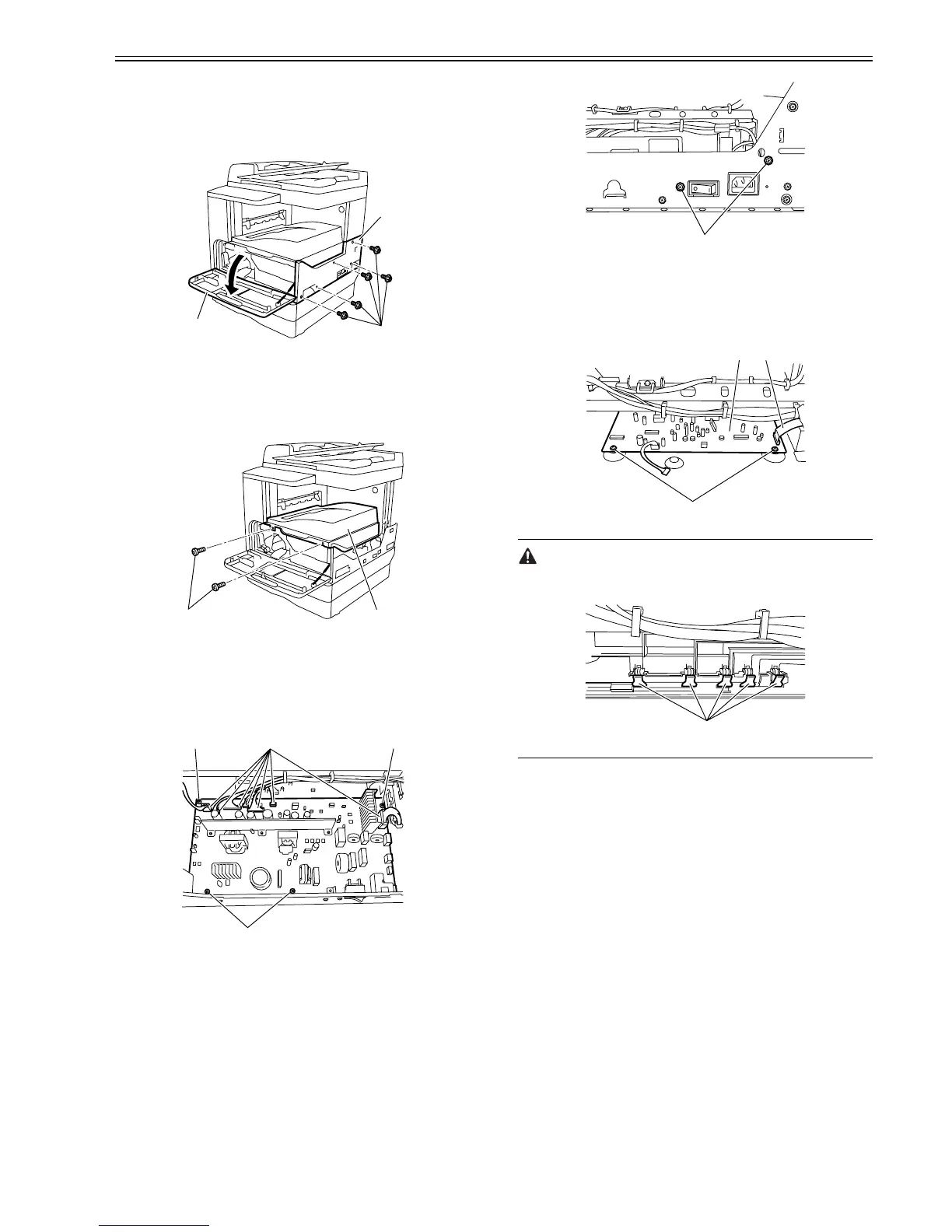

Chapter 9
9-15
9.4.7.2 Removing the Right Cover (Lower)
0010-9972
iR2016J / iR2016 / iR2020 / / iR2016i / iR2020i
1) Open the front cover.
2) Remove the five screws [1]. Remove the two hooks [2], and then detach
the right cover (lower) [3].
F-9-69
9.4.7.3 Removing the Delivery Tray
0010-9973
iR2016J / iR2016 / iR2020 / / iR2016i / iR2020i
1) Remove the two screws [1], and then detach the delivery tray [2].
F-9-70
9.4.7.4 Removing the Main Power Supply PCB
0010-9974
iR2016J / iR2016 / iR2020 / / iR2016i / iR2020i
1) Remove the connector [1] and screw [2], and then remove the power
supply PCB [3].
F-9-71
F-9-72
9.4.7.5 Removing the HVT PCB
0010-9975
iR2016J / iR2016 / iR2020 / / iR2016i / iR2020i
1) Remove the connector [1] and screw [2], and then remove the HVT PCB.
F-9-73
When installing the HVT PCB, check that the contacts on the high voltage
electrode plate [1] touch the contacts on the PCB.
F-9-74
9.4.8 Fixing Heat Discharge Fan
9.4.8.1 Removing the Fixing Heat Discharge Fan
0011-0419
iR2016J / iR2016 / iR2020 / / iR2016i / iR2020i
1) Open the left door until it stops.
2) Remove the four screws [1], and then remove the transfer/registration unit
[2].
[2]
[3]
[1]
[1] [2]
[1]
[2]
[2] [2]
[2]
[2]
[1][3]
[1]
