COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR2200/iR2800/iR3300 REV.0 MAR. 2001
CHAPTER 4 IMAGE FORMATION SYSTEM
4-24 P
8.2 Monitoring the Waste Toner Case
The machine checks the waste toner case in reference to two levels.
The amount of waste toner inside the waste toner case is monitored by the waste toner
case full sensor (S2); the sensor is a pair of photosensors (light-emitting unit piece and
light-receiving piece). The machine will assume that the waste toner case has become full
when waste toner blocks the light between the two photosensors.
The DC controller PCB checks the waste toner case full sensor when the power is tuned
on and at time of delivery; it will assume a “waste toner full warning” after making a total of
100 prints after the waste toner case has become full, thereby indicating the Waste Toner
Case Full message on the control panel.
After the message Waste Toner Case Full is displayed in the control panel, the machine
will indicate 'E019' in its control panel if the case remains full upon generating about 2000
prints (cumulative).
If the waste toner case is not set, the light-blocking plate will block the light between the
photosensors, causing the Waste Toner Case Full message to appear.
Memo
The light between the photosensors is not visible to the eye.

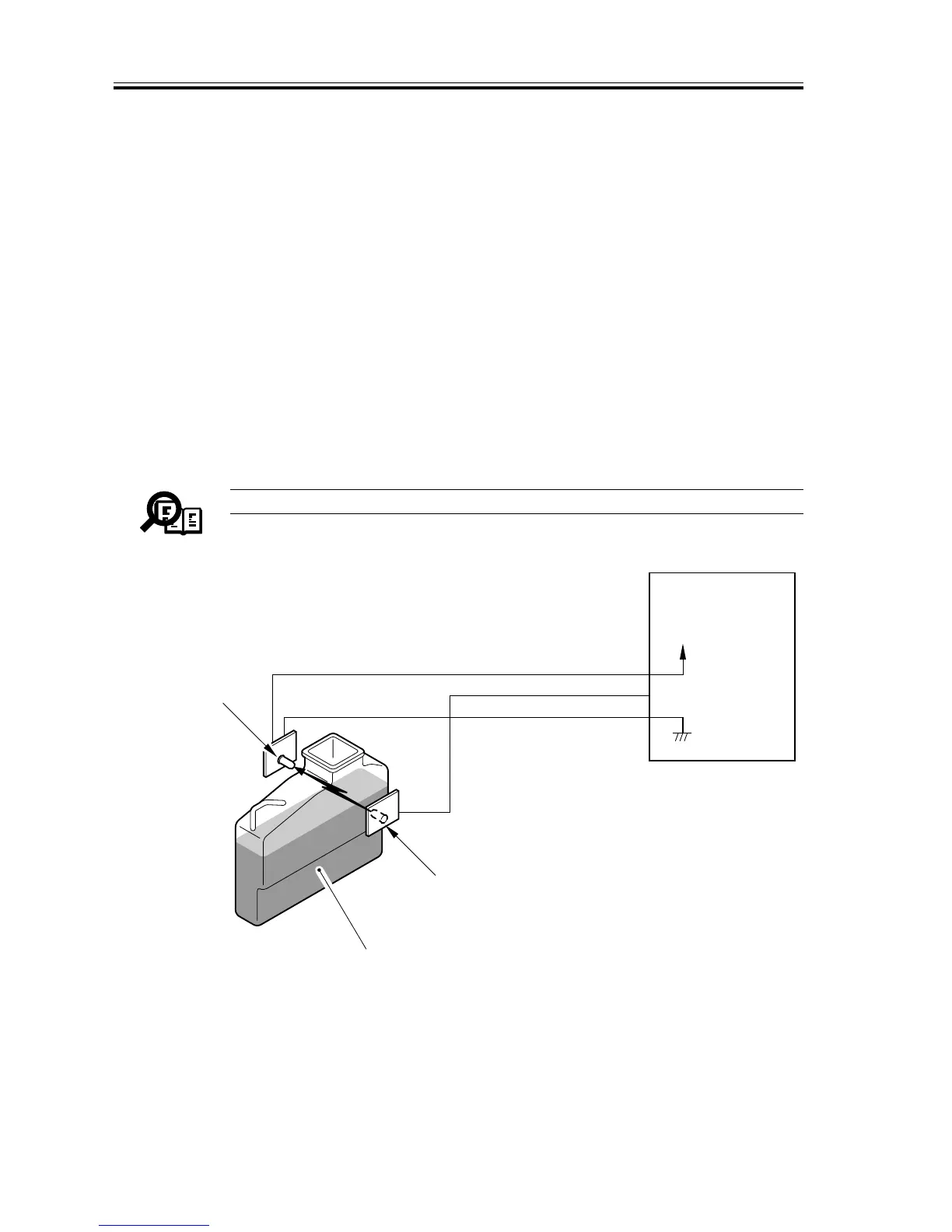

F04-802-01
DC controller PCB
J311-B7
-B9
-B8
Waste toner case full signal
Waste toner case
full sensor
(light-emitting)
Waste toner case
full sensor
(light-receiving)
+5V
Waste toner case

Canon iR2200 Specifications

General

Print Technology	Laser
Print Speed	22 ppm
Max Paper Size	A3
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Network Connectivity	Optional
Copy Speed	22 cpm
Scanner Type	Flatbed
Max Print Resolution	600 x 600 dpi
Zoom Range	25% - 400%
